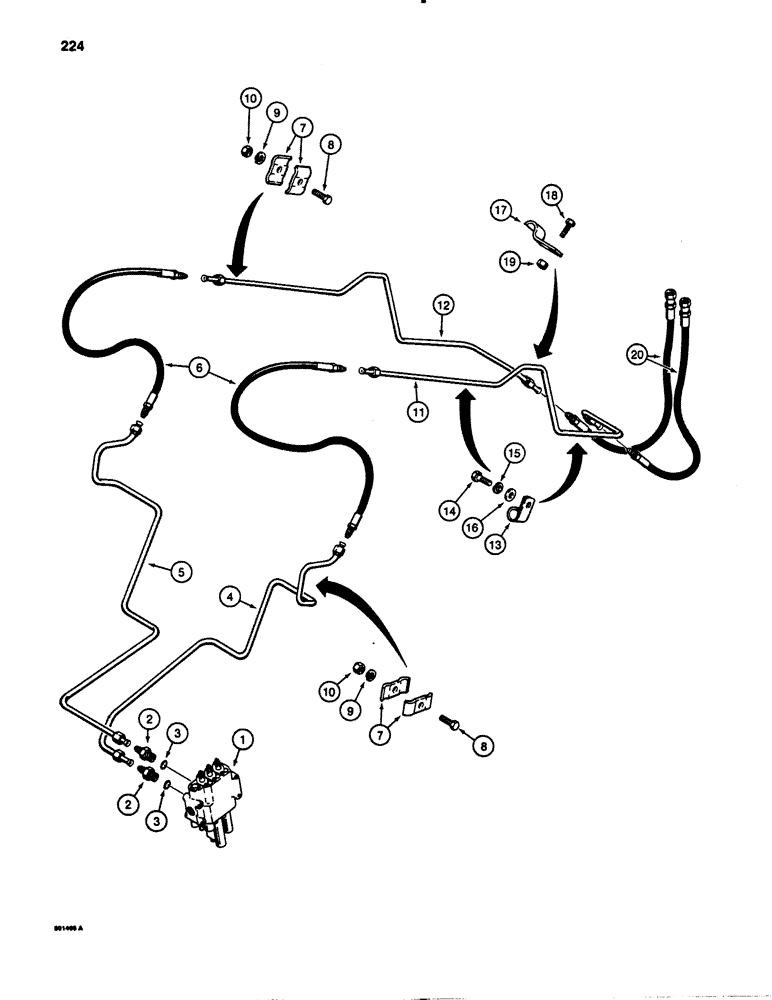

Запчасти Case 780B (224) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

L101841

LOCK VALVE

CONTROL VALVE - loader, three spool, parts list Figure 244

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Includes: Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

L107576

TUBE,0.625" OD x 34.19, 11.22" L

- control valve to bucket, clam cylinder, right-hand

1шт.

5

L107574

TUBE,0.625" OD

- control valve to bucket, clam cylinder, left-hand

1шт.

6

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - control valve to lift frame and tubes, 37" (940 mm) long

2шт.

7

L100272

CLAMP

- tube

8шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

11

L107578

TUBE,0.625" OD

- bucket, clam cylinder, right-hand

1шт.

12

L107572

TUBE,0.625" OD

- bucket, clam cylinder, left-hand

1шт.

13

D34174

CLAMP,5/8", 1/2" Bolt

- tube

4шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

17

L104914

CLAMP

- tube

2шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

19

131-94

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

20

L53419

HOSE

- lift frame tubes to clam cylinders, 43" (1092 mm) long

2шт.
