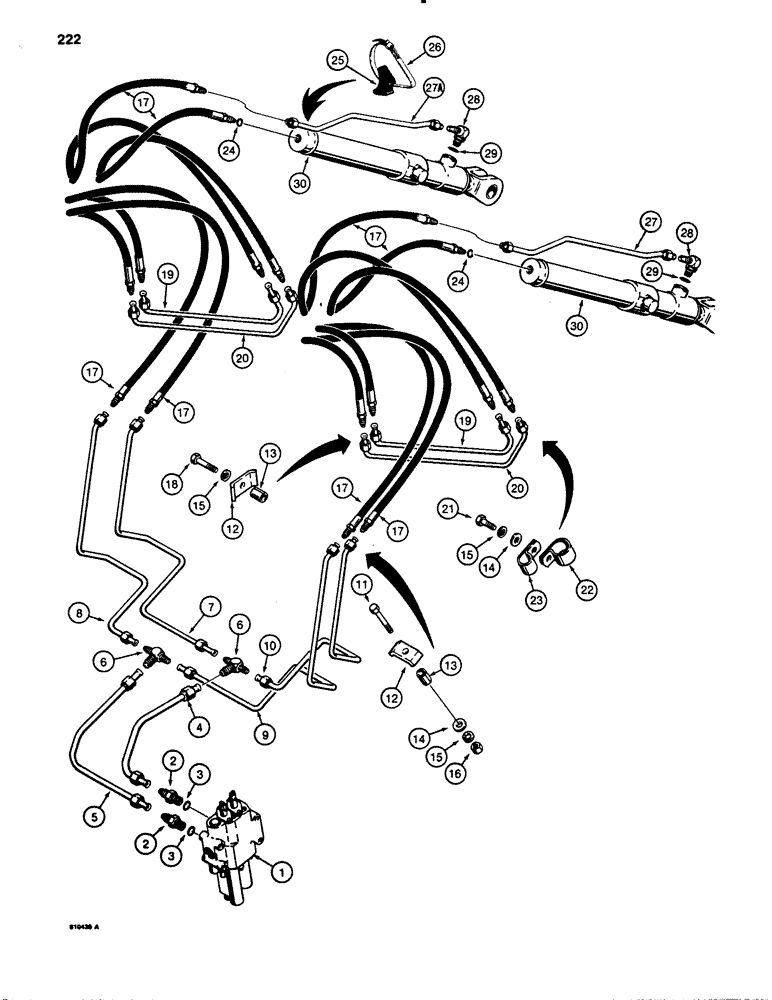

Запчасти Case 780B (222) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 242 and 244

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, male, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

L103182

TUBE,0.75" OD

- tilt spool to tee

1шт.

5

L103161

TUBE,0.75" OD

- tilt spool to tee

1шт.

6

218-605

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Br

- tube

2шт.

7

L103049

TUBE,0.625" OD

- tee to bucket cylinder hose, left-hand, closed end

1шт.

8

L103051

TUBE,0.625" OD

- tee to bucket cylinder hose, left-hand, rod end

1шт.

9

L103044

TUBE,0.625" OD

- tee to bucket cylinder hose, right-hand, rod end

1шт.

10

L103046

TUBE,0.625" OD

- tee to bucket cylinder hose, right-hand, closed end

1шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

12

A13622

PLATE, LOCKING

CLAMP - tube

4шт.

13

D76209

SPACER

- tube clamp

4шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

L57599

HOSE ASSY.,12.7mm ID x 939.8mm L, SAE 100R2

HOSE - bucket cylinder, 37" (940 mm) long

8шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

L103125

TUBE,0.625" OD

- bucket cylinder hose, rod end

2шт.

20

L105576

TUBE,0.625" OD x 18.64, 25.68" L

- bucket cylinder hose, closed end

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

22

A27256

CLAMP

- tube, large

2шт.

23

D34174

CLAMP,5/8", 1/2" Bolt

- tube, small

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose to bucket cylinder

2шт.

25

D38648

BLOCK

SPACER - rubber, tube and cylinder

2шт.

26

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

27

L108579

TUBE,0.625" OD

- bucket cylinder, rod end, right-hand

1шт.

27a

L108581

TUBE ASSY.,0.625" OD

TUBE - bucket cylinder, rod end, left-hand

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

30

G103753

CYLINDER

- hydraulic, loader bucket, parts list Figure 280

2шт.
