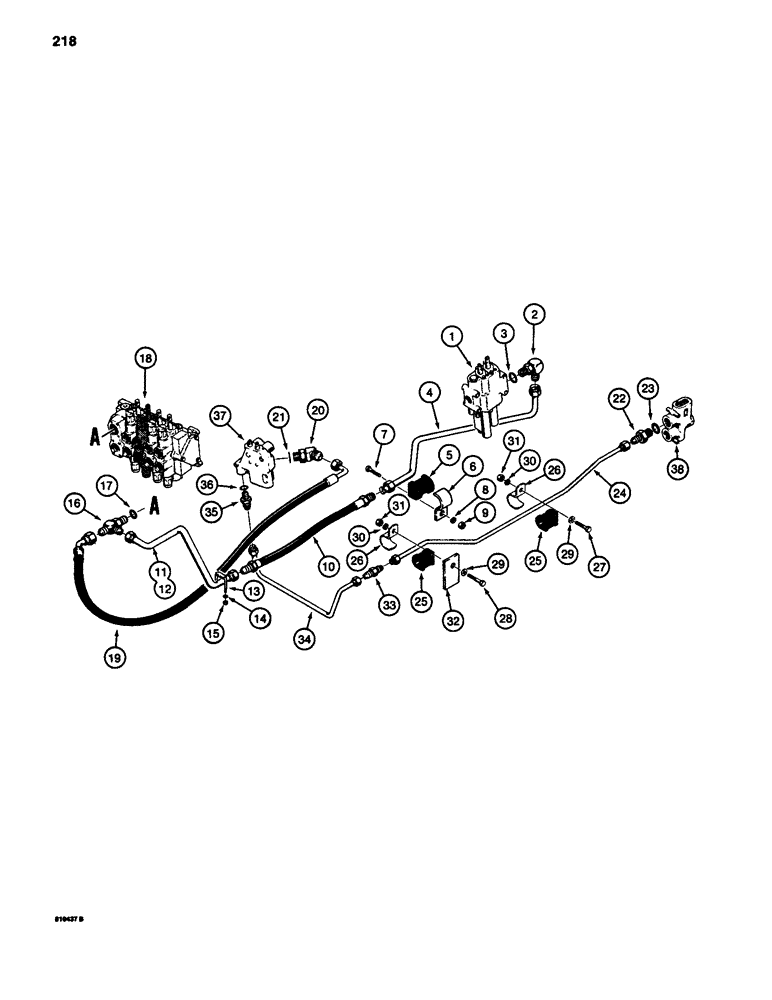

Запчасти Case 780B (218) - EQUIPMENT HYDRAULIC CIRCUIT, BACKHOE LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - loader, includes power beyond sleeve, parts list Figures 242 and 244

1шт.

2

L114092

ELBOW

- 90 degree, special, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

4

L103438

TUBE ASSY.,1" OD

TUBE - from loader control valve

1шт.

5

D67297

BLOCK

INSULATOR - tube clamp

1шт.

6

D68846

CLAMP

- tube

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex head, 3/8" - 16 NC

1шт.

10

L109330

HOSE

- to backhoe control valve, 20-5/16" (516 mm) long

1шт.

11

L106523

TUBE ASSY.,1" OD x 9.71, 13.88" L

TUBE - to backhoe control valve, models without extendable dipper

1шт.

12

L106459

TUBE ASSY.,1" OD

TUBE - to backhoe control valve, models with extendable dipper

1шт.

13

L78947

U-BOLT

- tube clamp

1шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

15

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

16

218-5586

TEE,37 Degree, 1 1/16"-12, 1 5/8"-12 O-Ring Run, 1 5/16"-12

- backhoe control valve inlet, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

18

REF

INSTRUCTION

CONTROL VALVE - backhoe, parts list Figure 256

1шт.

19

L103831

LARGE HOSE

HOSE - special, from stabilizer valve, 39" (1016 mm) long

1шт.

20

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, at stabilizer valve, Includes: Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - flow control valve outlet, Incl. Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

24

L103816

TUBE ASSY.,0.75" OD

TUBE - from flow control valve

1шт.

25

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

2шт.

26

D74192

CLAMP

- tube

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

29

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

32

L43575

PLATE ASSY.

PLATE - clamp spacer

1шт.

33

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, male

1шт.

34

L103309

TUBE ASSY.,0.75" OD

TUBE - to stabilizer valve

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - stabilizer valve inlet, Incl. Ref. 36

1шт.

36

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

37

REF

INSTRUCTION

CONTROL VALVE - backhoe stabilizer, parts list Figure 254

1шт.

38

REF

INSTRUCTION

FLOW CONTROL VALVE - parts list Figure 270

1шт.
