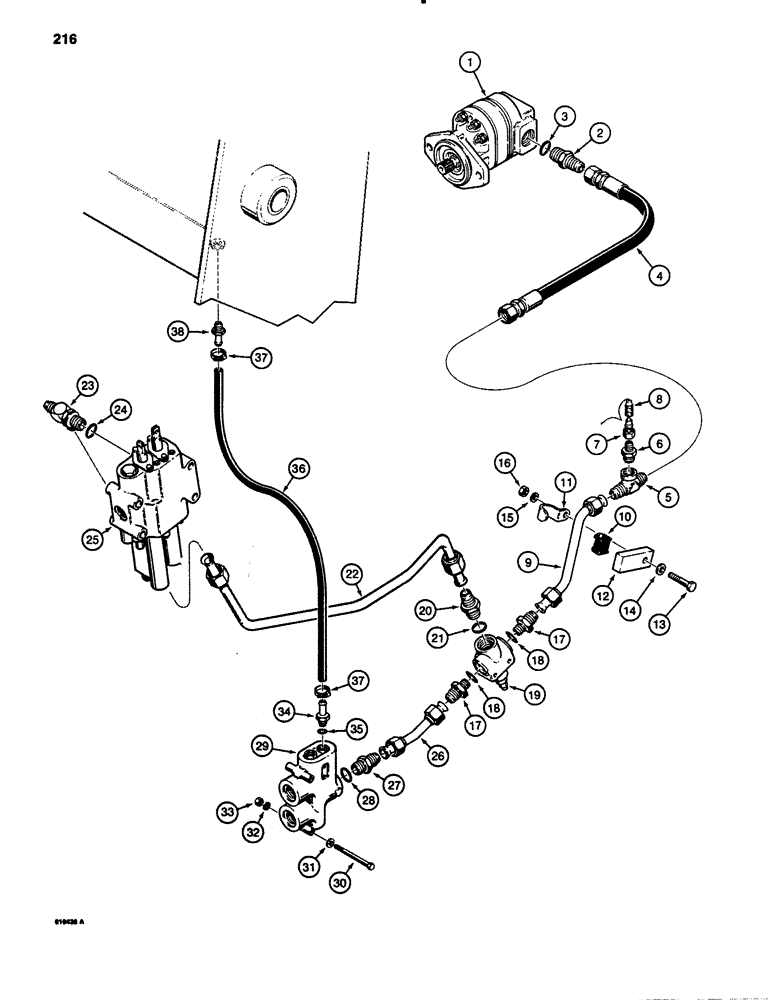

Запчасти Case 780B (216) - EQUIPMENT HYDRAULIC CIRCUIT, FRONT HYDRAULIC PUMP TO FLOW CONTROL & LOADER VALVE (08) - HYDRAULICS

1

D127914

PUMP

HYDRAULIC PUMP - front, for pump mounting and drive coupling, parts list Figure 274

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L54137

HOSE ASSY.

HOSE - from front hydraulic pump, 25" (635 mm) long

1шт.

5

218-576

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- pressure check

1шт.

6

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - tee to coupling

1шт.

7

S206607

DISC

COUPLING - pressure check

1шт.

8

S206608

CAP

- dust

1шт.

9

L105285

TUBE ASSY.,0.75" OD x 5.39, 10.42" L

TUBE - from front hydraulic pump to relief valve

1шт.

10

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR - tube clamp

1шт.

11

D74192

CLAMP

- tube

1шт.

12

L107114

SPACER

BLOCK - spacer

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

19

L106548

VALVE

RELIEF VALVE - parts list Figure 272

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

22

D127014

TUBE

- from loader control valve, to relief valve, Replaces L107842 to improve reliability

1шт.

23

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- at loader control valve, Includes: Ref. 24

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

25

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figures 242 & 244

1шт.

26

L103972

TUBE,0.75" OD x 6.4, 1.85" L

- relief valve to flow control valve

1шт.

27

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

29

L102602

LOCK VALVE

FLOW CONTROL VALVE - parts list Figure 270

1шт.

30

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex head, 5/16" - 18 NC x 3-3/4"

2шт.

31

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

34

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

STEM FITTING - at flow control valve, Includes: Ref. 35

1шт.

35

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- stem fitting

1шт.

36

L102879

HOSE ASSY.

HOSE - flow control valve to hydraulic reservoir, 31" (787 mm) long

1шт.

37

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

38

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

STEM FITTING - at hydraulic reservoir

1шт.
