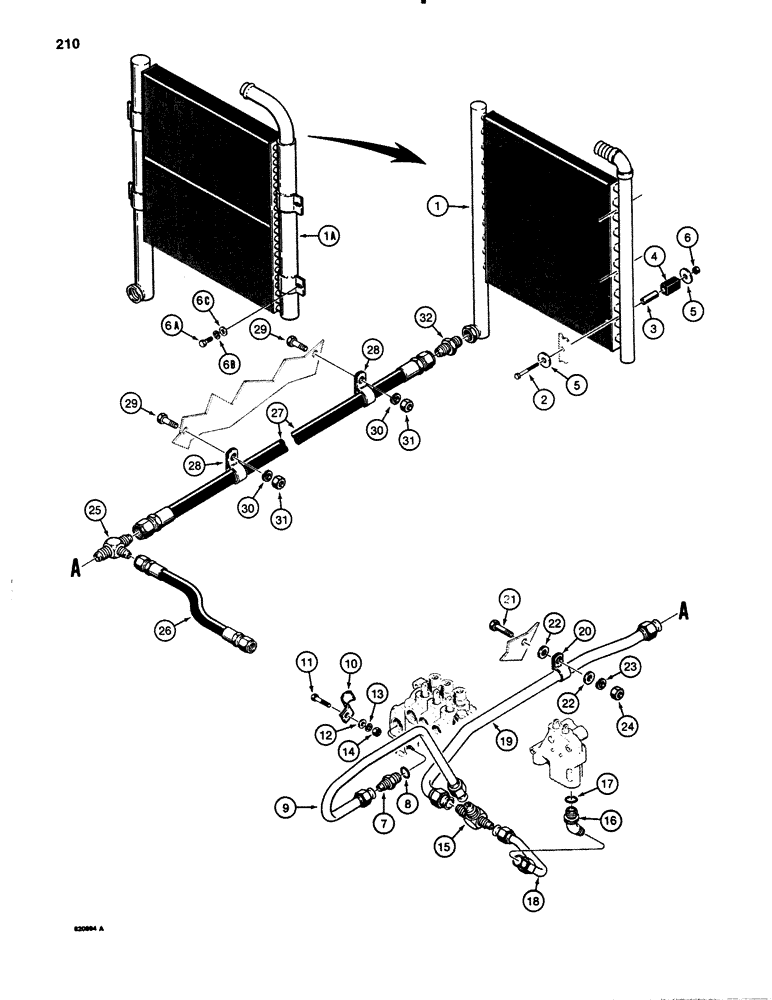

Запчасти Case 780B (210) - EQUIPMENT HYDRAULIC CIRCUIT, OIL COOLER AND RETURN LINES (08) - HYDRAULICS

1

L108816

COOLER, OIL

OIL COOLER - hydraulic system used before tractor SN 9146270, except not used on tractor SN 9146268

1шт.

1a

L106968

COOLER, OIL

OIL COOLER - hydraulic system, used on tractor SN 9146268, 9146270, and after

1шт.

2

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

BOLT - hex head, 1/4" - 20 NC x 2-3/4", used with L108816 oil cooler

6шт.

3

A160869

GUIDE

SPACER - oil cooler bolt, used with L108816 oil cooler

6шт.

4

L105712

BLOCK

- oil cooler mounting, used with L108816 oil cooler

6шт.

5

A26383

WASHER

- special, used with L108816 oil cooler

12шт.

6

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, used with L108816 oil cooler

6шт.

6a

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used with L106968 oil cooler Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6b

92-5

LOCK WASHER,5/16"

used with L106968 oil cooler 5/16"

4шт.

6c

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with L106968 oil cooler

4шт.

7

218-5049

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, backhoe valve return port, Includes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- adapter

1шт.

9

L106525

TUBE ASSY.,1.5" OD

TUBE - backhoe control valve return, models without hydraulic boom lock or extendable dipper

1шт.

9

L106521

TUBE ASSY.,1.5" OD

TUBE - backhoe control valve return, models with extendable dipper and without hydraulic boom lock

1шт.

9

L105519

TUBE ASSY.

TUBE - backhoe control valve return, models with hydraulic boom lock and without extendable dipper, not shown

1шт.

9

L106841

TUBE ASSY.

TUBE - backhoe control valve return, models with hydraulic boom lock and extendable dipper, not shown

1шт.

10

A12298

CLAMP

- return tube

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

L104115

TEE

- valve return tubes

1шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, stabilizer valve return port, Incl. Ref 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

L104218

TUBE ASSY.,0.625" OD

TUBE - stabilizer control valve return

1шт.

19

L104233

TUBE ASSY.,1.5" OD

TUBE - backhoe return

1шт.

20

D47198

CLAMP

- tube

1шт.

21

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

1шт.

22

95-8

WASHER,1/2"

flat 1/2"

2шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

25

L105255

TEE

- return lines

1шт.

26

L77087

HOSE

- from loader control valve, 20" (508 mm) long

1шт.

27

L105149

HOSE

- to cooler, 71" (1803 mm) long

1шт.

28

S98801

CLAMP

- hose

2шт.

29

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

32

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - hose to cooler

1шт.
