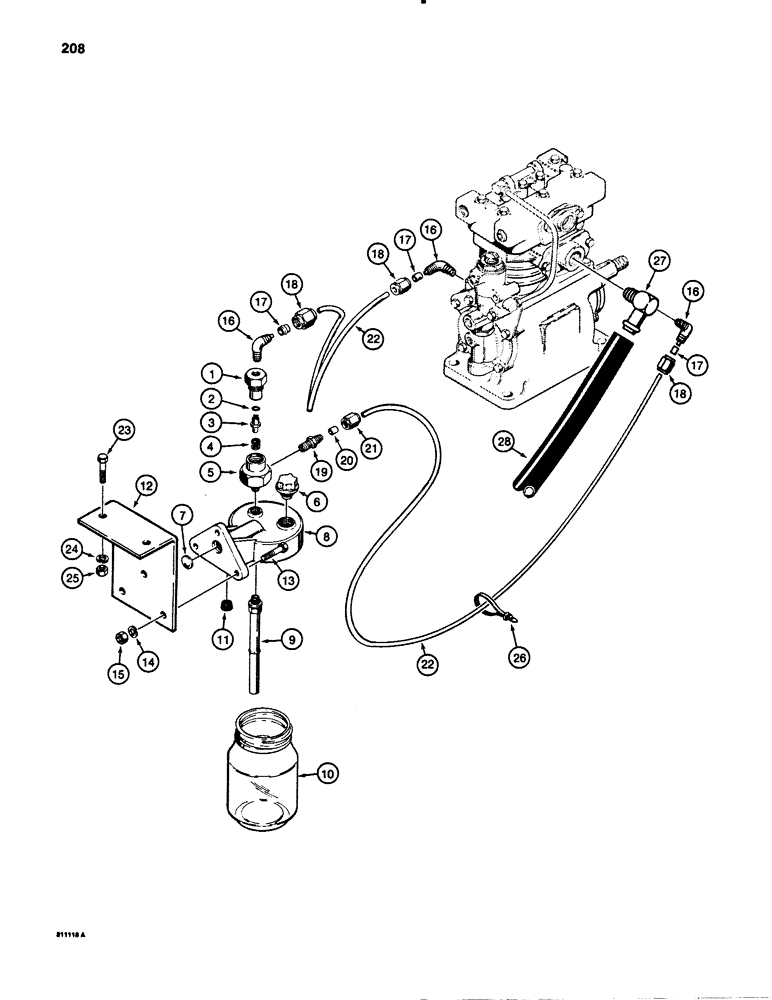

Запчасти Case 780B (208) - ALCOHOL EVAPORATOR (08) - HYDRAULICS

L36216

KIT

ALCOHOL EVAPORATOR ASSEMBLY - tractor, Includes: Ref. 1 - 27

1шт.

L46372

KIT

- alcohol evaporator, Includes: Ref. 1 - 11B

1шт.

L33157

VALVE

CHECK VALVE ASSEMBLY - alcohol evaporator, Includes: Ref. 1 - 5

1шт.

1

L33162

NUT

- cap

1шт.

2

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - check valve

1шт.

3

L33160

VALVE

CHECK VALVE - alcohol evaporator

1шт.

4

L33159

SPRING

- check valve

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - check valve

1шт.

L33145

EVAPORATOR

JAR AND COVER ASSEMBLY - alcohol evaporator, Includes: Ref. 6 - 11

1шт.

6

L33151

PLUG

- filler

1шт.

7

41-102

PLUG,Exp, 1/2"

- expansion, steel, 1/2"

1шт.

8

L33146

BODY

COVER - alcohol evaporator

1шт.

9

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- alcohol evaporator

1шт.

10

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

11

L33150

FILTER

- air intake

1шт.

11a

L31457

GASKET

- adapter, not shown

2шт.

These items are included in L46372 kit, but not used on the 780B.

1шт.

11b

L32930

ADAPTER

- compressor, not shown

1шт.

These items are included in L46372 kit, but not used on the 780B.

1шт.

12

L107271

BRACKET

- alcohol evaporator mounting

1шт.

13

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

25-104

NUT,1/4"-20, G5

3шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING ASSEMBLY - compression, Includes: Ref. 16 - 18

3шт.

16

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree

1шт.

17

222-5047

SLEEVE,1/4" Tube

- elbow

1шт.

18

222-5060

NUT,1/2"-20

COMPRESSION NUT - elbow

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

FITTING ASSEMBLY - compression, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

20

222-5047

SLEEVE,1/4" Tube

- adapter

1шт.

21

222-5060

NUT,1/2"-20

COMPRESSION NUT - adapter

1шт.

22

L100713

TUBE,0.25" OD x 66" L

- jar to compressor, 66" (1676 mm) long

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

L107160

FITTING

- special

1шт.

28

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Air cleaner to air compressor 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.
