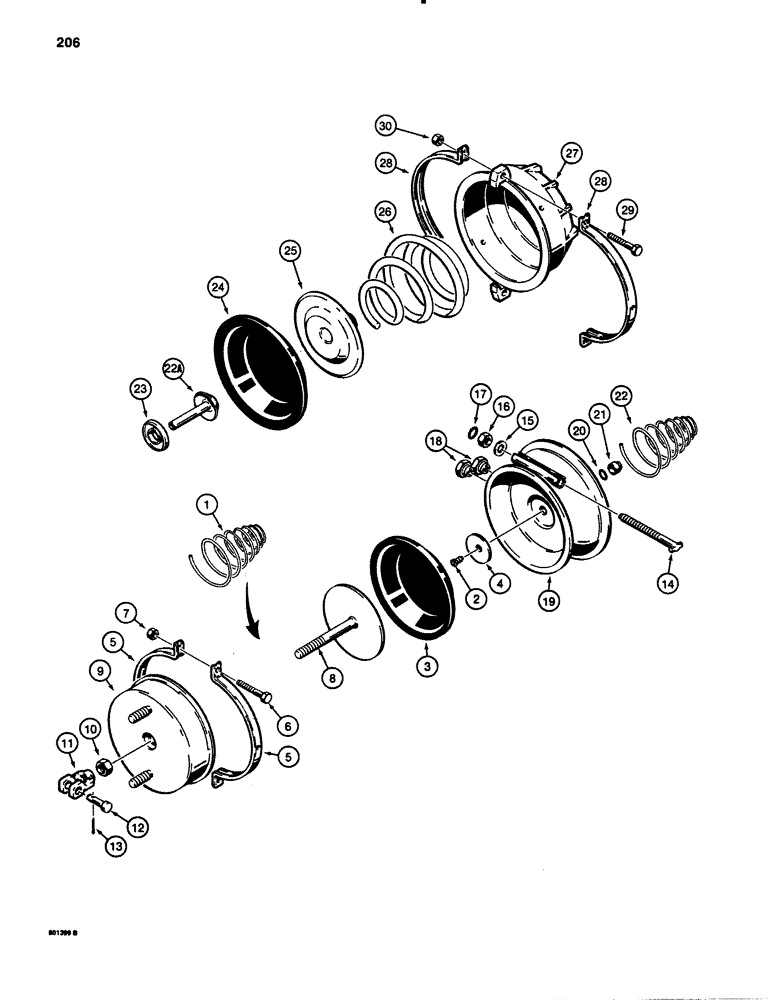

Запчасти Case 780B (206) - BRAKE SYSTEM, L105169 BRAKE ACTUATOR (07) - BRAKES

L105169

ACTUATOR

ASSEMBLY - brake, Includes: Ref. 1 - 31

1шт.

1

N7129

VALVE SPRING

SPRING - push rod return

1шт.

2

73-48

SCREW,Slotted Flat Hd, 1/4"-20 x 1/2"

- machine, 1/2" - 20 NC x 1/2"

1шт.

3

L35610

DIAPHRAGM

- brake actuator

1шт.

4

N7130

PLATE ASSY.

PLATE - lower adapter

1шт.

L35605

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

6

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

Hex, 3/8"-24 x 2 1/4", G5

2шт.

7

25-176

NUT,3/8"-24, G5, Hvy

- hex, heavy, 3/8" - 24 NF

2шт.

8

L35626

ROD

- pressure, brake actuator

1шт.

9

N7131

COVER ASSY

COVER - actuator

1шт.

10

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, self-locking, 5/8" - 18 NF

1шт.

S84585

YOKE

ASSEMBLY - brake actuator, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

YOKE - brake actuator

1шт.

12

L33649

AXLE PIN

PIN - yoke

1шт.

13

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

N7132

BOLT

T-BOLT - special

1шт.

15

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

16

N7133

NUT

- special

1шт.

17

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- special

1шт.

18

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- 3/8" x 1/4"

2шт.

N8827

DRUM HUB

BULKHEAD ASSEMBLY - brake actuator, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

BULKHEAD - actuator

1шт.

20

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- bulkhead

1шт.

21

NSS

NOT SOLD SEPARAT

INSERT - bulkhead

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - push rod return

1шт.

22a

NSS

NOT SOLD SEPARAT

ROD - adapter

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

24

N7187

DIAPHRAGM

- actuator

1шт.

25

N7224

SUPPORT ASSY.

SUPPORT - spring

1шт.

26

N7225

VALVE SPRING

SPRING - main

1шт.

27

N7226

CAP

- end, actuator

1шт.

Refs. 25, 26, and 27 together makeup powerpack kit N9906. The individual items are not available on their own.

1шт.

N7185

CLAMP

ASSEMBLY - brake actuator, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

CLAMP - brake actuator

2шт.

29

114-213

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 2-1/4"

2шт.

30

25-176

NUT,3/8"-24, G5, Hvy

- hex head, 3/8" - 16 NC

2шт.

31

N9187

PLUG

- rubber, end cap, not shown

1шт.

This part goes on the backside of Ref. 27 end cap.

1шт.
