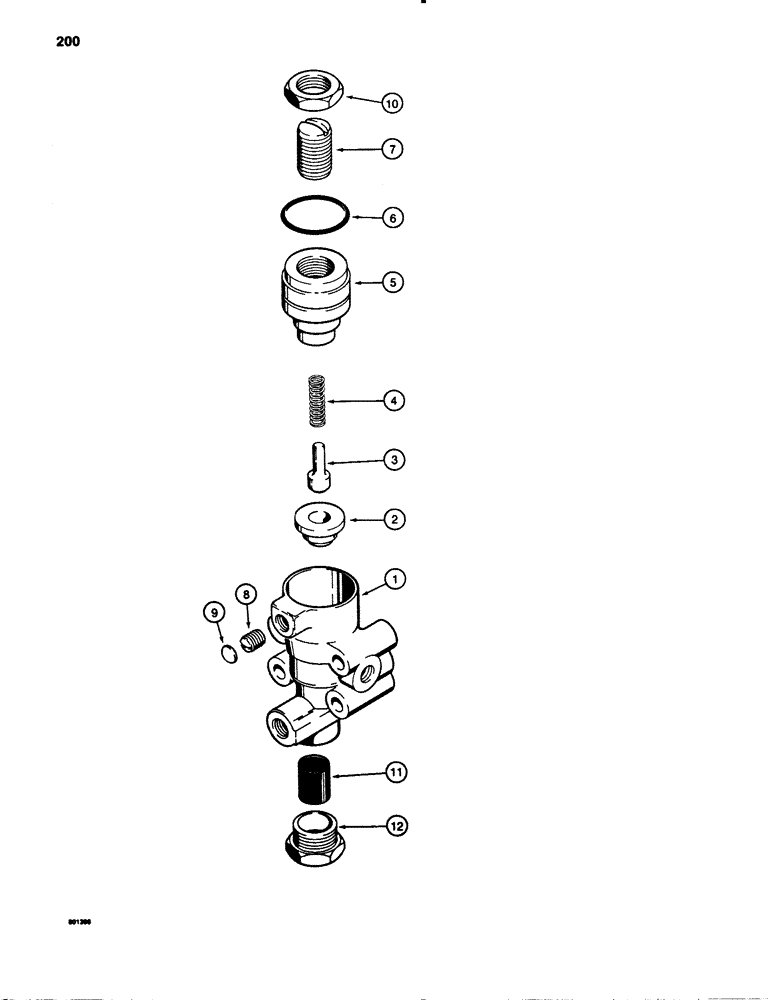

Запчасти Case 780B (200) - BRAKE SYSTEM, N7281 AIR COMPRESSOR GOVERNOR (07) - BRAKES

N7281

BAR

GOVERNOR - air compressor, used with L105648 compressor, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - governor

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - body

1шт.

Part of Governor Kit P/N N7312

1шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

Part of Governor Kit P/N N7312

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - spring

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

Part of Governor Kit P/N N7312

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - adjustment

1шт.

8

NSS

NOT SOLD SEPARAT

SET SCREW - locking

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - locking, special

1шт.

11

NSS

NOT SOLD SEPARAT

FILTER - govenor

1шт.

Part of Governor Kit P/N N7312

1шт.

12

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

N7312

KIT

- governor, Includes: Ref. 2, 4, 6 and 11

1шт.
