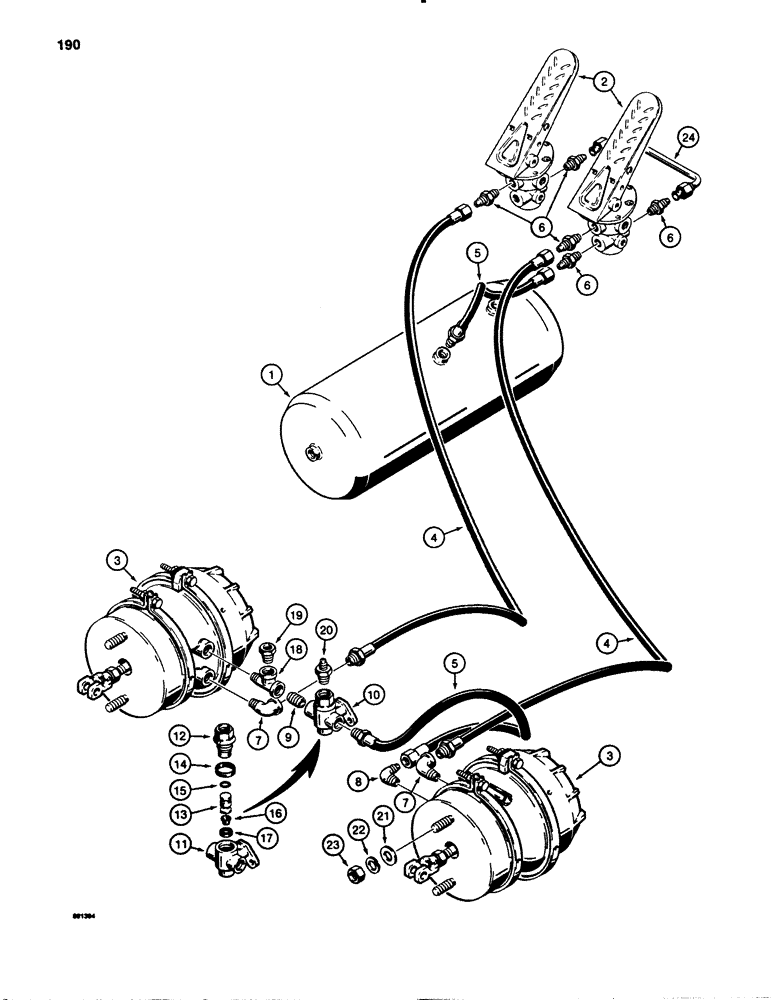

Запчасти Case 780B (190) - BRAKE SYSTEM RESERVOIR TO BRAKE TREADLES,, QUICK RELEASE VALVE & BRAKE ACTUATOR (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - air reservoir, for tank mounting, see Figure 186

1шт.

2

L73042

VALVE, BRAKE

TREADLE - brake valve, parts list Figure 202

2шт.

3

L105169

ACTUATOR

ASSEMBLY - parts list Figure 206

2шт.

4

L103353

CATALOG

HOSE - treadle valve to brake actuator, 33" (838 mm) long

2шт.

5

L103343

HOSE,9.52 mm ID x 330.20 mm

Treadle Valve to Air Reservoir and Quick Release Valve to Right-Hand Actuator

1шт.

6

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, at treadle valve

5шт.

7

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

2шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 1/4" NPT to 9/16"

1шт.

9

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

10

L55335

LOCK VALVE

VALVE - quick release, Includes: Ref. 11 - 17

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

12

NSS

NOT SOLD SEPARAT

FITTING - inlet

1шт.

13

N6200

SEAT

- valve

1шт.

N6201

SEAL KIT

- seal, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET - fitting

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - seat

1шт.

16

NSS

NOT SOLD SEPARAT

CHECK VALVE - quick release valve

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - check valve

1шт.

18

221-1691

TEE,Street, 1/4" NPT

- 1/4" NPT

1шт.

19

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

ADAPTER - 1/4" to 1/8" NPT

1шт.

20

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

CONNECTOR - male, straight, 1/4" x 1/4"

1шт.

21

95-10

WASHER,5/8"

- flat, 5/8"

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

23

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

4шт.

24

L103370

TUBE,0.375" OD x 5, 2.25" L

- brake treadle

1шт.
