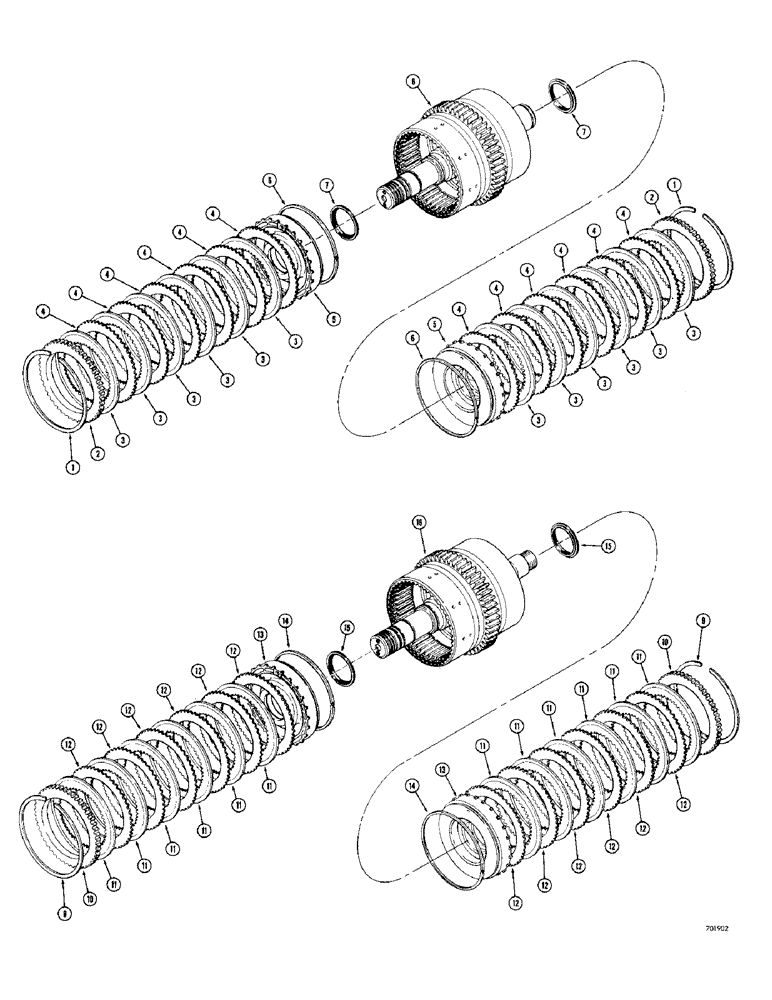

Запчасти Case 780 (194) - TRANS, REV. & HIGH-FOR. & LOW CLUTCHES USED W/D54477 & D54478 REAR AXLE (06) - POWER TRAIN

L41513

TRANSMISSION ASSEMBLY - complete, Includes: Ref. 1 - 16

1шт.

1

A17918

RING

retaining, backing plate, rev. and high clutch parts

2шт.

2

A17919

PLATE

backing, disc, rev. and high clutch parts

2шт.

3

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

internal spline, rev. and high clutch parts

12шт.

4

A17921

DISC

external spline, rev. and high clutch parts

12шт.

5

L33484

PISTON

rev. and high clutch parts

2шт.

6

A17908

RING

piston, outer, rev. and high clutch parts

2шт.

7

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

piston, inner, rev. and high clutch parts

2шт.

8

L33483

DRUM

ASSEMBLY - reverse and high clutch

1шт.

9

A17918

RING

retaining, backing plate, for. and low clutch parts

2шт.

10

A17919

PLATE

backing, disc, for. and low clutch parts

2шт.

11

D55252

DISC,107.72mm ID x 148.84mm OD x 2.62mm Thk

internal spline, for. and low clutch parts

12шт.

12

A17921

DISC

external spline, for. and low clutch parts

12шт.

13

L33484

PISTON

for. and low clutch parts

2шт.

14

A17908

RING

SEAL - piston, outer, for. and low clutch parts

2шт.

15

L33485

SEAL,50.32mm ID x 62.56mm OD x 3.97mm Thk

piston, inner, for. and low clutch parts

2шт.

16

L33523

ASSEMBLY - forward and low clutch

1шт.
