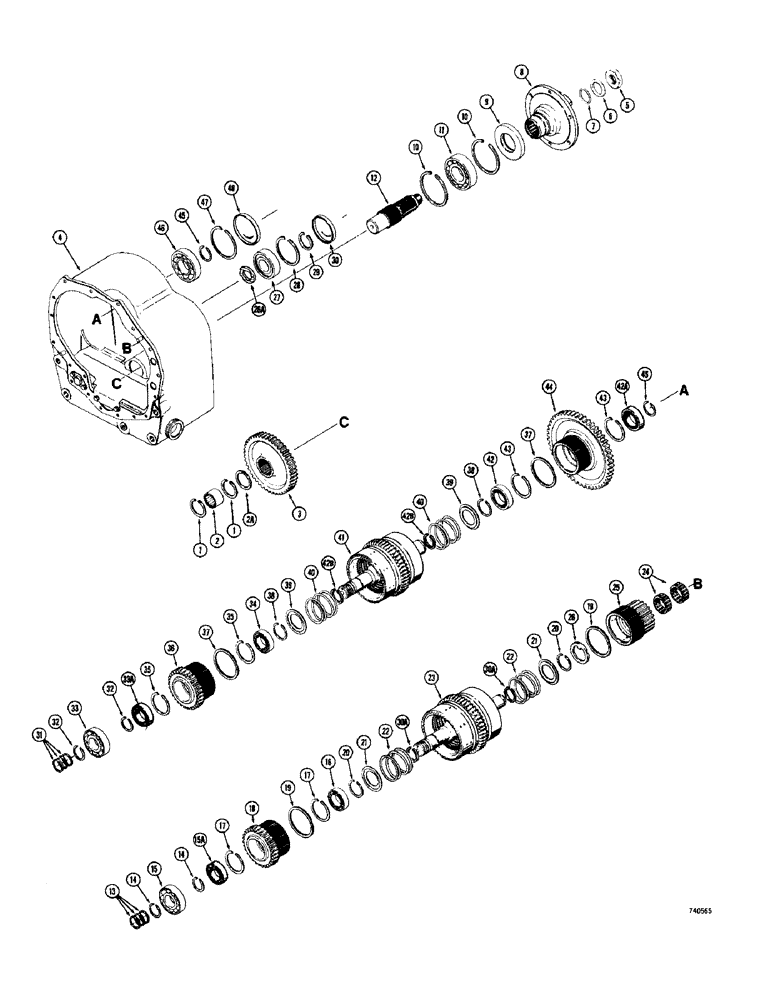

Запчасти Case 780 (190) - TRANSMISSION, TWO SPEED CASE AND CLUTCH ASSEMBLIES USED WITH D86494 REAR AXLE (06) - POWER TRAIN

D55861

SPARE PART Complete, Incl. Ref. 1 - 48

1шт.

1

A10506

SNAP RING,2.44", Int, #244

Output shaft front brg

2шт.

2

L33533

CARRIER

BEARING - needle type, output shaft, front

1шт.

2a

F40807

SNAP RING,#225, Ext

Output gear

1шт.

3

D58172

SPARE PART Output, driven

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - transmission, must order D56897 case assembly, see Figure 180 for components

1шт.

5

131-487

LOCK NUT,1 1/4"-18

1шт.

6

A55828

WASHER

Special, 1-1/4"

1шт.

7

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

Output flange

1шт.

8

L33536

FLANGE

Output shaft

1шт.

9

L33535

OIL SEAL

Oil, output shaft

1шт.

10

L33532

RING, SNAP

RING SNAP Retaining, output shaft rear bearing

2шт.

11

D55254

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

Ball type, output shaft, rear

1шт.

12

L33530

SPARE PART Output

1шт.

13

A17925

SPRING

RING - piston, forward and low shaft, clutch parts

3шт.

14

L33518

RING

Retainer, for. and low clutch shaft partsfront bearing

2шт.

15

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

Ball type, front, for. and low clutch shaft parts

1шт.

15a

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear, for. and low shaft parts

1шт.

16

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear, for. and low shaft parts

1шт.

17

L33514

RING

Retaining, clutch driven gear bearing, for. and low shaft parts

2шт.

18

D61954

GEAR

Driven, clutch, for. and low shaft parts

1шт.

19

L33512

RING

Oil baffle, clutch hub, for. and low shaft parts

2шт.

20

100-11196

SNAP RING,#196, Ext

return spring, for. and low clutch shaft parts, CLAMP - tube, P-type, 1/4 inch ID, use torque converter mounting hardware #196, Ext

2шт.

21

L33488

RETAINER

Return spring, for. and low clutch shaft parts

2шт.

22

L33487

VALVE SPRING

Return, clutch hub, for. and low shaft parts

2шт.

23

REF

INSTRUCTION

CLUTCH ASSEMBLY - forward and low, parts list Figure 196

1шт.

24

A63282

ROLLER BEARING,1.75" ID x 2.1268" OD x 1"

Roller type, low gear, for. clutch shaft parts

2шт.

25

D58173

SPARE PART For. and low clutch shaft parts

1шт.

26

D58175

SPARE PART Thrust, gear bearing, front, for. and low clutch shaft parts

1шт.

26a

D58176

SPARE PART Thrust, low gear bearing, rear, for. clutch shaft parts

1шт.

27

L33527

BEARING

SPARE PART Roller type, for. and low clutch shaft parts, rear

1шт.

28

N6818

SPARE PART Retaining, rear bearing, outer, for. and low clutch shaft parts

1шт.

29

L33518

RING

Retaining, rear bearing, inner, for. and low clutch shaft parts

1шт.

30

L33529

PLUG

Rear bearing hole, forward and low clutch shaft

1шт.

30a

S89661

RETAINER

Spring, for. and low clutch shaft parts

2шт.

31

A17925

SPRING

RING - piston, reverse and high shaft, clutch parts

3шт.

32

L33518

RING

Retaining, reverse and high shaft front bearing, parts

2шт.

33

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

Ball type, reverse and high shaft, front, parts

1шт.

D55861

SPARE PART Complete, continued, rev. and high clutch shaft parts

1шт.

33a

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

Ball type, driven gear, rev. and high clutch shaft parts

1шт.

34

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

Ball type, driven gear, rev. and high clutch shaft parts

1шт.

35

L33514

RING

Retaining, driven gear bearing, rev. and high clutch shaft parts

2шт.

36

L33489

GEAR

Driven, rev. and high clutch shaft parts

1шт.

37

L33512

RING

Oil baffle, hub, rev. and high clutch shaft parts

2шт.

38

100-11196

SNAP RING,#196, Ext

return spring, rev. and high clutch shaft parts, CLAMP - tube, P-type, 1/4 inch ID, use torque converter mounting hardware #196, Ext

2шт.

39

L33488

RETAINER

Return spring, rev. and high clutch shaft parts

2шт.

40

L33487

VALVE SPRING

Return, hub, rev. and high clutch shaft parts

2шт.

41

REF

INSTRUCTION

CLUTCH ASSEMBLY - reverse and high, parts list Figure 196

1шт.

42

L33515

BALL BEARING

Ball type, gear, rev. and high clutch shaft parts

1шт.

42a

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

Ball type, gear, rev. and high clutch shaft parts

1шт.

42b

S89661

RETAINER

Spring, rev. and high clutch shaft parts

2шт.

43

L33516

RING

Retaining, gear bearing, rev. and high clutch shaft parts

2шт.

44

D58174

SPARE PART High range, rev. and high clutch shaft parts

1шт.

45

L33520

RING, SNAP

RING SNAP Retaining, reverse and high clutch shaft rear bearing

2шт.

46

L33519

BALL BEARING,1.7717" ID x 3.937" OD x 0.8268"

Ball type, reverse and high clutch shaft, rear

1шт.

47

L33521

BOLT

RING - retaining, reverse and high clutch shaft rear bearing, rear

1шт.

48

L33522

PLUG

Rear bearing hole, reverse and high clutch shaft

1шт.
