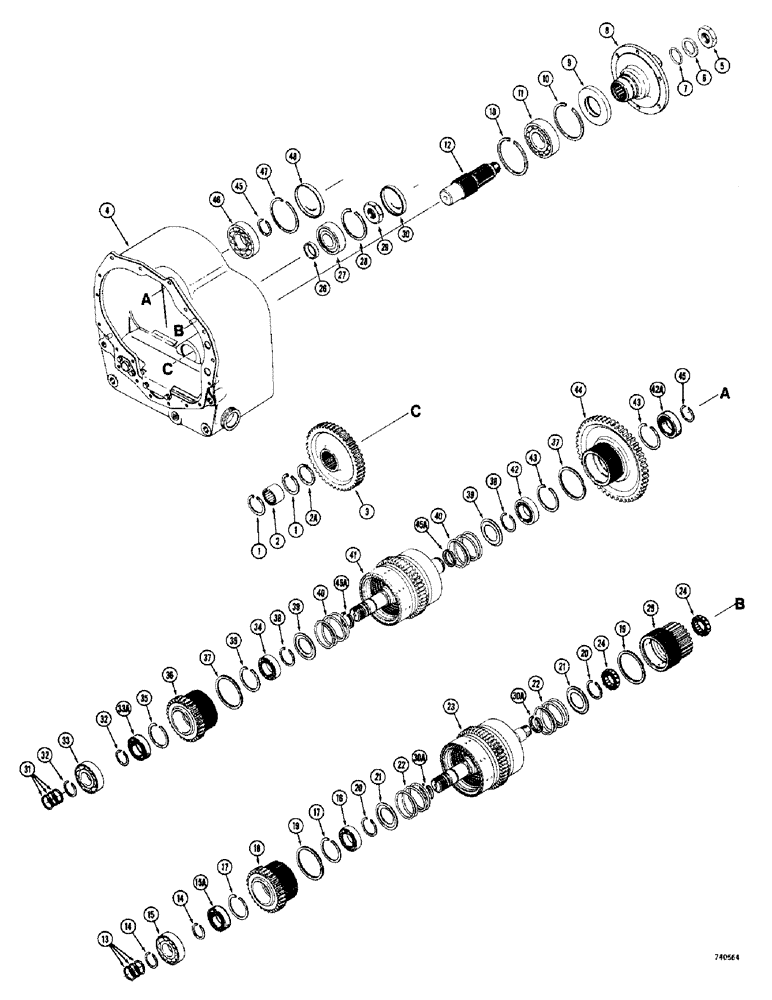

Запчасти Case 780 (186) - TRANS, TWO SPEED CASE & CLUTCH, USED W/D54477 & D54478 REAR AXLES, REV. & HIGH CLUTCH SHAFT PARTS (06) - POWER TRAIN

L41513

SPARE PART ASSY - complete, Incl. Ref. 1 - 48

1шт.

1

A10506

SNAP RING,2.44", Int, #244

Output shaft front brg

2шт.

2

L33533

CARRIER

BEARING - needle type, output shaft, front

1шт.

2a

F40807

SNAP RING,#225, Ext

Output gear

1шт.

3

L33534

SPARE PART Output, driven

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - transmission, must order L33477 case assembly, see Figure 180 for components

1шт.

5

131-487

LOCK NUT,1 1/4"-18

Hex

1шт.

6

A55828

WASHER

Special, 1-1/4"

1шт.

7

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

Output flange

1шт.

8

L33536

FLANGE

Output shaft

1шт.

9

L33535

OIL SEAL

Oil, output shaft

1шт.

10

L33532

RING, SNAP

RING SNAP Retaining, output shaft rear bearing

2шт.

11

D55254

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

Ball type, output shaft, rear

1шт.

12

L33530

SPARE PART Output

1шт.

13

A17925

SPRING

RING - piston, forward and low shaft

3шт.

14

L33518

RING

Retainer, forward and low shaft front bearing

2шт.

15

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

Ball type, forward and low shaft, front

1шт.

15a

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear

1шт.

16

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear

1шт.

17

L33514

RING

Retaining, clutch driven gear bearing

2шт.

18

D61954

GEAR

Driven, clutch

1шт.

19

L33512

RING

Oil baffle, clutch hub

2шт.

20

100-11196

SNAP RING,#196, Ext

return spring, CLAMP - hose #196, Ext

2шт.

21

L33488

RETAINER

Return spring

2шт.

22

L33487

VALVE SPRING

Return, clutch hub

2шт.

23

REF

INSTRUCTION

CLUTCH ASSEMBLY - forward and low, parts list Figure 194

1шт.

24

L33525

ROLLER BEARING

Roller type, low gear

2шт.

25

L33524

SPARE PART Low

1шт.

26

L33526

SPARE PART Low gear bearing, rear

1шт.

27

L33527

BEARING

SPARE PART Roller type, forward and low shaft, rear

1шт.

28

N6818

SPARE PART Retaining, rear forward and low shaft bearing

1шт.

29

131-487

LOCK NUT,1 1/4"-18

Hex

1шт.

30

L33529

PLUG

Rear bearing hole, forward and low clutch shaft

1шт.

30a

S89661

RETAINER

Spring

2шт.

31

A17925

SPRING

RING - piston, reverse and high shaft

3шт.

32

L33518

RING

Retaining, reverse and high shaft front bearing

2шт.

L41513

SPARE PART ASSY - complete

1шт.

33

A17912

BALL BEARING,1.5748" ID x 3.5433" OD x 0.9055"

Ball type, reverse and high shaft, front

1шт.

33a

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear

1шт.

34

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

Ball type, clutch driven gear

1шт.

35

L33514

RING

Retaining, clutch driven gear bearing

2шт.

36

L33489

GEAR

Driven, clutch

1шт.

37

L33512

RING

Oil baffle, clutch hub

2шт.

38

100-11196

SNAP RING,#196, Ext

return spring, CLAMP - hose #196, Ext

2шт.

39

L33488

RETAINER

Return spring

2шт.

40

L33487

VALVE SPRING

Return, clutch hub

2шт.

41

REF

INSTRUCTION

CLUTCH ASSY - reverse and high parts list Figure 194

1шт.

42

L33515

BALL BEARING

Ball type, high gear

1шт.

42a

D63366

BALL BEARING,44.99mm ID x 75mm OD x 16mm W

Ball type, high gear

1шт.

43

L33516

RING

Retaining, high gear bearing

2шт.

44

L33511

GEAR WHEEL

High range

1шт.

45

L33520

RING, SNAP

RING SNAP Retaining, reverse and high clutch shaft rear bearing

2шт.

45a

S89661

RETAINER

Spring

2шт.

46

L33519

BALL BEARING,1.7717" ID x 3.937" OD x 0.8268"

Ball type, reverse and high clutch shaft, rear

1шт.

47

L33521

BOLT

RING - retaining, reverse and high clutch shaft rear bearing, rear

1шт.

48

L33522

PLUG

Rear bearing hole, reverse and high clutch shaft

1шт.
