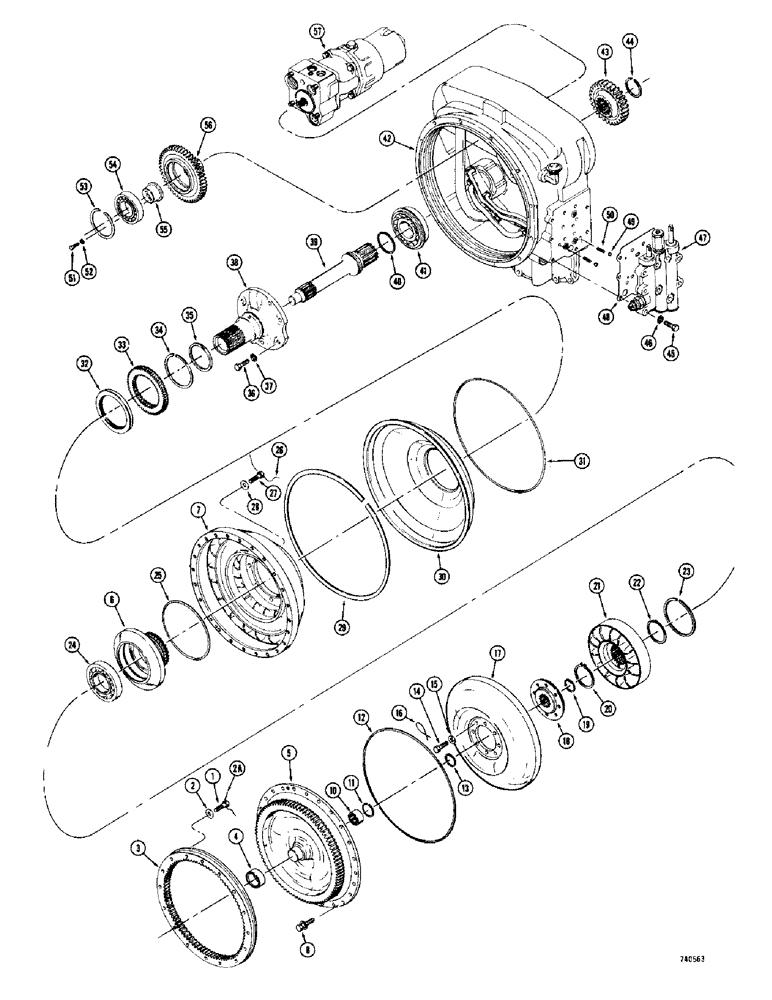

Запчасти Case 780 (174) - TRANSMISSION, TORQUE CONVERTER USED WITH D86494 REAR AXLE (06) - POWER TRAIN

D55861

SPARE PART Complete, Includes: Ref. 1 - 33

1шт.

1

D58179

LOCK BOLT

BOLT - special, ring gear

16шт.

2

195-525

WASHER,3/8", SAE

16шт.

2a

391-709

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 84" (2134 mm) long

1шт.

3

D56914

RING GEAR

GEAR - flywheel

1шт.

L30055

COVER

KIT - impeller, repair, Includes: Ref. 4 and 5

1шт.

4

A18036

SLEEVE

Cover, impeller

1шт.

5

D61953

COVER

Impeller

1шт.

6

A18030

HUB

Impeller

1шт.

7

A18031

HUB

IMPELLER - transmission

1шт.

8

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

AND LOCK WASHER -, Serial Range: impeller-cover

24шт.

9

RESERVED

1шт.

10

F40824

NEEDLE BEARING,Needle, 25.4mm ID x 38.1mm OD x 19.05mm W

Impeller cover

1шт.

11

T28550

SNAP RING,1.50", Int, #150

Brg

1шт.

12

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

Sealing, impeller cover

1шт.

13

A17903

SNAP RING,#156, Ext

Turbine

1шт.

14

A18033

SCREW

Special, turbine hub mounting

8шт.

15

D23404

WASHER

Special

8шт.

16

391-701

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 6" (152 mm) long

4шт.

17

A17993

TURBINE

Transmission

1шт.

18

A18034

HUB

Turbine

1шт.

19

A17903

SNAP RING,#156, Ext

Locating, turbine

1шт.

20

F35283

SNAP RING,#231, Ext

Reaction member

1шт.

21

L30684

MEMBER

Reaction

1шт.

22

L30685

SPACER

Reaction member

1шт.

23

A17997

RING

RETAINING, bearing, impeller hub

1шт.

24

L30024

BALL BEARING

Impeller hub

1шт.

25

D58178

O-RING

Impeller hub

1шт.

26

391-701

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 6" (152 mm) long

4шт.

27

L30051

BOLT (SPREADER)

Special, Serial Range: hub-impeller

8шт.

28

195-29

WASHER,7/16"

Special

8шт.

29

L33461

RING

Retaining, oil baffle

1шт.

30

L33459

BAFFLE

Oil

1шт.

31

L33460

RING

SEAL, oil baffle

1шт.

32

A18000

OIL SEAL

Oil

1шт.

33

L33462

GEAR

Impeller hub

1шт.

34

A18009

RING

Retaining, gear, impeller hub, Includes: Ref. 35 - 57

1шт.

35

A18009

RING

Retaining, gear, impeller hub

1шт.

sealing ring 304052a1replaces both d80312 and d80313.

1шт.

D80312 seal and D80313 spring (refer to next line for Ref. 35 - A18011).

1шт.

A18009 retaining ring - This should be

1шт.

35

A18011

RING

Sealing, oil, stator support, for service use D80312 seal and D80313 spring

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Stator support

6шт.

37

92-8

LOCK WASHER,1/2"

6шт.

38

D80314

BRACKET

SUPPORT - stator

1шт.

39

L33452

SHAFT

Turbine

1шт.

40

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

Sealing, oil, turbine shaft

1шт.

41

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

Turbine shaft

1шт.

42

L33466

HOUSING

CONVERTER AND TUBE ASSEMBLY - transmission, parts list Figure 182

1шт.

43

L33456

GEAR WHEEL

Turbine shaft, when stock is exhausted, order D61955 gear for service

1шт.

43

D61955

GEAR

Turbine shaft

1шт.

44

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, gear

1шт.

45

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Valve mounting

9шт.

46

92-6

LOCK WASHER,3/8"

9шт.

47

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control, parts list Figure 204

1шт.

48

D55253

GASKET

, Serial Range: Valve-converter

1шт.

49

211-11

BALL,3/8" Dia

Detent

2шт.

50

L33549

SPRING

Detent

2шт.

Desired, order 11403.

1шт.

L33549 spring - If heavier spring is

1шт.

51

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

Bearing support

6шт.

52

92-7

LOCK WASHER,7/16"

6шт.

53

L33464

RING, SNAP

RING SNAP Retaining, drive gear

3шт.

54

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

Drive gear

3шт.

55

L33463

BRACKET

SUPPORT - bearing, drive gear

3шт.

56

L33465

GEAR WHEEL

DRIVE - transmission

3шт.

57

L33557

LOCK VALVE

REGULATOR VALVE, PUMP AND FILTER ASSEMBLY - transmission, parts list Figures 200

1шт.
