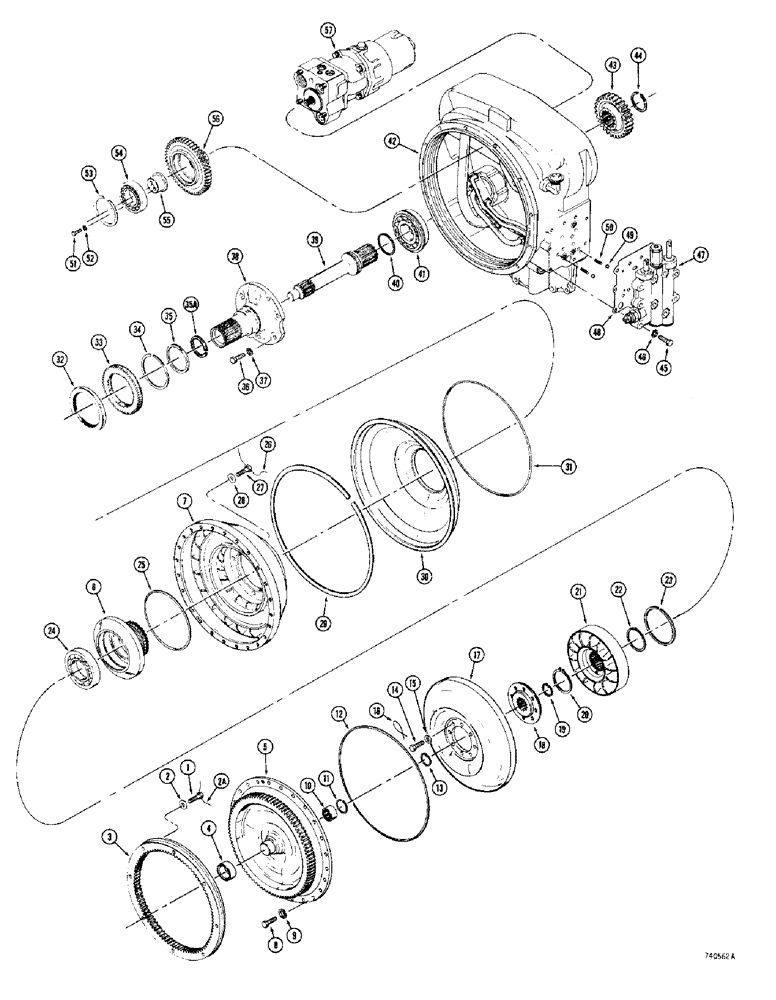

Запчасти Case 780 (170) - TRANSMISSION, TORQUE CONVERTER USED WITH D54477 AND D54478 REAR AXLES (06) - POWER TRAIN

L41513

SPARE PART ASSEMBLY - complete, Includes: Ref. 1 - 43

1шт.

1

L33436

BOLT

Special, ring gear

8шт.

2

A17295

WASHER

Flat, 3/8", plated (replaced 195-525 )

8шт.

2a

391-709

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 84" (2134 mm) long

1шт.

3

189154A1

GEAR

RING - flywheel (replaced D56914 )

1шт.

L30055

COVER

KIT - impeller, repair, Includes Ref. 4 and 5

1шт.

4

A18036

SLEEVE

Cover, impeller

1шт.

5

D61953

COVER

Impeller

1шт.

6

A18030

HUB

Impeller

1шт.

7

A18031

HUB

IMPELLER - transmission

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

24шт.

9

92-6

LOCK WASHER,3/8"

24шт.

10

F40824

NEEDLE BEARING,Needle, 25.4mm ID x 38.1mm OD x 19.05mm W

Impeller cover

1шт.

11

T28550

SNAP RING,1.50", Int, #150

Brg

1шт.

12

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

"O" - impeller cover

1шт.

13

A17903

SNAP RING,#156, Ext

Turbine

1шт.

14

A18033

SCREW

Special, turbine hub mounting

8шт.

15

D23404

WASHER

Special

8шт.

16

391-701

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 6" (152 mm) long

4шт.

17

A17993

TURBINE

Transmission

1шт.

18

A18034

HUB

Turbine

1шт.

19

A17903

SNAP RING,#156, Ext

Turbine

1шт.

20

F35283

SNAP RING,#231, Ext

Reaction member

1шт.

21

L30684

MEMBER

Reaction

1шт.

22

L30685

SPACER

Reaction member

1шт.

23

A17997

RING

Retaining, bearing, impeller hub

1шт.

24

L30024

BALL BEARING

Impeller hub

1шт.

25

D58178

O-RING

Impeller hub

1шт.

26

391-701

ELECTRICAL WIRE

WIRE LOCK - 18 gauge x 6" (152 mm) long

4шт.

27

L30051

BOLT (SPREADER)

Special, Serial Range: hub-impeller

8шт.

28

A17999

WASHER

Special

8шт.

washer (not a sub). 95-529 subs to 495-11047 washer.

1шт.

A17999 washer - Replaced by 195-529

1шт.

29

L33461

RING

Retaining, oil baffle

1шт.

30

L33459

BAFFLE

Oil

1шт.

31

L33460

RING

SEAL, oil baffle

1шт.

32

A18000

OIL SEAL

Oil

1шт.

33

L33462

GEAR

Impeller hub

1шт.

34

A18009

RING

Retaining, impeller hub

1шт.

35

D80312

SEAL

Ring

1шт.

35a

D80313

SPRING

Expander

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Stator support

6шт.

37

92-8

LOCK WASHER,1/2"

6шт.

38

D80314

BRACKET

SUPPORT - stator

1шт.

39

L33452

SHAFT

Turbine

1шт.

40

A18012

RING,Locking, 54.74mm ID x 60.33mm OD x 3.15mm Thk

Sealing, oil, turbine shaft

1шт.

41

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

Turbine shaft

1шт.

42

L33466

HOUSING

CONVERTER AND TUBE ASSEMBLY - transmission, parts list Figure 178

1шт.

43

L33456

GEAR WHEEL

Turbine shaft, when stock is exhausted, order D61955 gear for service

1шт.

43

D61955

GEAR

Turbine shaft

1шт.

44

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining, gear

1шт.

45

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Valve mounting

9шт.

46

92-6

LOCK WASHER,3/8"

9шт.

47

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control, parts list page 204

1шт.

48

D55253

GASKET

Valve to converter, Serial Range: alternate-L33551

1шт.

49

211-11

BALL,3/8" Dia

Detent

2шт.

50

L33549

SPRING

Detent

2шт.

Desired, order 11403 spring.

1шт.

L33549 spring - If heavier spring is

1шт.

51

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

Bearing support

6шт.

52

92-7

LOCK WASHER,7/16"

6шт.

53

L33464

RING, SNAP

RING SNAP Retaining, drive gear

3шт.

54

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

Drive gear

3шт.

55

L33463

BRACKET

SUPPORT - bearing, drive gear

3шт.

56

L33465

GEAR WHEEL

DRIVE GEAR - transmission

3шт.

57

L33557

LOCK VALVE

REGULATOR, PUMP AND FILTER ASSEMBLY - transmission, parts list Figures 200

1шт.
