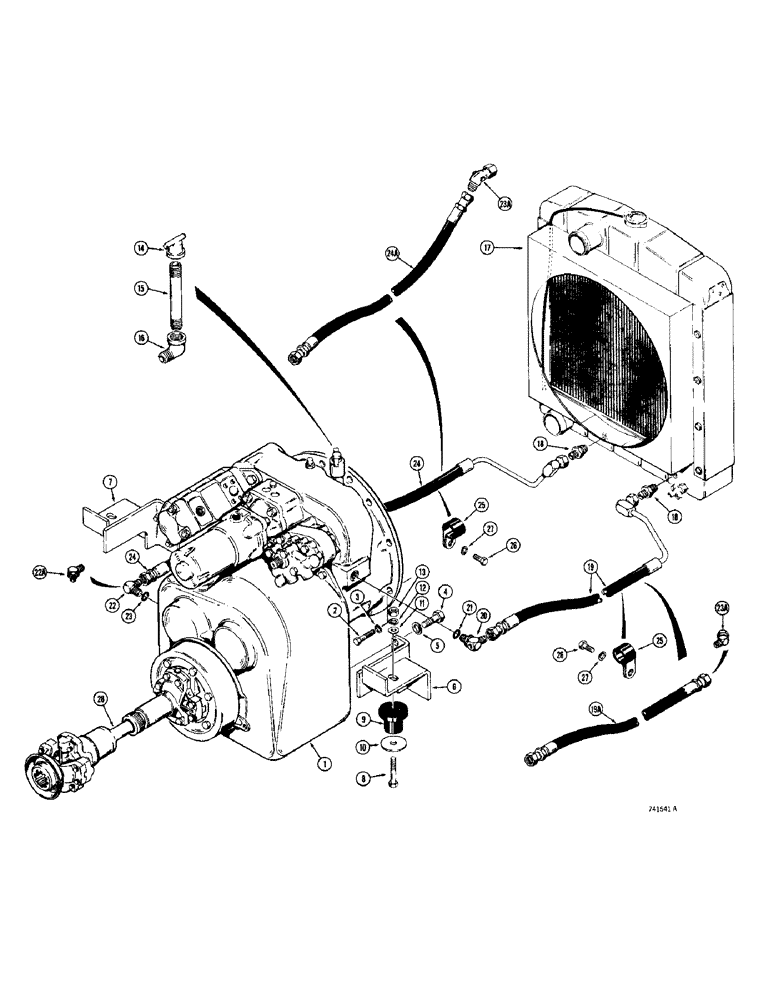

Запчасти Case 780 (168) - TRANS & RELATED PARTS, MOUNTING PARTS & FILLER TUBE (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - complete, see Figures 170 - 204 for complete transmission

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Transmission to flywheel housing

12шт.

3

92-6

LOCK WASHER,3/8"

12шт.

4

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

5

92-12

LOCK WASHER,3/4"

4шт.

6

L41867

SPARE PART Transmission, RH

1шт.

7

L41868

SPARE PART Transmission, LH

1шт.

8

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

2шт.

9

A19067

MOUNTING PARTS

CUSHION - rubber, transmission

2шт.

10

F41785

SPARE PART Special

2шт.

11

95-10

WASHER,5/8"

2шт.

12

92-10

LOCK WASHER,5/8"

2шт.

13

25-1010

NUT,5/8"-11, G5

2шт.

14

L45160

CAP

Filler tube, 3/4" NPT

1шт.

15

221-225

SPARE PART Pipe, (178 mm) long Nipple, 3/4" NPT x 7"

1шт.

16

221-415

ELBOW,90 Degree, 3/4"-14, NPT

1шт.

17

D53923

RADIATOR

Engine and transmission cooling, see Figure 10 for related parts

1шт.

18

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

FITTING - male, straight, at radiator, trans cooling hyd's

2шт.

19

L22061

SPARE PART Radiator from transmission, 50" (1270 mm) long, used with backhoe control towers, cooling hyd's

1шт.

19a

D70389

HOSE

Radiator from transmission, 48" (1219 mm) long, used with single backhoe control tower, cooling hyd's

1шт.

20

D56326

TEE

FITTING - hose and torque converter temperature gauge sending unit, trans cooling hyd's, Includes Ref. 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Trans cooling hyd's

1шт.

22

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , adjustable, trans cooling hyd's 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

22a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, if used, trans cooling hyd's, Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Trans cooling hyd's

1шт.

23a

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

Used on models with single backhoe control tower, trans cooling hyd's

2шт.

24

D53643

HOSE

SPARE PART Return, radiator to transmission, 48" (1219 mm) long, used with twin backhoe control towers, trans cooling hyd's

1шт.

24a

D70389

HOSE

Return, radiator to transmission, 48" (1219 mm) long, used with single backhoe control tower,cooling hyd's

1шт.

25

D40471

CLAMP

Transmission cooler hose, hyd's

2шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Trans cooling hyd's

2шт.

27

92-6

LOCK WASHER,3/8"

Trans cooling hyd's

2шт.

28

REF

INSTRUCTION

DRIVE SHAFT - rear axle, see Figure 212 for proper drive shaft

1шт.
