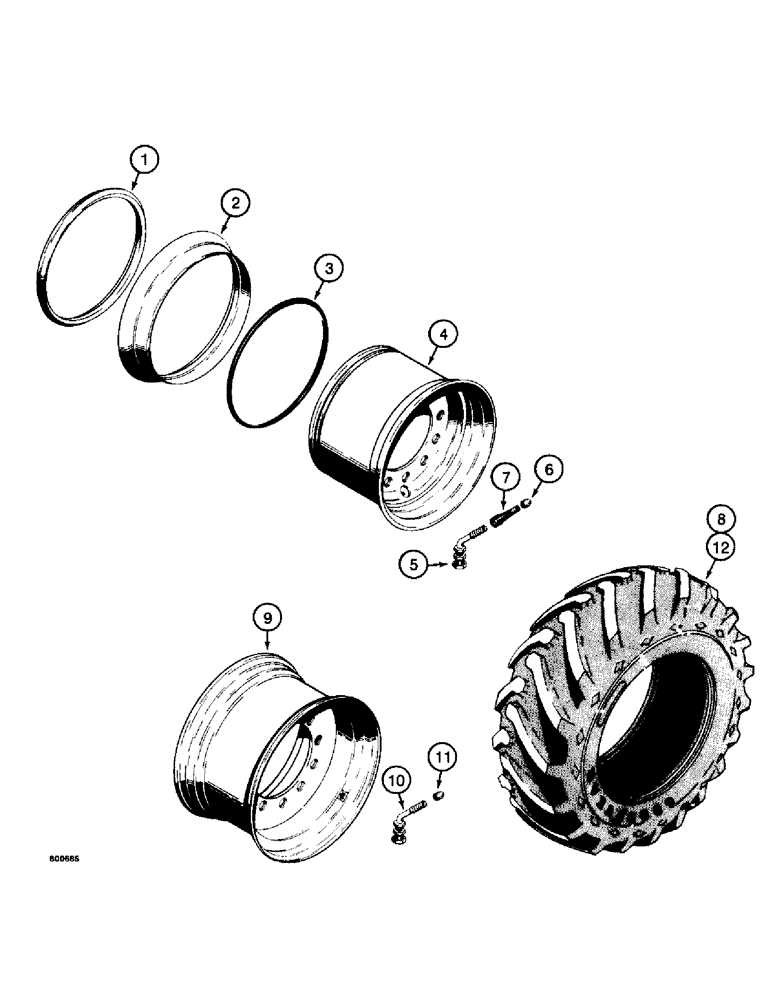

Запчасти Case 780 (166) - REAR WHEELS AND TIRES, USED ON MODELS WITH 17.5 X 25 TIRES (06) - POWER TRAIN

1

A19100

LOCKING RING

lock, rim

2шт.

2

A19099

RING

side, rim

2шт.

3

A19101

O-RING,6.6mm Thk x 590.55mm ID

rim

2шт.

4

L21250

RIM - rear 10-bolt rim, used with D54477 and D54478 axles

2шт.

For rear axles, see Figures 214 - 232.

1шт.

4

D54538

WHEEL (STEERING)

RIM - rear 10-bolt rim, used with D86494 axle only

2шт.

For rear axles, see Figures 214 - 232.

1шт.

5

L11405

VALVE

tire, Includes: Ref. 6

2шт.

6

L33706

VALVE

CAP -( replaced L19664 )

2шт.

7

L11406

ADAPTER

tire valve

2шт.

8

REF

INSTRUCTION

TIRE - rear

2шт.

9

L46088

RIM - rear

2шт.

For rear axles, see Figures 214 - 232.

1шт.

10

A20058

VALVE STEM

Used on models w/ 18.4 x 28 tires w/ non-turbocharged eng., Includes: Ref. 11

2шт.

11

L19664

VALVE STEM

CAP - valve, used on models w/ 18.4 x 28 tires w/ non-turbocharged eng.

2шт.

12

REF

INSTRUCTION

rear, used on models w/ 18.4 x 28 tires w/ non-turbocharged eng.

2шт.

9

D54537

WHEEL

RIM - rear l, used on models w/ 18.4 x 28 tires w/ 2.76 trans ratio and turbocharged eng., must be 4ft extendable

2шт.

For rear axles, see Figures 214 - 232.

1шт.

10

A20058

VALVE STEM

Used on models w/ 18.4 x 28 tires w/ 2.76 trans ratio & turbocharged eng. , must be 4 ft extendable, Includes: Ref. 11

2шт.

11

L19664

VALVE STEM

CAP - valve, used on models w/ 18.4 x 28 tires w/ 2.76 trans ratio & turbocharged eng., must be 4ft extendable

2шт.

12

REF

INSTRUCTION

rear, used on models w/ 18.4 x 28 tires w/ 2.76 trans ratio & turbocharged eng., must be 4ft extendable

2шт.

9

L43880

WHEEL

RIM - rear, used with D54477 and D54478 axles, 18.4 x 24 tires

2шт.

For rear axles, see Figures 214 - 232.

1шт.

9

D54536

WHEEL

RIM - rear , used with D86494 axle only, 18.4 x 24 tires

2шт.

For rear axles, see Figures 214 - 232.

1шт.

10

A20058

VALVE STEM

Tire, 18.4 x 24, Includes: Ref. 11

2шт.

11

L19664

VALVE STEM

CAP - valve, 18.4 x 24 tires

2шт.

12

REF

INSTRUCTION

TIRE - rear, 18.4 x 24

2шт.

9

D54751

WHEEL

RIM - rear, 10-bolt rim, 21L x 24 tires

2шт.

For rear axles, see Figures 214 - 232.

1шт.

10

A20058

VALVE STEM

Tire, 21L x 24, Includes: Ref. 11

2шт.

11

L19664

VALVE STEM

CAP - valve, 21L x 24 tires

2шт.

12

REF

INSTRUCTION

TIRE - rear, 21L x 24

2шт.
