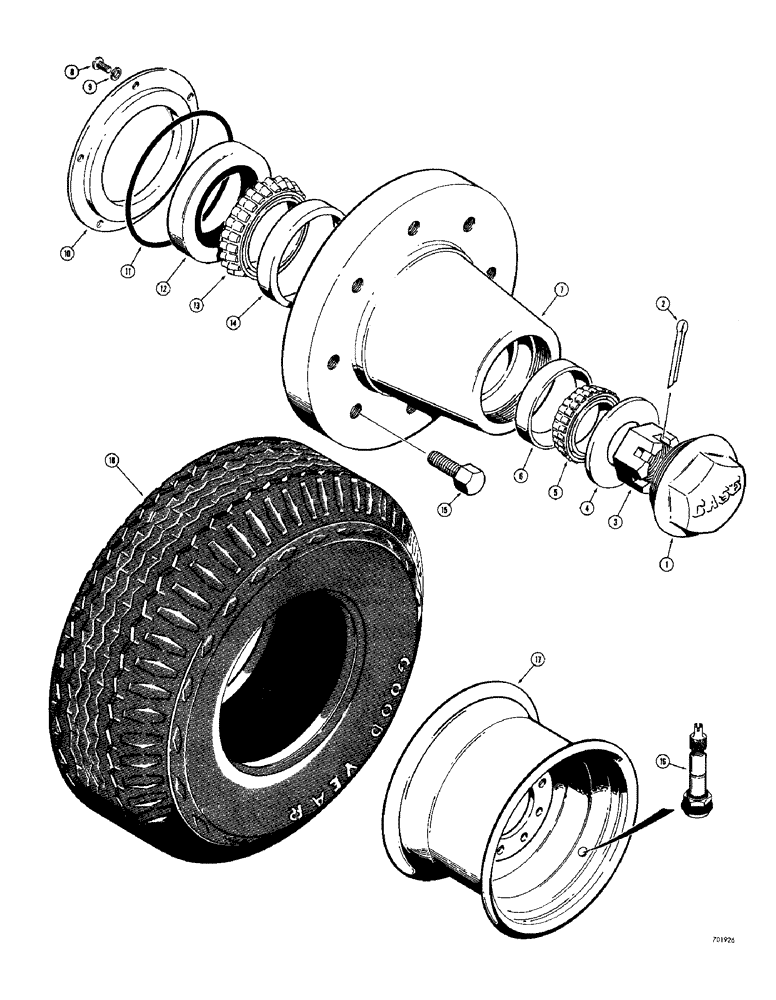

Запчасти Case 780 (164) - FRONT WHEELS & TIRES (05) - STEERING

1

A26011

CAP

Hub

2шт.

2

132-97

COTTER PIN,3/16" x 1 3/4"

2шт.

3

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

2шт.

4

A26789

BEARING WASHER

Thrust, outer bearing

2шт.

5

F62052

ROLLER BEARING

CONE - outer, 1-3/8" I.D.

2шт.

6

A27734

BEARING CUP

Bearing, outer

2шт.

7

D54486

HUB

Front wheel, Includes Refs. 6 and 14

2шт.

8

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

Machine

10шт.

9

92-4

LOCK WASHER,1/4"

10шт.

10

A27736

RETAINER

Seal

2шт.

11

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

12

A27735

SEAL

Bearing

2шт.

13

A27733

ROLLER BEARING,57.2 mm ID x 31 mm

Bearing, inner, 2-1/4" I.D.

2шт.

14

A27732

BEARING CUP

Bearing, inner

2шт.

15

G49036

WHEEL BOLT

Front rim mounting, used on models w/ 9.00 x 20 tires

16шт.

16

RESERVED, used on models w/ 9.00 x 20 tires

2шт.

17

L43399

SPARE PART RIM - front used on models w/ 9.00 x 20 tires

2шт.

18

REF

INSTRUCTION

Front, used on models w/ 9.00 x 20 tires

2шт.

15

G49036

WHEEL BOLT

Front rim mounting, used on models w/ 14.00 x 17.5 tires

16шт.

16

A20058

VALVE STEM

Used on models w/ 14.00 x 17.5 tires

2шт.

17

L41877

WHEEL

RIM - front, used on models w/ 14.00 x 17.5 tires

2шт.

18

REF

INSTRUCTION

Front, used on models w/ 14.00 x 17.5 tires

2шт.
