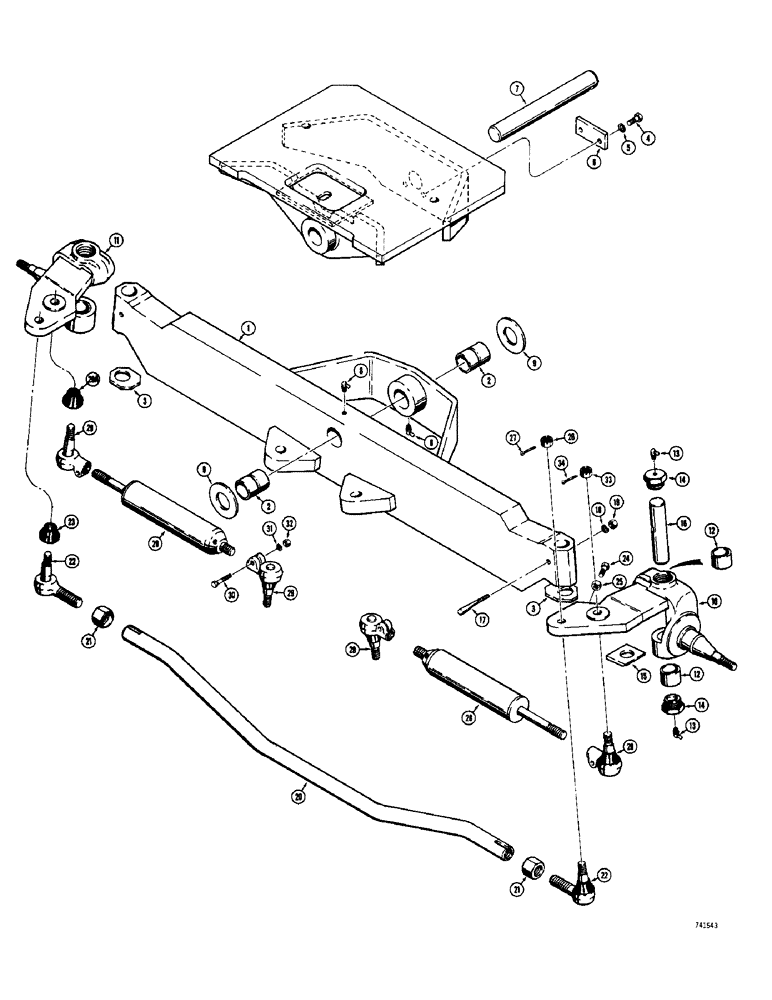

Запчасти Case 780 (162) - FRONT AXLE AND SPINDLES, USED ON MODELS WITH SINGLE BACKHOE CONTROL TOWER (05) - STEERING

1

D63090

SPARE PART Front steering, Includes Ref. 2 and 3

1шт.

2

D95363

BUSHING

Axle pivot

2шт.

3

L17795

PLATE

Thrust, Serial Range: spindle-axle

2шт.

4

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

D58533

SPARE PART Pivot pin retaining

1шт.

7

D58534

PIN

SPARE PART Pivot, Serial Range: axle-chassis

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9

D37449

SHIM,.0747" Thk

WASHER - trunnion thrust

1шт.

10

L17853

SPARE PART Steering, RH

1шт.

11

L17367

SPINDLE

Steering, LH, Includes Ref. 12

1шт.

12

L17786

BUSHING

Steering spindle

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

4шт.

14

A27731

PLUG

Steering spindle

4шт.

15

L26396

PLATE

Thrust, lower

2шт.

16

L20353

PIN

KING - steering spindle

2шт.

17

D64578

SPECIAL PIN

Lock, king, Serial Range: pin-axle

2шт.

18

92-10

LOCK WASHER,5/8"

2шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

Hex

2шт.

20

L23547

ROD

TIE - steering

1шт.

21

L23542

LOCK NUT

Lock, ball joint

2шт.

22

L23320

JOINT

BALL - tie rod to spindle arms

2шт.

23

L32972

SEAL

Boot, ball joint

1шт.

24

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Steering arm stop

2шт.

25

25-1110

NUT,5/8"-18, G5

NUT, Hex, 5/8" - 11 NC

2шт.

26

25-1314

SLOTTED NUT,7/8"-14, G5

Hex

2шт.

27

132-52

COTTER PIN,1/8" x 1 1/2"

2шт.

28

REF

INSTRUCTION

CYLINDER - steering, parts list Figure 158

2шт.

29

L23674

END

BALL JOINT - steering cylinders to spindles, Includes Ref. 29A

4шт.

29a

D66251

SEAL

Boot, ball joint

1шт.

30

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

Hex

4шт.

33

25-1314

SLOTTED NUT,7/8"-14, G5

Hex

4шт.

34

132-52

COTTER PIN,1/8" x 1 1/2"

4шт.
