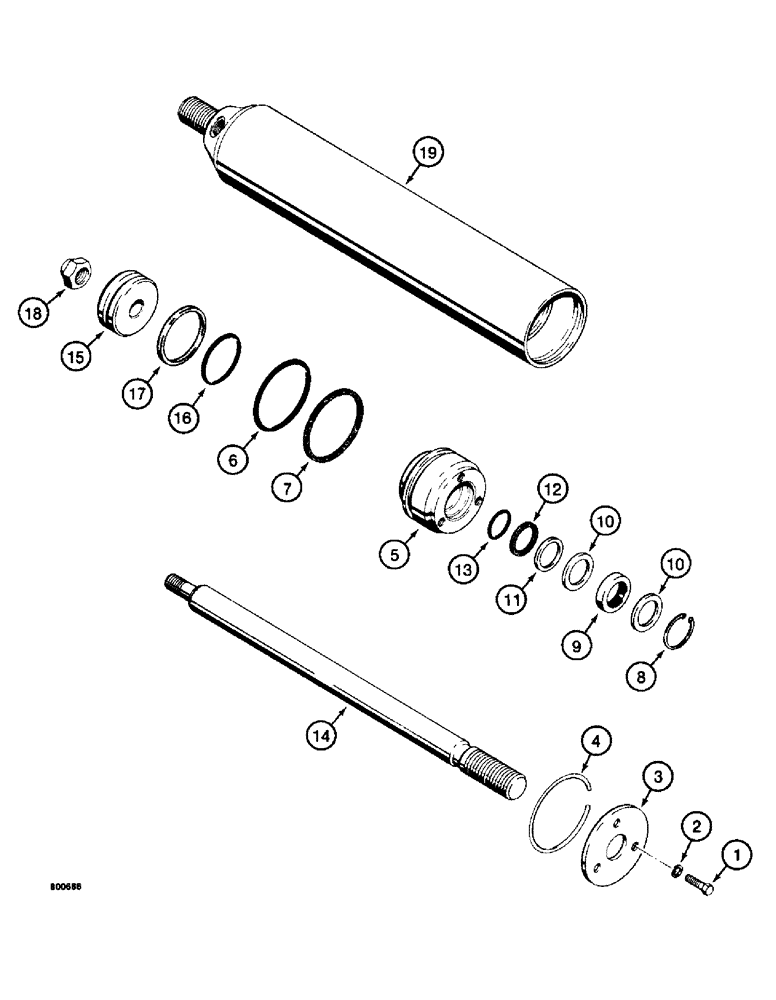

Запчасти Case 780 (158) - STEERING CYLINDERS (05) - STEERING

L12173

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 19

2шт.

1

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

2

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

3

A16632

LARGE PLATE

PLATE - cylinder end

1шт.

4

A16634

RING

- retaining, gland

1шт.

L30780

GLAND

ASSEMBLY - packing, Includes: Ref. 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - packing

1шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland to tube

1шт.

7

A16633

RING

- backup

1шт.

8

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal, outer

1шт.

9

A7090

OIL SEAL

SEAL - gland

1шт.

10

A16637

WASHER

RING - backup, gland seal

2шт.

11

A16636

RING

- seal retaining, inner

1шт.

12

A16635

GASKET

RING - backup, seal

1шт.

13

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

1шт.

L30776

PISTON

AND ROD ASSEMBLY - cylinder, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

15

L30777

PISTON - cylinder

1шт.

16

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

RING - piston

1шт.

17

L30779

PACKING

- piston

1шт.

18

131-74

LOCK NUT,1/2"-20

NUT - hex, self lock, 1/2" - 20 NF

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE - cylinder, steering

1шт.
