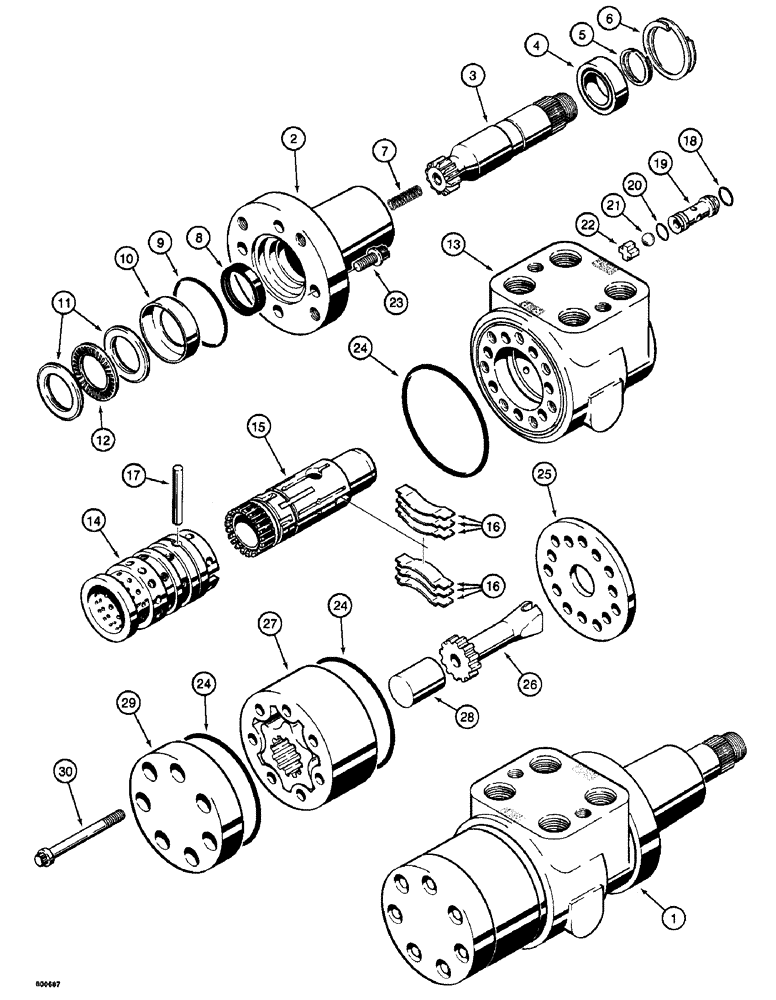

Запчасти Case 780 (156) - D81605 STEERING CONTROL VALVE (05) - STEERING

1

D81605

PUMP

VALVE ASSEMBLY - steering, manual, Includes: Ref. 2 - 30

1шт.

2

L30879

STEERING COLUMN

COLUMN - control

1шт.

3

N6293

SHAFT - control

1шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

SHAFT - control shaft

1шт.

5

F53335

RING, SNAP

RETAINER - ring, shaft

1шт.

6

L30882

SNAP RING,#137, 1.461", Int, Spiral

RETAINER - ring, bore

1шт.

7

N6294

SPRING - ball check

1шт.

8

A72029

RING

QUAD RING - control column

1шт.

9

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- bushing

1шт.

10

D51218

BEARING

LOCATOR, for service use L35676 bearing

1шт.

11

D51219

WASHER

BEARING - race, for service use L35676 bearing

2шт.

12

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Needle

1шт.

N6292

CONTROL

ASSEMBLY - valve, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - control

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

15

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

16

L30889

SPRING

- centering

6шт.

17

L30888

PIN

- centering

1шт.

18

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

19

D82806

VALVE SEAT

SEAT - ball check

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

- plug, 7/16 x 5/16 x 1/16 in

1шт.

21

211-208

BALL,5/16" Dia

- check

1шт.

22

L35368

RETAINER

- ball check

1шт.

23

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap, 5/16" - 18 NC x 5/8"

4шт.

24

S5633

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

3шт.

25

S113037

PLATE

- spacer

1шт.

26

L30878

DRIVE SHAFT

DRIVE - control end

1шт.

27

N6291

GEAR - control

1шт.

28

L33444

SPACER

- control

1шт.

29

D82809

COVER

CAP - end

1шт.

30

166-531

SCREW - ferry cap, 5/16" - 24 NF x 2-1/2"

7шт.
