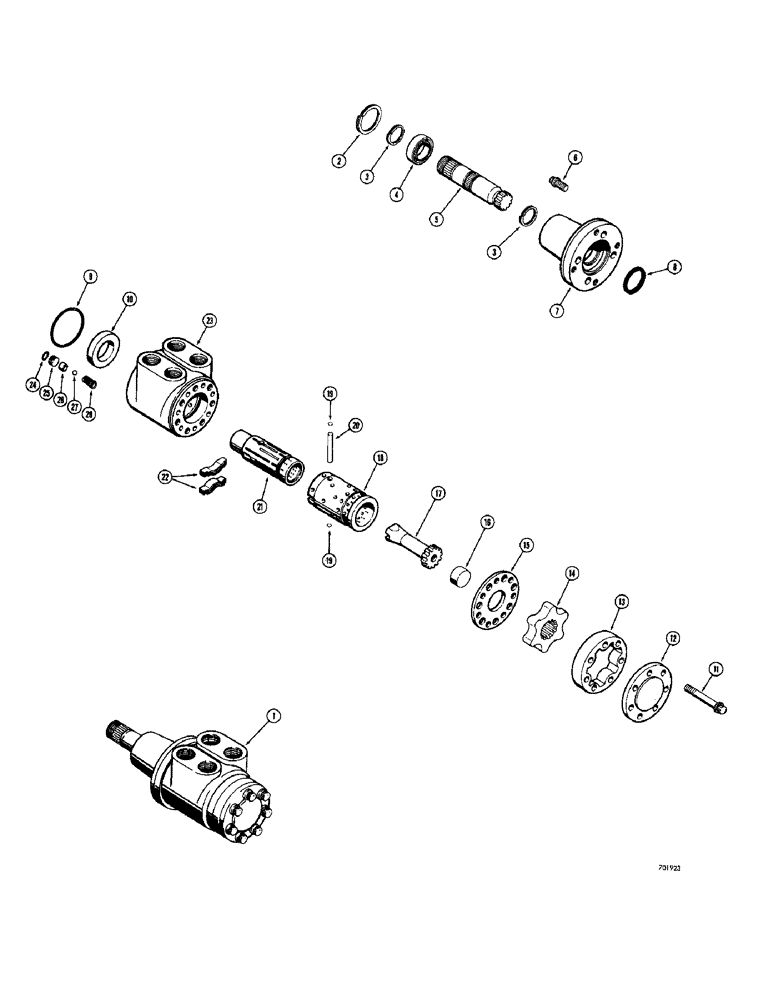

Запчасти Case 780 (154) - L17162 STEERING CONTROL VALVE (05) - STEERING

1

L17162

PUMP

VALVE ASSEMBLY - steering, manual, Includes: Ref. 2 - 28

1шт.

2

L30882

SNAP RING,#137, 1.461", Int, Spiral

RETAINER - bearing, outer

1шт.

3

F53335

RING, SNAP

RETAINER - bearing, inner

2шт.

4

L30881

BALL BEARING,22.4mm ID x 35.8mm OD x 9.6mm W

- control shaft

1шт.

5

L30880

SHAFT

- control

1шт.

6

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - ferry cap, 5/16" - 18 NC x 5/8"

4шт.

7

L30879

STEERING COLUMN

COLUMN - control

1шт.

8

A72029

RING

QUAD RING - control column

1шт.

9

A17528

O-RING,1.737" ID x 1.943" OD x 0.103"

- bushing

1шт.

10

A72030

SPACER

BUSHING - cap locating

1шт.

11

166-531

SCREW - ferry cap, 5/16" - 24 NC x 2-1/2"

7шт.

12

A72024

CAP

- end

1шт.

L33443

GEAR SET - control, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - gear

1шт.

14

NSS

NOT SOLD SEPARAT

STAR - gear

1шт.

15

A72026

PLATE

- spacer

1шт.

16

L33444

SPACER

- control

1шт.

17

L30878

DRIVE SHAFT

DRIVE - control end

1шт.

L33445

CONTROL BLOCK

CONTROL ASSEMBLY - valve, Includes: Ref. 18 - 28

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

19

L30894

PIN

DISC - centering pin

2шт.

20

L30888

PIN

- centering

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

22

L30889

SPRING

- centering

6шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - control

1шт.

24

L30893

O-RING,1/16" Thk x 5/16" ID

- plug, 7/16 x 5/16 x 1/16 in

1шт.

25

L30892

PLUG

- seal, housing

1шт.

26

L30891

SEAT

- check

1шт.

27

211-101

BALL,1/4" Dia, Stainless

1шт.

28

L30890

VALVE SPRING

SPRING - check ball

1шт.
