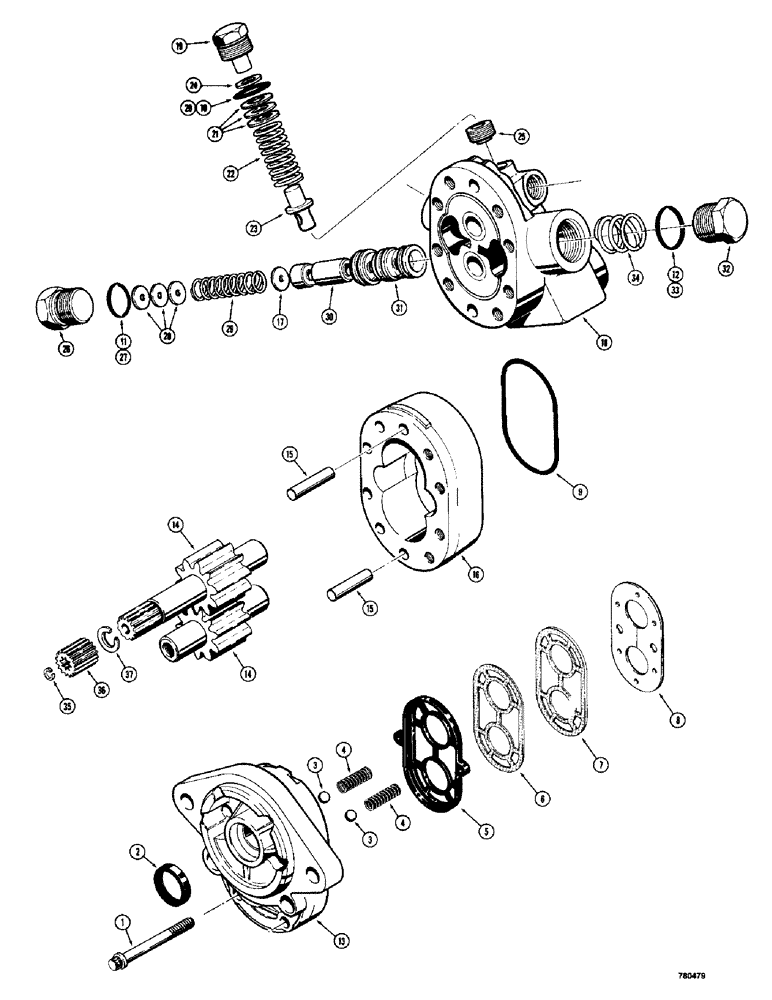

Запчасти Case 780 (152) - POWER STEERING PUMP (05) - STEERING

L18975

PUMP, HYDRAULIC

PUMP ASSEMBLY - power steering, Includes: Ref. 1 - 34

1шт.

1

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

SCREW - socket head, 12 point, 5/16" - 18 NC x 2-3/4"

8шт.

L33601

KIT

- repair, seal, when stock is exhausted, order F88938 for service

1шт.

F88938

GASKET KIT

KIT - repair, seal, Includes: Ref. 2 - 12

1шт.

2

F11406

SEAL

- drive shaft

1шт.

3

211-306

BALL,7/32" Dia

- steel, 7/32"

2шт.

4

F9883

SPRING

- ball retaining

2шт.

5

H262469

SEAL

- diaphragm

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

7

NSS

NOT SOLD SEPARAT

PROTECTOR - gasket

1шт.

8

D77645

DIAPHRAGM

- pump

1шт.

9

F30415

O-RING,3" ID

- pump body to port end cover

1шт.

10

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- 3/32" x 7/16" I.D.

1шт.

12

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- 3/32" x 7/8" I.D.

1шт.

13

F79198

PLATE ASSY.

COVER - pump, shaft end

1шт.

14

L33492

GEAR-SET

GEAR SET - drive and driven, matched set

1шт.

15

L33494

PIN,12.7mm OD x 63.5mm L

- dowel, end cover to pump body

2шт.

16

D56912

HOUSING

BODY - pump

1шт.

17

L33497

DISC - spring retainer

1шт.

L33602

KIT - repair, rear cover, Includes: Ref. 18 - 34

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - pump, port end

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - relief valve

1шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

1шт.

21

F12267

WASHER

SHIM - adjustment

1шт.

22

L33609

SPRING

- poppet

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

SHIM - poppet

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - retainer, spool spring

1шт.

27

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM - adjustment

1шт.

29

L33610

SPRING

- spool

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - flow divider

1шт.

31

NSS

NOT SOLD SEPARAT

SLEEVE - spool

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - retainer, sleeve spring

1шт.

33

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

34

F21353

SPRING

- sleeve

1шт.

L33455

HUB CAP

HUB ASSEMBLY - drive gear, Includes: Ref. 35 - 37

1шт.

35

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

36

NSS

NOT SOLD SEPARAT

HUB - drive gear

1шт.

37

A18024

RING, SNAP

RING - retaining, external

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 3/32" x 5/8" I.D.

1шт.
