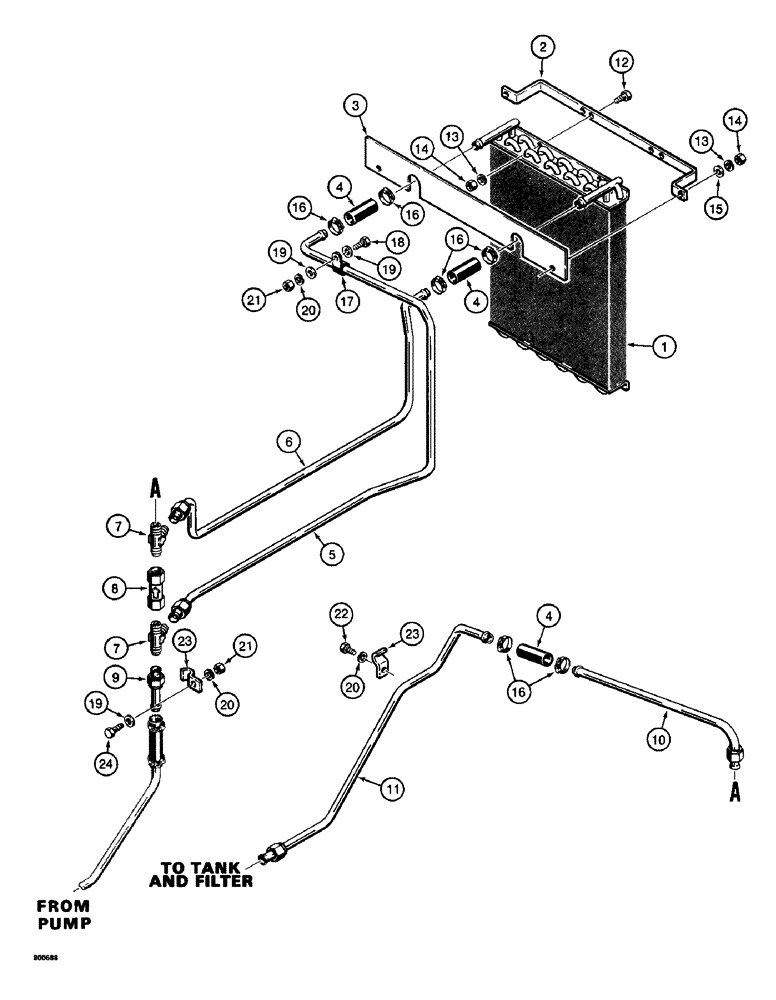

Запчасти Case 780 (150) - POWER STEERING COOLER CIRCUIT, USED ON TRACTOR SN 5502546 & AFT (05) - STEERING

1

D76096

COOLER

- hydraulic oil

1шт.

2

D89858

BRACKET - mounting, cooler

2шт.

3

D89973

BAFFLE - air deflector

1шт.

4

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

3шт.

5

D89883

TUBE - cooler, in

1шт.

6

D89881

TUBE - cooler, out

1шт.

7

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

- valve relief

2шт.

8

R27233

VALVE

- relief

1шт.

9

D89896

TUBE - from pump

1шт.

10

D91298

TUBE -, Serial Range: tee-reservoir

1шт.

11

D91300

TUBE, Serial Range: --reservoir

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

13

92-5

LOCK WASHER,5/16"

8шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

8шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

16

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6шт.

17

51200329

CLIP

CLAMP - tube

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

23

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube

2шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.
