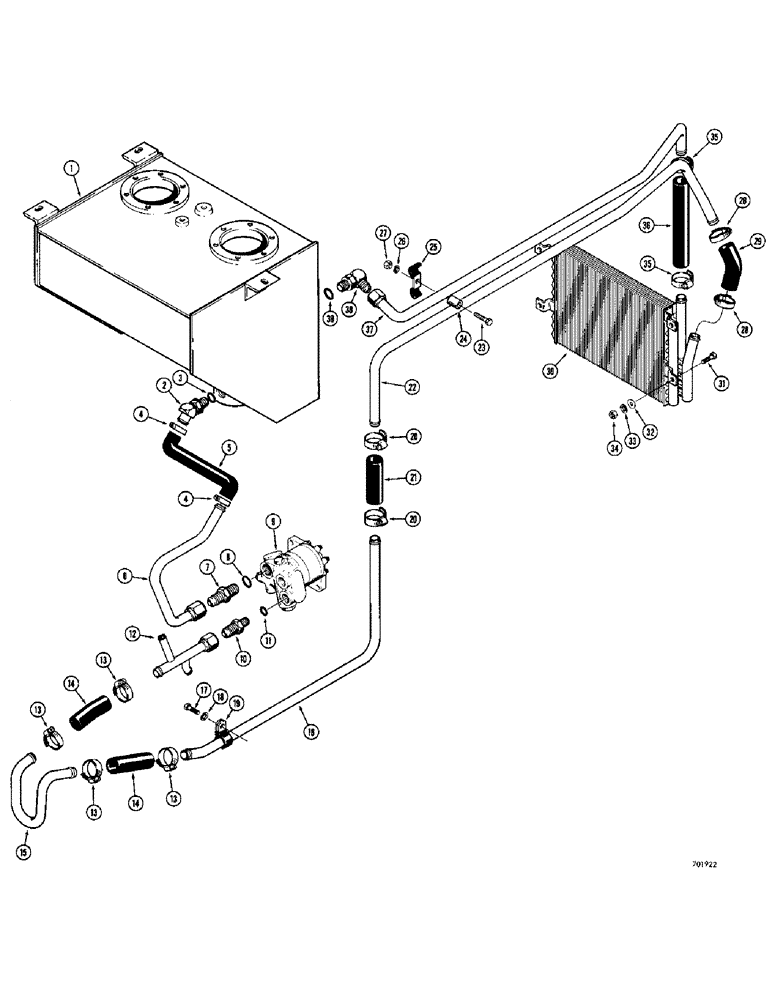

Запчасти Case 780 (146) - POWER STEERING COOLER CIRCUIT, BEFORE TRACTOR SN. 5500550 (05) - STEERING

1

L18650

TANK - hydraulic reservoir, see Figure 546 for filters and related parts

1шт.

2

R22429

FITTING

- hose, adjustable, 45 degrees, Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

5

L45481

- low pressure, hydraulic reservoir to power steering pump

1шт.

6

L19293

TUBE - hydraulic reservoir to power steering pump 0.75" OD

1шт.

7

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - male, straight, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.

9

L18975

PUMP, HYDRAULIC

PUMP - power steering, parts list Figure 152

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

12

L19292

TUBE - special, at power steering pump

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

14

D24728

HOSE

- low pressure, pump to oil cooler, 3/4" (19 mm) I.D. x 4-1/2" (114 mm) long

2шт.

15

L45480

TUBE - power steering pump to oil cooler, rear

1шт.

16

L43551

TUBE - power steering pump to oil cooler, intermediate

1шт.

17

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

A21633

CLAMP - tube

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

21

R14170

HOSE

- intermediate to front cooler tube

1шт.

22

L43554

TUBE - power steering pump to oil cooler, front

1шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

24

D36040

BUSHING

SPACER - tube clamp

2шт.

25

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

29

R14170

HOSE

- low pressure, front tube to cooler, 3/4" (19 mm) I.D. x 5" (127 mm) long

1шт.

30

L43582

COOLER

- hydraulic oil

1шт.

31

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

131-607

NUT

- Tinnerman, 5/16" - 18 NC

4шт.

35

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

36

D95231

LARGE HOSE

HOSE - low pressure, oil cooler to reservoir, 3/4" (19 mm) I.D. x 8" (203 mm) long

1шт.

37

L43553

TUBE - oil, Serial Range: cooler-reservoir

1шт.

38

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 39 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Fitting

1шт.
