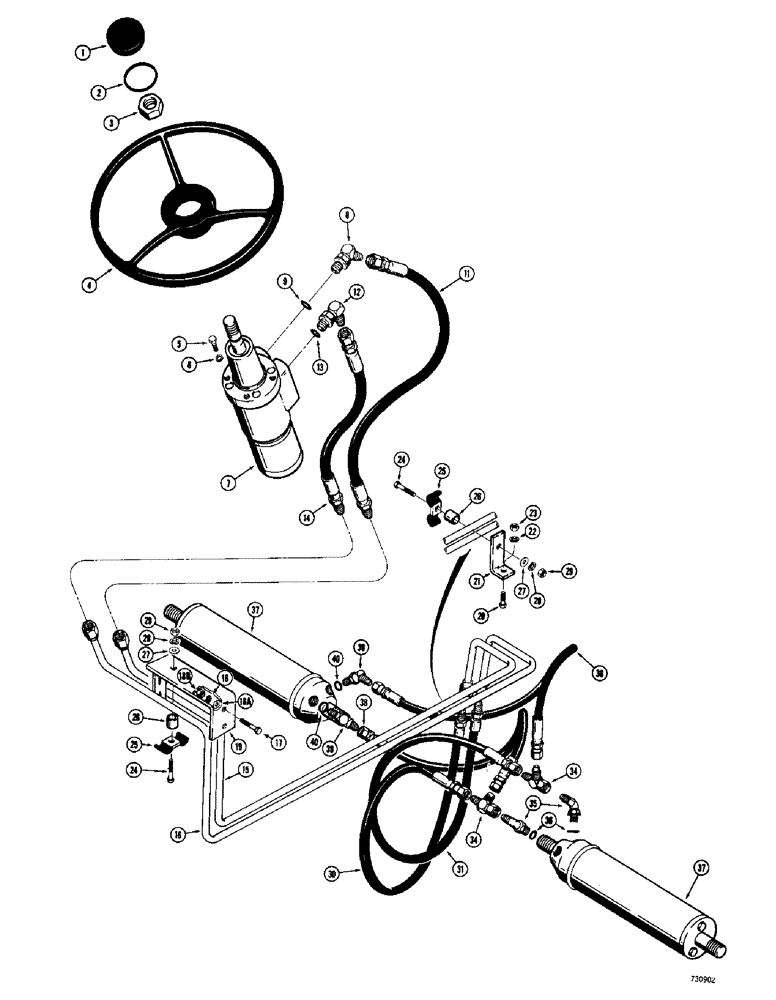

Запчасти Case 780 (144) - STEERING HYDRAULIC CIRCUIT - VALVE TO CYLINDERS (05) - STEERING

1

A38785

CYLINDER END CAP

CAP - for 18" (457 mm) diameter wheel, if used

1шт.

1

A62210

PLUG

CAP - for 15" (381 mm) diameter wheel, if used

1шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- cap, 18" (457 mm) diameter wheel, if used

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- cap, 15" (381 mm) diameter wheel, if used

1шт.

3

A14567

JAM NUT

-, Serial Range: wheel-valve

1шт.

4

A35602

STEERING WHEEL

WHEEL - steering, 18" (457 mm) diameter, if used

1шт.

4

A65544

STEERING WHEEL

15" (381 mm) diameter, if used

1шт.

5

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

6

92-5

LOCK WASHER,5/16"

3шт.

7

L17162

PUMP

VALVE - steering, parts list Figure 154, used before SN 5502126

1шт.

7

D81605

PUMP

VALVE - manual steering, parts list Figure 156, used on SN 5502126 and after

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - adjustable, 45 degrees, Incl. Ref 9

1шт.

10

RESERVED

1шт.

11

L19297

HOSE,0.50" ID x 40.00", SAE 100R1

ASSY, , From Valve 0.50" ID x 40.00", SAE 100R1

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 13 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

14

L45337

HOSE ASSY.

HOSE - from valve, 34" (864 mm) long

1шт.

15

L19299

TUBE,0.5" OD

- valve to steering cylinder

1шт.

16

L19391

TUBE - valve to steering cylinder 0.5" OD

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

18a

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

18b

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

19

D54927

BRACKET

- clamp, upper, used before tractor SN. 5500303

1шт.

19

D54886

BRACKET

- clamp, upper, tractor SN. 5500303 - 5500549

1шт.

19

D56095

BRACKET

- clamp, upper, tractor SN. 5500550 and after

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16" - 18 NC x 1-1/4", if used

1шт.

21

L43690

BRACKET - clamp, lower, if used

1шт.

22

92-5

LOCK WASHER,5/16"

is used 5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

1шт.

24

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16" - 18 NC x 1-3/8"

2шт.

25

A12032

CLAMP

- tube

2шт.

26

D34162

SPACER

- tube

2шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

30

L42761

HOSE - to cylinders, 15-5/16", (389 mm) long, if used

1шт.

30

D61447

HOSE ASSY.

HOSE - to cylinders, 22" (559 mm) long, if used

1шт.

31

L42762

HOSE

- to cylinders, 17-5/16", (440 mm) long, if used

1шт.

31

D61448

HOSE - to cylinders, 24" (610 mm) long, if used

1шт.

32

RESERVED

1шт.

33

RESERVED

1шт.

34

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

three-way 37º, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

35

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable, 45 degrees, R.H. and L.H. cylinders, Includes: Ref. 36

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

37

L12173

CYLINDER

- steering, parts list Figure 158

2шт.

38

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , To L.H. Cylinder 0.38" ID x 18.75", SAE 100R1

2шт.

39

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

FITTING - adjustable, 45 degrees, Includes: Ref. 40

2шт.

40

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
