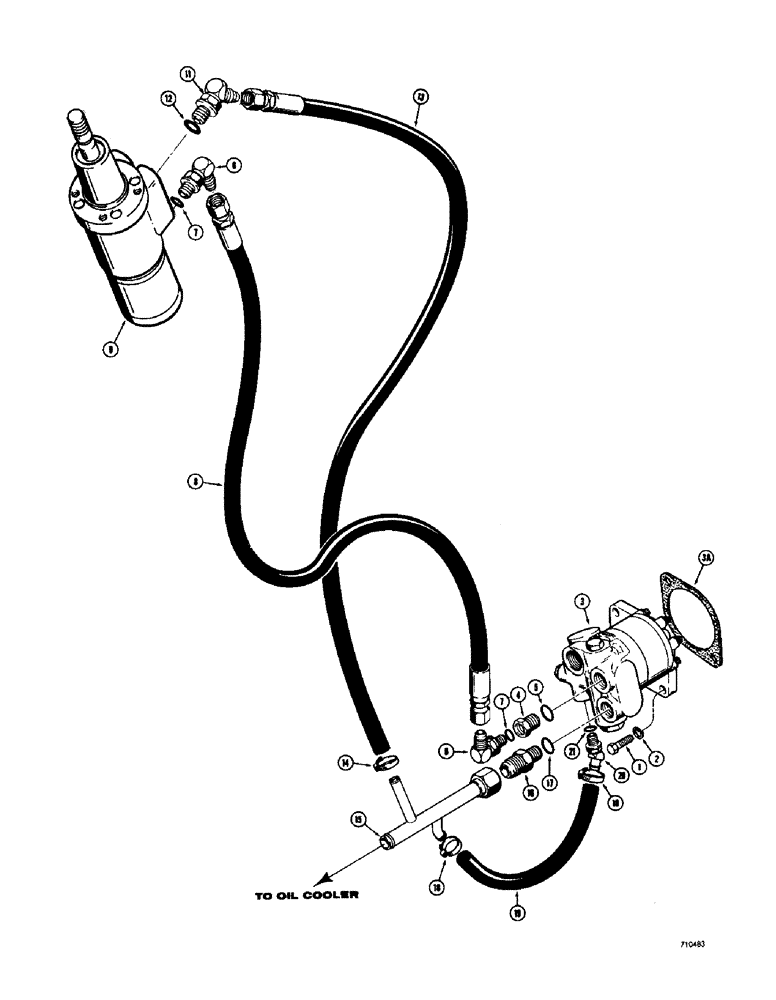

Запчасти Case 780 (142) - STEERING HYDRAULIC CIRCUIT - PUMP TO VALVE (05) - STEERING

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

L18975

PUMP, HYDRAULIC

PUMP - power steering, parts list on Figure 152

1шт.

3a

A58617

GASKET

-, Serial Range: pump-transmission

1шт.

4

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

FITTING - female, straight, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 7 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

8

L19296

HOSE

- power steering pump to manual steering valve, pressure line, 43" (1092 mm) long

1шт.

9

L17162

PUMP

VALVE - manual steering, parts list Figure 154, used before SN 5502126

1шт.

9

D81605

PUMP

VALVE - manual steering, parts list Figure 156, used on SN 5502126 and after

1шт.

10

RESERVED

1шт.

11

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

FITTING - adjustable, 45 degrees, Incl. Ref 12

1шт.

13

L19295

HOSE ASSY.

HOSE - manual steering valve return, 51" (1295 mm) long

1шт.

14

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

1шт.

15

L19292

TUBE - special, at power steering pump

1шт.

16

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

FITTING - male, straight, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

18

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

2шт.

19

L19388

HOSE,0.38" ID x 7.00"

SAE 100R6, Low Pressure Return 0.38" ID x 7.00"

1шт.

20

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

STEM - hose, 45 degrees, Includes: Ref. 21

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, fitting

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- fitting

1шт.
