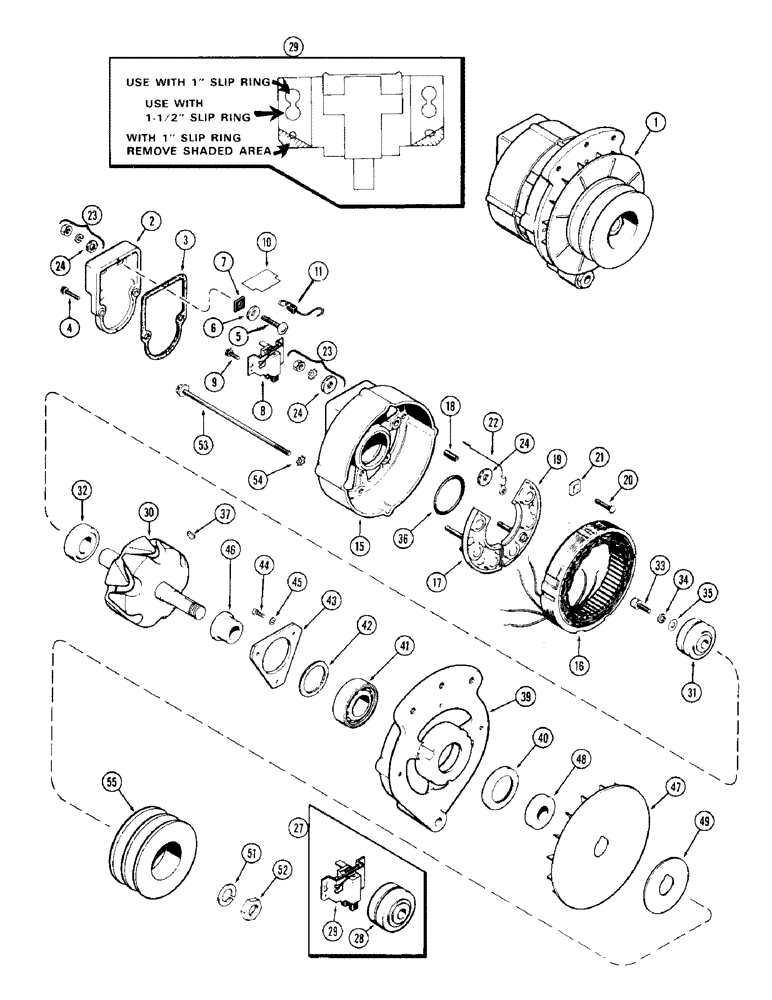

Запчасти Case 780 (140) - A41360 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A47432

ALTERNATOR

Alternator Assembly - remanufactured, Includes: Ref. 2 - 54

1шт.

A47433

CORE-ALTERNATOR

Return Number - use this part no. to return alternator core for credit, Includes: Ref. 2 - 54

1шт.

1

A41360

ALTERNATOR

ALTERNATOR ASSEMBLY - new (24 volt, 35 ampere) (Motorola #MH24N-901) (Without pulley), Includes: Ref. 2 - 54

1шт.

A167152

ALTERNATOR

ALTERNATOR - 24 Volt 40 AMP

1шт.

104260A1R

REMAN-ALTERNATOR

Remanufactured 24 VOLT, 40 AMP Alternator

1шт.

104260A1C

CORE-ALTERNATOR

Return Number, 24 VOLT, 40 AMP Alternator

1шт.

2

A41435

COVER ASSY

COVER - rear housing

1шт.

3

A41341

GASKET

GASKET - cover

1шт.

4

187-482

SPARE PART SCREW - #8 x 3/4" self-tapping

2шт.

5

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

1шт.

6

G49045

WASHER

WASHER - 1/4 x 5/8 x 1/16" (6.35 x 15.87 x 1.59 mm)

1шт.

7

A41041

INSULATOR

INSULATOR - alternator brush

1шт.

8

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER SSEMBLY - with brushes (See Ref. 27)

1шт.

9

187-480

SCREW,Hex Hd, #8 x 1/2"

SCREW - holder (#8 x 1/2" self-tapping)

2шт.

10

A41042

INSULATOR

INSULATOR - brush shunt lead

1шт.

11

A41046

ELECTRICAL WIRE

WIRE CABLE - internal field

1шт.

15

A41045

COVER

HOUSING - rear

1шт.

16

A42809

STATOR

STATOR ASSEMBLY

1шт.

17

A42808

DIODE

DIODE ASSEMBLY - negative (Black)

1шт.

18

A41040

INSULATOR

SLEEVE - insulation (3/16 x 1/4 x 68" nylon) (Cut to length required)

1шт.

19

A41443

DIODE ELEMENT

DIODE ASSEMBLY - positive (Red) (Order A47616)

1шт.

20

A41436

SCREW

STUD - rectifier ring

1шт.

21

A41041

INSULATOR

INSULATOR - rectifier stud

1шт.

22

A41432

CABLE PULLING GRIP

CABLE - phase tap

7шт.

23

A41060

LOCK NUT

LOCKNUT PACKAGE, Includes: Ref. 24

7шт.

24

A47612

WASHER

WASHER - 3/16 x 3/4 x 1/16" (4.76 x 19.05 x 1.59 mm)

7шт.

27

A44580

SLIP RING

KIT - slip ring and brush holder replacement, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

RING - slip, 1" diameter (25.4 mm) (See inset)

1шт.

29

A41048

BRUSH, COMMUTATOR

BRUSH HOLDER ASSEMBLY - brush (See inset)

1шт.

30

A42807

ROTOR

ROTOR ASSEMBLY, Includes: Ref. 31 - 35

1шт.

31

NSS

NOT SOLD SEPARAT

RING SLIP - 1-1/2" diameter (38.1 mm) (Order Ref. 27)

1шт.

32

A42810

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - sealed

1шт.

33

163-4

SCREW,Hex, #10 - 32 x 5/8"

SCREW - #10 x 5/8" socket head

1шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

35

A42811

SPARE PART INSULATOR - washer

1шт.

36

A42806

RING

RETAINER - rear bearing

1шт.

37

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

39

A41437

HOUSING

HOUSING - front

1шт.

40

A41047

SEAL ASSY.

SEAL - bearing

1шт.

41

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - sealed

1шт.

42

A41039

RETAINER

WASHER - 1-1/4 x 1-5/8 x 1/8" (31.75 x 41.27 x 3.17 mm)

1шт.

43

A41050

SPARE PART RETAINER - front bearing

1шт.

44

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

SCREW - #8 x 3/8" NC slotted pan head

3шт.

45

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

3шт.

46

A41052

SLEEVE

SLEEVE - shaft

1шт.

47

A42431

FAN

FAN - alternator

1шт.

48

A42432

SPACER

SPACER - fan

1шт.

49

A41051

SPACER

SPACER - pulley

1шт.

51

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

52

A41035

NUT

NUT - 5/8" NC hex

1шт.

53

A41037

BOLT

BOLT - through

4шт.

54

193-41

WASHER,Ext-Int Tooth, #8

WASHER, LOCK, Ext-Int Tooth, #8

4шт.

55

A41057

PULLEY

PULLEY - alternator

1шт.
