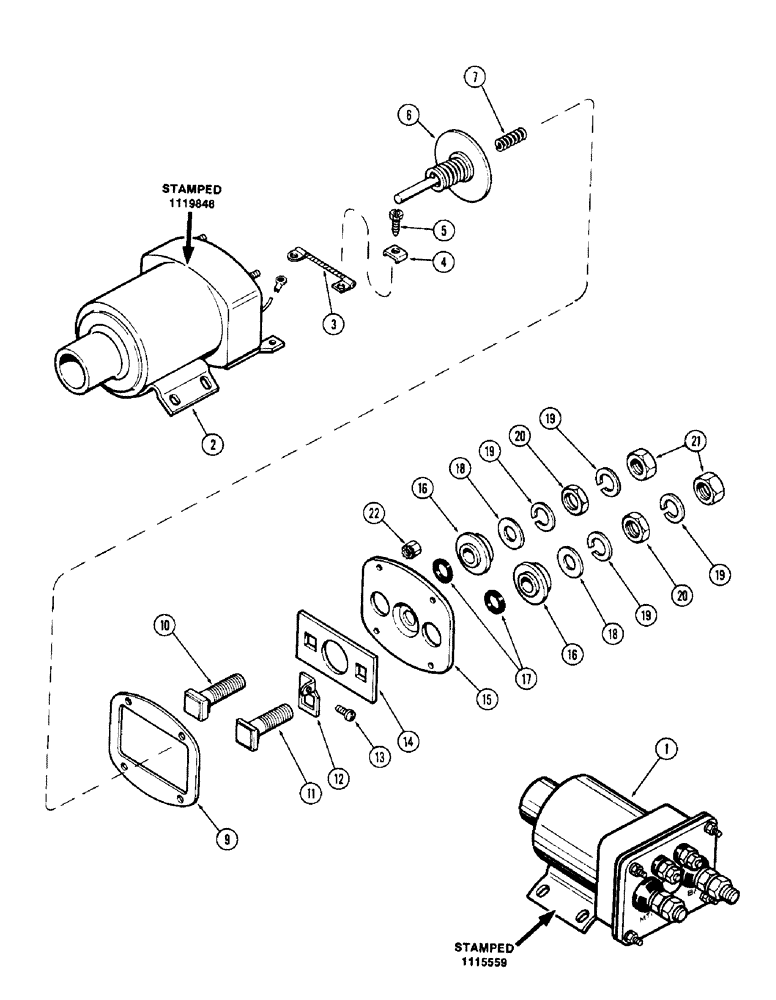

Запчасти Case 780 (138) - SOLENOID (04) - ELECTRICAL SYSTEMS

1

A47899

SOLENOID SWITCH

SOLENOID ASSEMBLY - starter, stamped 1115559 (Serviced as complete assembly only), Includes: Ref. 2 - 22

1шт.

1

A42376

SWITCH

SOLENOID ASSEMBLY - starter, stamped 1119848, Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - with coil

1шт.

3

A42408

ELECTRICAL WIRE

CONNECTOR - ground

1шт.

4

A42407

CLAMP

CLIP - terminal

2шт.

5

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

2шт.

6

D32498

CONTACT

DISC ASSEMBLY - contact

1шт.

7

A42411

VALVE SPRING

SPRING - contact disc return

1шт.

A42412

PLATE

ASSEMBLY, Includes: Ref. 9 - 21

1шт.

9

A42260

GASKET

- solenoid

1шт.

10

A42413

STUD

- battery terminal

1шт.

11

D32506

STUD

- starter terminal

1шт.

12

D29910

SUPPORT

- coil lead

1шт.

13

175-56

SCREW - #10 x 3/16" NC truss head Slotted Truss Hd, #6-32 x 3/16"

1шт.

14

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

15

A42410

PLATE

- terminal

1шт.

16

A43701

BUSHING

- terminal studs, inside

2шт.

17

D32510

BUSHING

- terminal studs, outside

1шт.

18

D30006

WASHER

- terminal studs, flat

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

ASSEMBLY - with Shakeproof washer

4шт.
