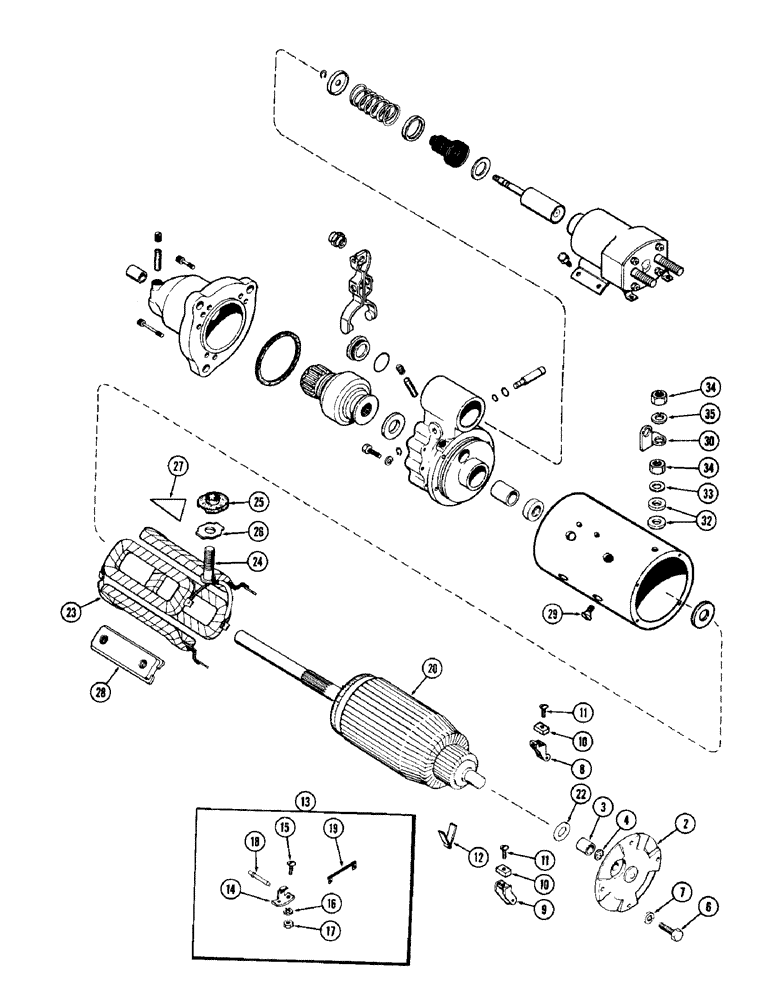

Запчасти Case 780 (134) - L79906 STARTER (04) - ELECTRICAL SYSTEMS

L04213A2R

STARTER ASSEMBLY - (Delco-Remy #1113479) ( replaced L79906 ), Includes: Ref. 2 - 35 and Ref. 40 - 76 on Figure 136

1шт.

2

A45003

FRAME

ASSEMBLY - commutator end, Includes: Ref. 3 and 4

1шт.

3

A45152

BUSHING

1шт.

4

A47133

WICK

- oil (Felt pad)

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

R21590

HOLDER

- brush, insulated

2шт.

9

A40217

HOLDER

- brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - bruch, #8-32 x 13/16" self-tapping

4шт.

12

R15025

SPRING

- brush tension

2шт.

13

A47072

BRUSH, COMMUTATOR

BRUSH SUPPORT KIT, Includes: Ref. 14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

15

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- support to body, #10 x 3/4" NF truss head

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

129-17

NUT,Hex, #10 - 24

NUT - #10 NF hex

2шт.

18

A47260

PIN

- brush holder

1шт.

19

R15030

ELECTRICAL WIRE

LEAD - brush

1шт.

20

A40909

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, commutator end

1шт.

23

A43860

COIL

ASSEMBLY - field, Includes: Ref. 24

1шт.

24

A40896

STUD

- field terminal

1шт.

A41925

BUSHING

ASSEMBLY - inner, field terminal stud insulating, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud, inner

1шт.

26

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

27

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

28

R15115

SHOE

- pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes, 3/8 x 5/8" NF, flat slotted head

8шт.

30

A40894

CONNECTOR, ELEC

CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

32

D30005

INSULATOR

- field stud, outer, 1/2 x 1 x 3/32" (12.7 x 25.4 x 2.38 mm)

2шт.

33

D30006

WASHER

- terminal stud, 1/2 x 7/8 x 1/32" (12.7 x 22.23 x 0.79 mm)

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal stud Jam, 1/2"-13, G5

2шт.

35

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.
