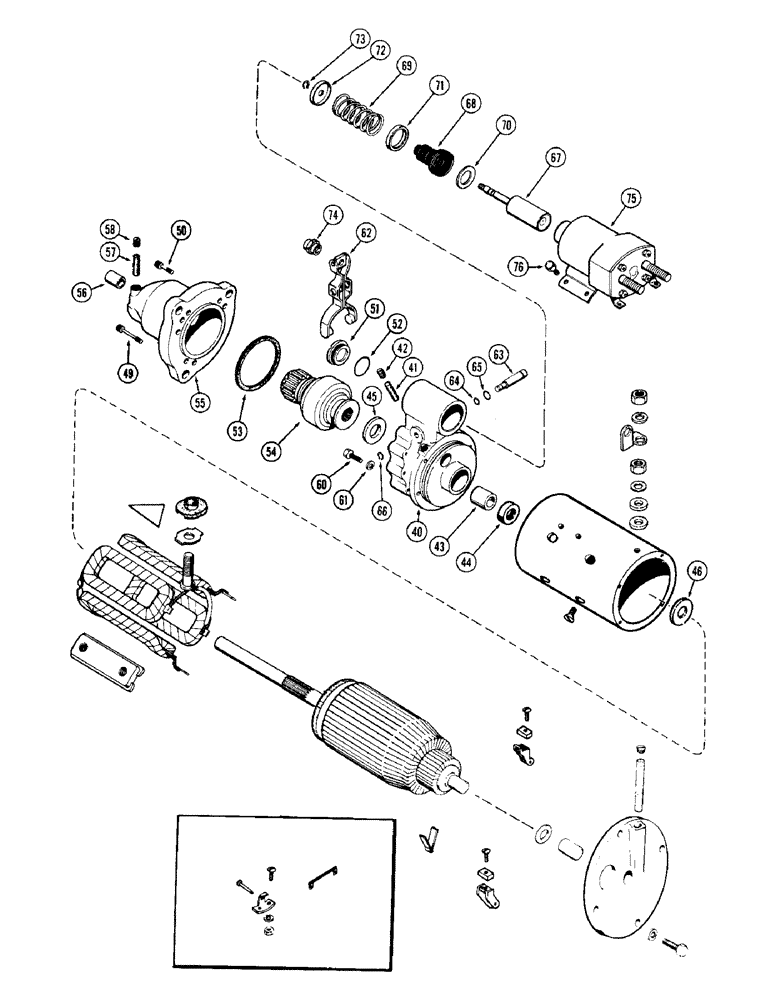

Запчасти Case 780 (132) - R26136 STARTER (04) - ELECTRICAL SYSTEMS

R26136

STARTER MOTOR

STARTER ASSMEBLY - new, Includes: Ref. 40 - 76 and Ref. 2 - 35 on Figure 130

1шт.

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

40

R21579

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref. 41 - 44

1шт.

41

R15023

WICK

WICK - oil

1шт.

42

221-1041

PLUG

PLUG- 1/8" PT slotted headless

1шт.

43

A47848

BUSHING

BUSHING (Replaces R21580)

1шт.

44

R21582

OIL SEAL

SEAL- oil

1шт.

45

R15145

DISC

WASHER - brake

1шт.

46

A40892

WASHER

WASHER - spacer

1шт.

49

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - housing, 5/16 x 1-1/2" NC socket head

1шт.

50

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - housing, 5/16 x 7/8" NC socket head

1шт.

51

R21587

PLUG

PLUG - lever housing

1шт.

52

A41924

GASKET

GASKET - rubber

1шт.

53

R21562

GASKET

GASKET - drive housing

1шт.

54

A47073

DRIVE

DRIVE ASSEMBLY - starter pinion (Replaces A42397)

1шт.

55

A44340

HOUSING

HOUSING ASSEMBLY - pinion drive, Includes: Ref. 56 - 58

1шт.

56

A47257

BUSHING

BUSHING - (Replaces A40893)

1шт.

57

R15023

WICK

WICK - oil

1шт.

58

221-1041

PLUG

PLUG - 1/8" PT slotted headless

1шт.

60

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Drive housing Hex, 1/4"-28 x 1", G5

5шт.

61

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

62

D32547

LEVER

LEVER - drive control

1шт.

63

A42199

PIN

SHAFT - pivot, shift lever

1шт.

64

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - shaft, 15/64 x 3/8 x 5/64" (6.07 x 9.63 x 1.78 mm) (Replaces R21574)

1шт.

65

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

O-RING - shaft, 3/8 x 1/2 x 1/16" (9.52 x 12.7 x 1.59 mm)

1шт.

66

G46146

SNAP RING,#37, Ext

Ring, Snap, , lever shaft #37, Ext

1шт.

67

A42309

PLUNGER

PLUNGER - solenoid

1шт.

68

A42308

BOOT

BOOT - rubber, plunger

1шт.

69

A41242

SPRING

SPRING - plunger

1шт.

70

A41922

WASHER

WASHER - spring seat

1шт.

71

A43380

BACK-UP RING

RETAINER - inner, plunger spring

1шт.

72

A43419

SEAT

RETAINER - outer, plunger spring

1шт.

73

G46146

SNAP RING,#37, Ext

Ring, Snap, , retainer #37, Ext

1шт.

74

A43856

NUT

NUT - 5/16" NF

1шт.

75

REF

INSTRUCTION

SOLENOID ASSEMBLY - (See Figure 138)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid mounting (1/4 x 3/8" NF hex)

4шт.
