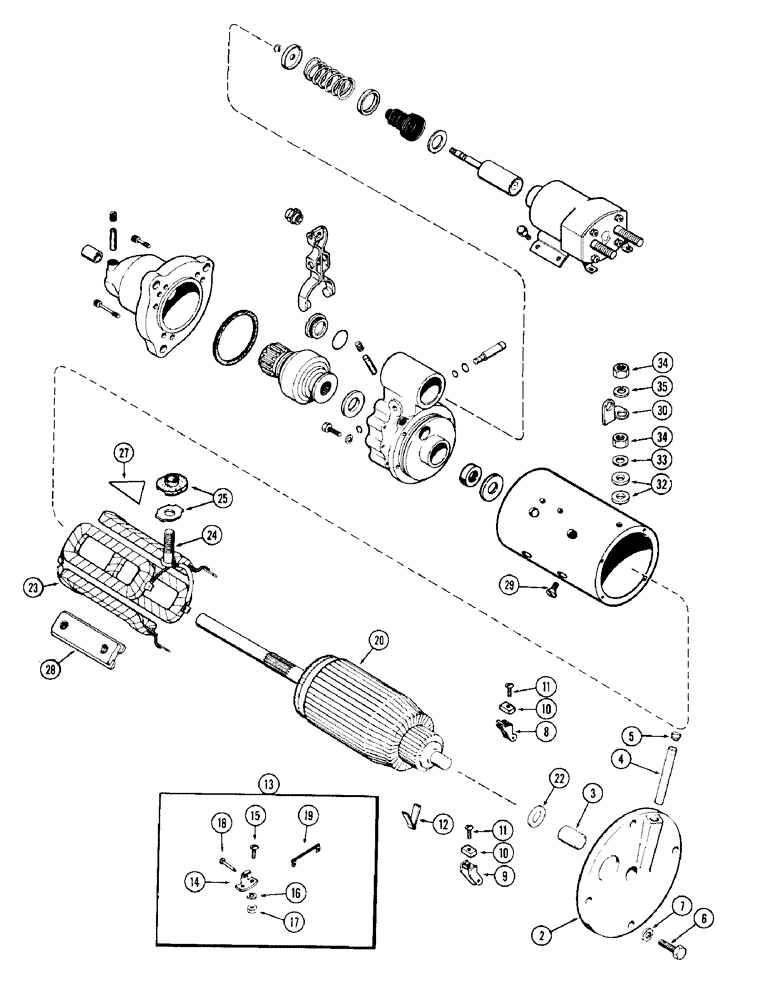

Запчасти Case 780 (130) - R26136 STARTER (04) - ELECTRICAL SYSTEMS

RR46156

REMAN-STARTER

Remanufactured Starter

1шт.

RC46156

CORE-STARTER

Return Number

1шт.

R26136

STARTER MOTOR

STARTER ASSEMBLY - new (Delco #1113403) (Replaces A15485), Includes: Ref. 2 - 35 and Ref. 40 - 76 on Figure 132

1шт.

104213A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104213A1C

CORE-STARTER

Return Number

1шт.

A47498

STARTING MOTOR

STARTER ASSEMBLY - remanufactured, Includes: Ref. 2 - 35 and Ref. 40 - 76 on Figure 132

1шт.

A47500

REMAN-STARTER

Reman For New P/N A47498

1шт.

A47499

CORE-STARTER

Starter Assembly - core number to be used only to return used starter for credit, Includes: Ref. 2 - 35 and Ref. 40 - 76 on Figure 132

1шт.

2

A45003

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

BUSHING - shaft

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG - 1/8" P.T. socket hd

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

R21590

HOLDER

HOLDER - brush, insulated

2шт.

9

A40217

HOLDER

HOLDER - brush, grounded

2шт.

10

R15024

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (#8-32 x 13/16" self-tap incl. lockwasher)

4шт.

12

R15025

SPRING

SPRING - brush tension

2шт.

13

A47072

BRUSH, COMMUTATOR

BRUSH KIT - brush support (Replaces R15029), Includes: Ref. 14 - 19

2шт.

14

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

15

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

SCREW - #10 x 3/4" N.F. truss hd

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

129-17

NUT,Hex, #10 - 24

NUT - #10 N.F. hex

2шт.

18

R15035

PIN

PIN - brush holder

1шт.

19

R15030

ELECTRICAL WIRE

WIRE LEAD - brush

1шт.

20

A40909

ARMATURE

ARMATURE

1шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - spacer

1шт.

23

A43860

COIL

COIL ASSEMBLY - field, Includes: Ref. 24

1шт.

24

A40896

STUD

STUD - field terminal

1шт.

25

A41925

BUSHING

BUSHING PACKAGE - terminal stud

1шт.

27

A41977

RUBBER INSULATOR

INUSLATION - field coil

1шт.

28

R15115

SHOE

SHOE - pole

4шт.

29

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe (3/8 x 5/8" N.F. flat hd.)

8шт.

30

A40894

CONNECTOR, ELEC

CONNECTOR CONNECTOR - field, Serial Range: term.-solenoid

1шт.

32

D30005

INSULATOR

WASHER - insulator

2шт.

33

D30006

WASHER

WASHER - plain

1шт.

34

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, , Terminal Jam, 1/2"-13, G5

2шт.

35

192-113

LOCK WASHER,1/2"

WASHER - lock, lock 1/2"

1шт.
