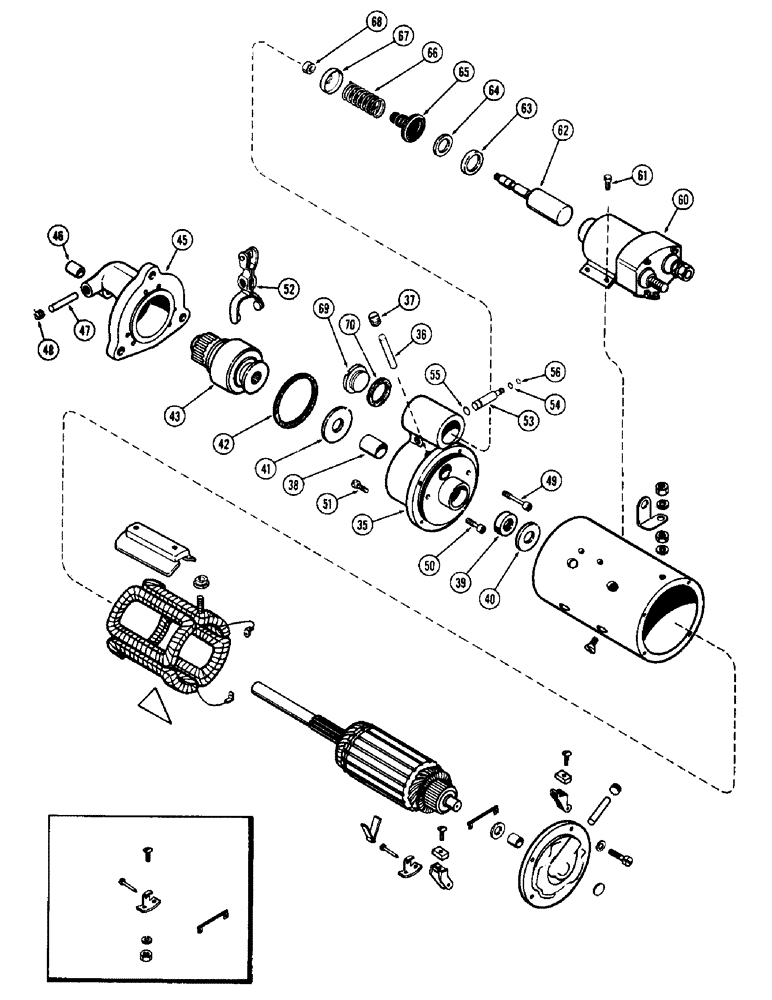

Запчасти Case 780 (128) - A15485 STARTER (04) - ELECTRICAL SYSTEMS

A15485

STARTING MOTOR

STARTER ASSEMBLY -, Includes: Ref. 35 - 70 and 1 - 33 on Figure 126

1шт.

35

R21579

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 36 - 39

1шт.

36

R15023

WICK

- oil

1шт.

37

221-1041

PLUG

- 1/8" PT slotted head

1шт.

38

A47848

BUSHING

- lever housing (Replaces R21580)

1шт.

39

R21582

OIL SEAL

- oil, lever housing

1шт.

40

R21583

WASHER

- spacer, armature

1шт.

41

R15145

DISC

WASHER - brake

1шт.

42

R21562

GASKET

- drive housing to lever housing

1шт.

43

A47073

DRIVE

ASSEMBLY - starter (Replaces A42397)

1шт.

45

A41926

HOUSING

ASSEMBLY - drive end, Includes: Ref. 46 - 48

1шт.

46

A40893

BUSHING

1шт.

47

R15023

WICK

- oil

1шт.

48

221-1041

PLUG

- 1/8" PT slotted head

1шт.

49

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - 5/16" x 1-1/2" NC socket head

1шт.

50

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - 5/16" x 7/8" NC socket head

1шт.

51

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Lever housing to frame Hex, 1/4"-28 x 1", G5

4шт.

52

D32547

LEVER

- shift

1шт.

53

A42199

PIN

SHAFT - shift lever pivot

1шт.

54

A47259

O-RING,0.244" ID x 0.391" OD

- shaft, 15/64 x 3/8 x 5/64" (6.07 x 9.63 x 1.78 mm) (Replaces R21574)

1шт.

55

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

- shaft, 3/8 x 1/2 x 1/16" (9.52 x 12.7 x 1.59 mm)

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , shaft retaining #37, Ext

1шт.

60

REF

INSTRUCTION

SOLENOID ASSEMBLY - (See Figure 138)

1шт.

61

R15139

WASHER

SCREW ASSEMBLY -, Serial Range: solenoid-frame

4шт.

62

A42309

PLUNGER

- solenoid

1шт.

63

A43380

BACK-UP RING

WASHER - retainer

1шт.

64

A42063

RETAINER - spring

1шт.

65

A42308

BOOT

- solenoid

1шт.

66

A41242

SPRING

- return

1шт.

67

A43419

SEAT

RETAINER - spring

1шт.

68

131-31

LOCK NUT,5/16"-24, G8

NUT - adjusting, plunger guide

1шт.

69

R21587

PLUG

- lever housing

1шт.

70

A41924

GASKET

- plug

1шт.
