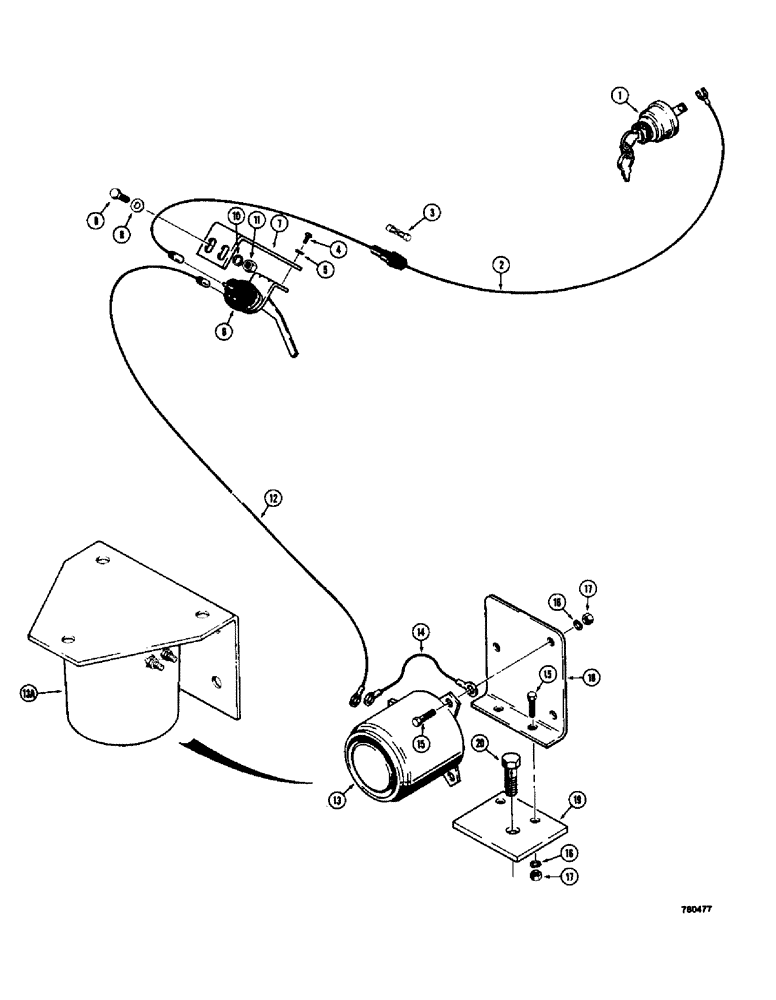

Запчасти Case 780 (124) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

SWITCH AND KEY - electrical, see Figure 108

1шт.

2

D51824

SPARE PART AND FUSE HOLDER - ignition switch to alarm switch

1шт.

3

223-14

FUSE,10 Amp, Type SFE

FUSE - protective, 14 amp SFE

1шт.

4

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

Machine

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

6

A33976

SWITCH

Backup alarm

1шт.

7

D56099

SPARE PART Switch mounting

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

195-21

WASHER,5/16"

Flat

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

Hex

2шт.

12

D56097

SPARE PART Alarm switch to backup alarm

1шт.

13

D51820

ALARM

Backup, points rearward, order D75814

1шт.

13a

D75814

BUZZER

ALARM - backup, points rearward, or downward

1шт.

14

D51905

ELECTRICAL WIRE

WIRE Ground

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

16

92-5

LOCK WASHER,5/16"

5шт.

17

9635082

NUT,5/16" - 18, Gr 5

Hex

5шт.

18

D51906

BRACKET

Alarm mounting

1шт.

19

D56098

SPARE PART PLATE - bracket mounting

1шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.
