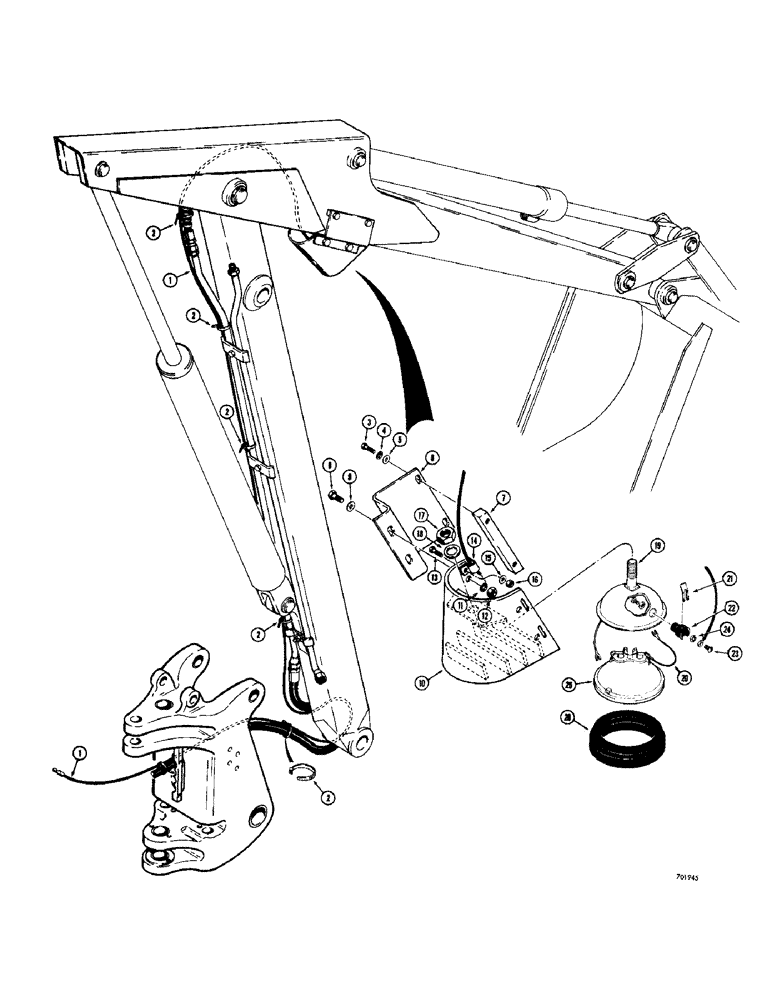

Запчасти Case 780 (118) - BACKHOE DIPPER LIGHT (04) - ELECTRICAL SYSTEMS

1

L48835

HARNESS - wiring, dipper light

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wire harness

6шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

6

L48859

BRACKET - mounting, Serial Range: shield-dipper

2шт.

7

L48860

BRACKET - mounting, Serial Range: welded-dipper

2шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

9

95-8

WASHER,1/2"

flat 1/2"

4шт.

10

D41427

SHIELD

- dipper light

1шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

14

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness to shield

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

1шт.

17

131-354

LOCK NUT,1/2"-13, GA

NUT - hex, self lock, 1/2" - 13 NC

1шт.

18

94-8

WASHER - flat, 1/2"

1шт.

L45149

HEADLIGHT

LIGHT ASSEMBLY - dipper, Includes: Ref. 19 - 26

1шт.

19

NSS

NOT SOLD SEPARAT

BODY AND WIRE - light

1шт.

20

A40033

ELECTRICAL WIRE

WIRE -, Serial Range: light-insulator

1шт.

21

10927

SPRING

- retainer

1шт.

22

B50293

TERMINAL CONNECTOR

- light connection

1шт.

23

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head, #8 - 32 NC x 1/4"

2шт.

24

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

25

L10499

LAMP

LIGHT - sealed beam, 24 volt, #4589

1шт.

26

D31441

RETAINER

-, Serial Range: light-body

1шт.
