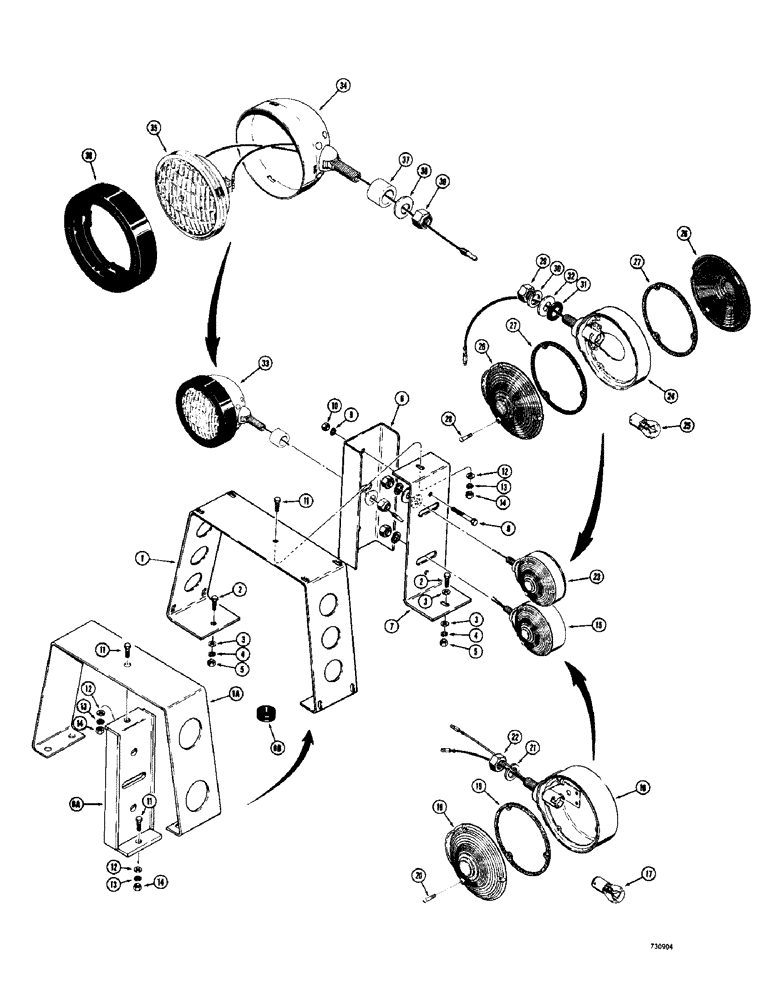

Запчасти Case 780 (116) - REAR LIGHTS AND BRACKETS (04) - ELECTRICAL SYSTEMS

1

L48656

FRAME - mounting, light brackets to fender, early production

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

1a

D58721

BRACKET

FRAME - mounting, rear light, late production

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

6

L48884

BRACKET

- mounting, rear flood light, early production

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

6a

D58713

LARGE PLATE

BRACKET - mounting, light to frame, late production

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

6b

A38599

GROMMET,11/16" ID x 1" Groove Dia

- harness to bracket

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

7

L48883

LARGE PLATE

BRACKET - mounting, turn signal and flasher light, early production

2шт.

Early production light brackets had a two-piece center member. Late production light brackets had a one-piece center member.

1шт.

8

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Early production Hex, 1/4"-20 x 2 1/2", G5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Early production 1/4"

2шт.

10

25-104

NUT,1/4"-20, G5

Early production 1/4"-20, G5

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2-4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

2-4шт.

13

92-6

LOCK WASHER,3/8"

2-4шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2-4шт.

15

L43737

LIGHT

- stop and tail, Includes: Ref. 16 - 22

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - light, stop and tail

1шт.

17

L33194

BULB

- light, 24 volt, #1662

1шт.

L32213

LENS

KIT - replacement, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

LENS - red

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

20

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, #6 - 32 NC x 5/8"

3шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

22

129-125

NUT,1/2"-20, G5

1шт.

23

L43738

INTERIOR LIGHT

LIGHT - turn signal and flasher, Includes: Ref. 24 - 32

2шт.

24

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

25

L32257

BULB

- light, 24 volt, #307

1шт.

L32214

LENS

KIT - replacement, Includes: Ref. 26 - 28

2шт.

26

NSS

NOT SOLD SEPARAT

LENS - signal light

1шт.

27

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

28

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- machine, round head, #6 - 32 NC x 5/8"

3шт.

29

129-125

NUT,1/2"-20, G5

1шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

31

L32256

WASHER

- rubber

1шт.

32

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

33

L43739

LAMP

LIGHT - rear flood, painted yellow, if used, Includes: Ref. 34 and 35

2шт.

33

D71193

LAMP BASE

LIGHT - rear flood, painted black, if used, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

BODY - rear flood light

1шт.

35

A25212

LAMP

LIGHT - sealed beam, 24 volt, #4593

1шт.

36

A25213

RETAINER

- sealed beam, Includes: Ref. 37 - 39

1шт.

37

D37048

BUSHING

- light pivot

1шт.

38

D37049

WASHER

- special

1шт.

39

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex, self lock, 1/2" - 20 NF

1шт.
