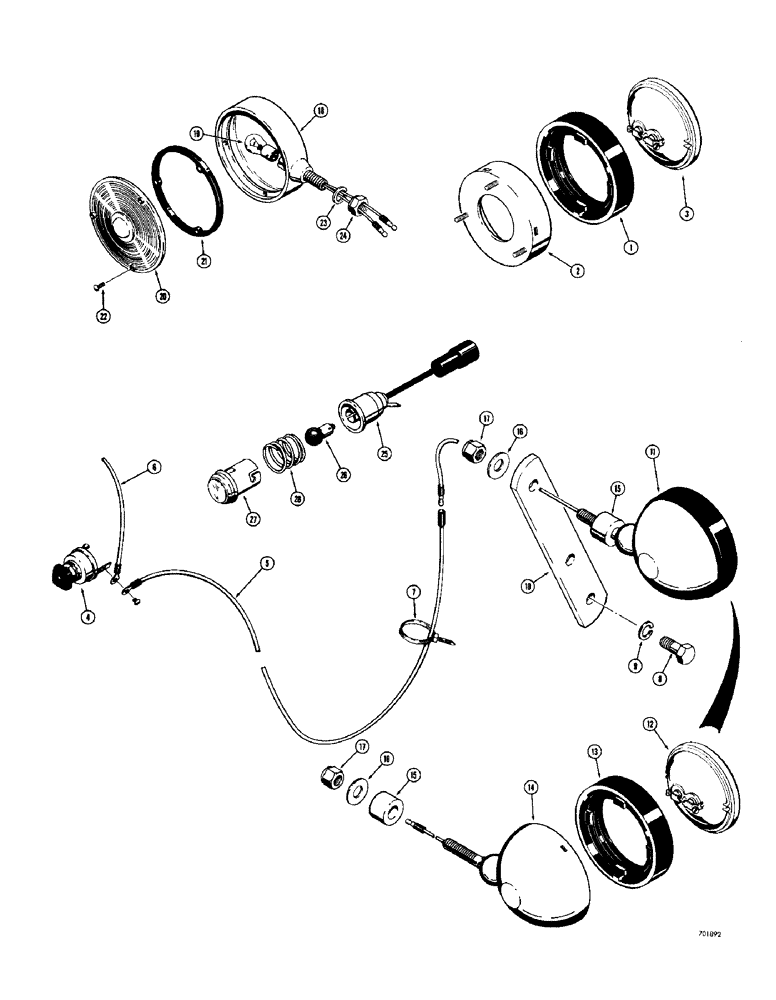

Запчасти Case 780 (114) - LIGHTS, L43743 HEADLIGHT (04) - ELECTRICAL SYSTEMS

L43743

LIGHT

HEADLIGHT ASSEMBLY - front, 24 volt, Includes: Ref. 1 - 3

2шт.

1

A25213

RETAINER

light

1шт.

2

L30510

FRAME

BODY - light

1шт.

3

L10499

LAMP

LIGHT - sealed beam, 24 volt, no. 4589

1шт.

4

L10376

SWITCH

light, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

5

L47987

ELECTRICAL WIRE

switch to right-hand headlight, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

6

L47983

WIRE - switch to left-hand , auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Wire, Auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

4шт.

8

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Auxilary headlights used w/ 2-1/4 cu. yd. loader bucket Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

9

92-8

LOCK WASHER,1/2"

auxilary headlights used w/ 2-1/4 cu. yd. loader bucket 1/2"

4шт.

10

L48212

BRACKET

mounting, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

2шт.

11

L105757

LAMP

HEADLIGHT ASSEMBLY - auxiliary, 24 volt, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket, Includes: Ref. 12 - 17

2шт.

12

A25209

LAMP

LIGHT - head, no. 4880, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

13

A25210

MOUNTING PARTS

RETAINER - auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

14

NSS

NOT SOLD SEPARAT

SHELL - auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

15

D37048

BUSHING

pivot, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

16

D37049

WASHER

special, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

17

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

hex, lock, 1/2" - 20 NF, auxilary headlights used w/ 2-1/4 cu. yd. loader bucket

1шт.

L43737

LIGHT

ASSEMBLY - stop and tail, L43737, Includes: Ref. 18 - 24

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - light, stop and tail, L43737

1шт.

19

L33194

BULB

light, 24 volt, no. 1662, L43737 stop and tail

1шт.

L32213

LENS

KIT - replacement, L43737 stop and tail, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

LENS - red, L43737 stop and tail

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - lens, L43737 stop and tail

1шт.

22

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

machine, no. 6-32 NC x 5/8", L43737 stop and tail

3шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , L43737 Stop and tail 1/2"

1шт.

24

129-125

NUT,1/2"-20, G5

L43737 Stop and tail 1/2"-20, G5

1шт.

L46047

LIGHT

ASSEMBLY - engine warning, L43737 stop and tail, Includes: Ref. 25 and 26

2шт.

25

NSS

NOT SOLD SEPARAT

SOCKET AND WIRE - light, L46047 eng. warning

1шт.

26

S116543

BULB

light, 24 volt, red, if used, L46047 eng. warning, Includes: Ref. 27

1шт.

26

N6510

BULB

24 volt, white, if used, L46047 eng. warning, Includes: Ref. 27

1шт.

27

L32970

light, white, if used, L46047 eng. warning, Includes: Ref. 28

1шт.

27

N6511

red, if used, L46047 eng. warning light, Includes: Ref. 28

1шт.

28

L32971

L46047 eng. warning light

1шт.
