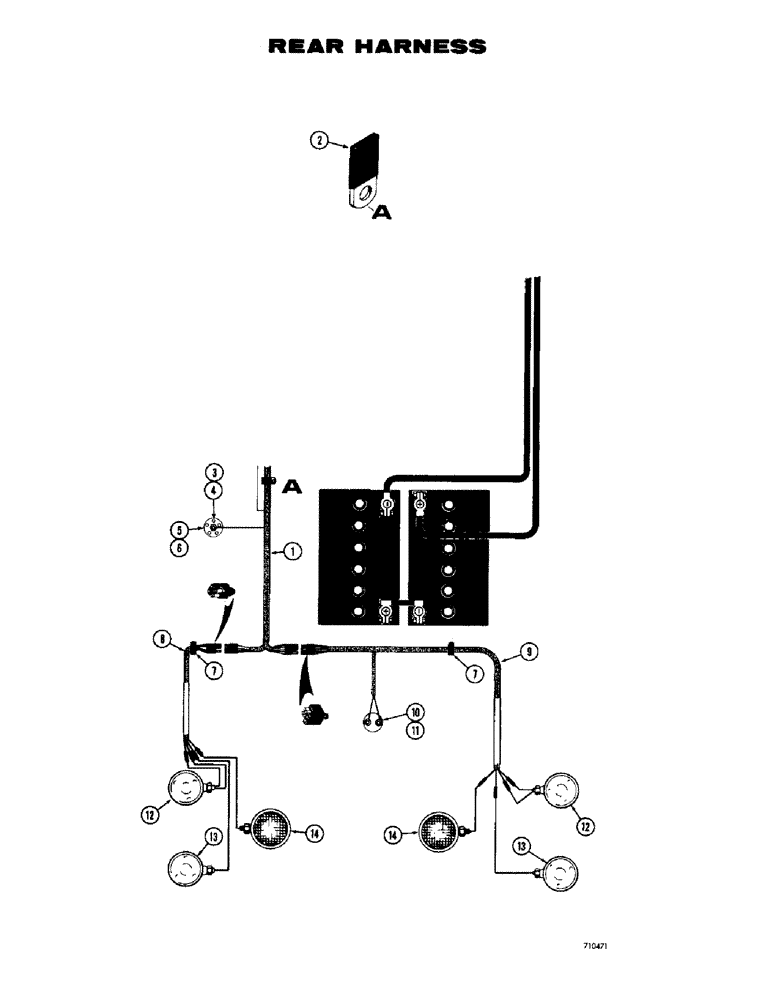

Запчасти Case 780 (112) - ELECTRICAL SYSTEM, REAR WIRING HARNESS (04) - ELECTRICAL SYSTEMS

1

L45155

SPARE PART Wiring, rear main

1шт.

2

A22880

CLIP

CLAMP - harness to fuel tank mount

1шт.

3

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

Machine, round head, #10-24 NC x 7/16"

5шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

5шт.

5

A17219

UNIT

SENDING - fuel gauge

1шт.

6

A11822

GASKET

Sending unit

1шт.

7

A38599

GROMMET,11/16" ID x 1" Groove Dia

Harness, at fender

2шт.

8

L45156

SPARE PART Rear light, LH

1шт.

9

L45157

SPARE PART Rear light, RH

1шт.

10

L46047

LIGHT

Warning, engine, parts list Figure 114

1шт.

11

L11345

GASKET

Warning light

1шт.

12

L43737

LIGHT

Stop and tail, parts list Figure 116

2шт.

13

L43738

INTERIOR LIGHT

Turn signal and flasher, parts list Figure 116

2шт.

14

REF

INSTRUCTION

LIGHT - rear flood, see Figure 116

2шт.
