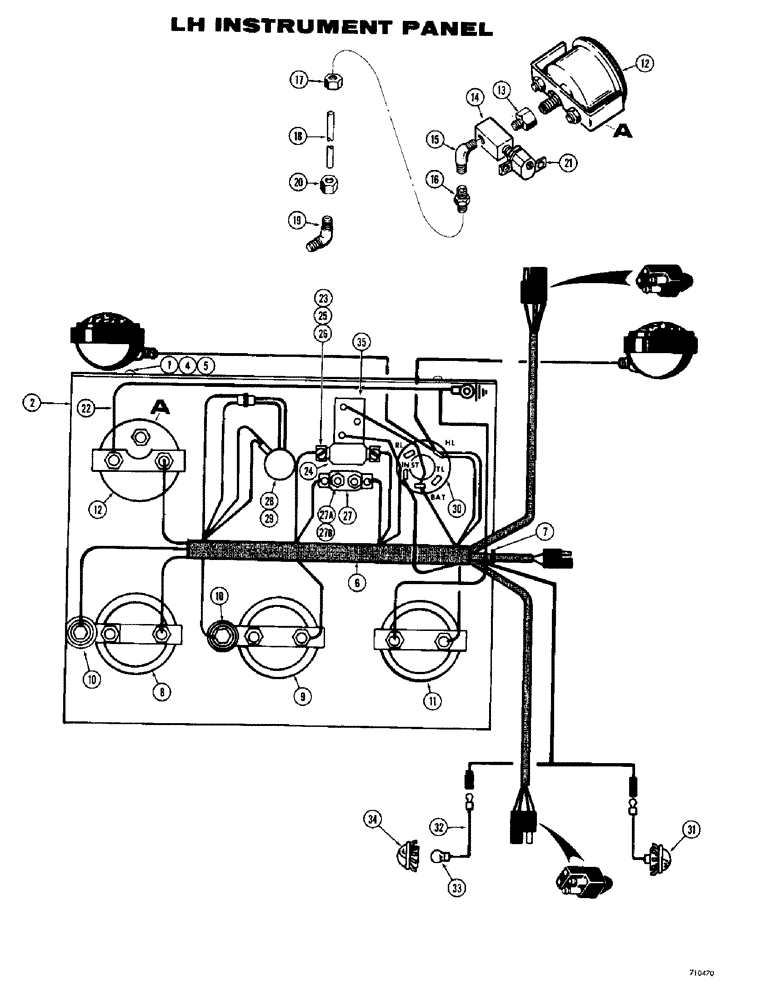

Запчасти Case 780 (110) - ELECTRICAL SYSTEM, LEFT HAND INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- machine, Phillips head, no. 10 - 24 NC x 1/2"

2шт.

2

L19338

PANEL - instrument, left-hand

1шт.

3

205-24

X

PLUG - button, panel, not shown

1шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

5

195-512

WASHER,#10

- flat, no. 10

2шт.

6

L45153

HARNESS - wiring, left-hand panel

1шт.

7

A38599

GROMMET,11/16" ID x 1" Groove Dia

- harness, at console

1шт.

8

A19346

ELECTRICAL GAUGE

GAUGE - engine oil pressure

1шт.

9

A19347

ELECTRICAL GAUGE

GAUGE - engine water temperature, service with D78516 gauge and A21462 sender

1шт.

1 each to main terminals.

1шт.

1 to ignition terminal.

1шт.

Ground 4th wire to location other than gauge.

1шт.

Had 2 terminals. When using the "sub" gauge D78516 (which has 2 main terminals plus 1 to ignition and 1 to sender), wiring from old harness must be done as follows :

1шт.

A19347 water temp. gauge - This gauge

1шт.

10

A19349

RESISTOR

- electrical gauge

2шт.

11

R35203

VOLTMETER

GAUGE - voltmeter, 24 volt

1шт.

12

L12141

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

13

217-1

ADAPTER

- air pressure gauge

1шт.

14

L13273

UNION TEE

FITTING - three way, special, air pressure gauge

1шт.

15

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

FITTING - tube, male, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

FITTING - male

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT - fitting

1шт.

18

L40537

TUBE,0.078" ID x 0.125" OD x 34" L

- air pressure gauge

1шт.

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

FITTING - 90 degree, tube connector, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

FITTING - 90 degree

1шт.

Look like items 15 and 16 on Figure 108.

1шт.

Ref. 19 and 20 - Artwork is incorrect. Should

1шт.

20

222-500

TUBE NUT,5/16" - 24 NPT

NUT - fitting

1шт.

21

L10372

SWITCH

- warning, air pressure

1шт.

22

L47635

WIRE - ground, air pressure gauge

1шт.

23

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, slotted head, no. 10 - 24 NC x 1/2"

2шт.

24

L104033

ALARM

BUZZER - warning, air pressure

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

26

129-17

NUT,Hex, #10 - 24

NUT - hex, no. 10 - 24 NC, plated

2шт.

27

L11342

BREAKER

CIRCUIT BREAKER - electrical

1шт.

27a

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27b

129-37

NUT,#10-32

2шт.

28

L46047

LIGHT

WARNING LIGHT - engine oil pressure or high temperature, parts list Figure 114

1шт.

29

L11345

GASKET

- warning light

1шт.

Later models this part was not used.

1шт.

L11345 warning light gasket - On some

1шт.

30

L10376

SWITCH

- light

1шт.

31

L43830

HEADLIGHT

LIGHT - instrument panel, Includes: Ref. 32 - 34

2шт.

32

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

33

T39535

BULB

- light, panel

1шт.

34

L30467

LENS

- light

1шт.

35

T31464

SWITCH

- rear flood light

1шт.
