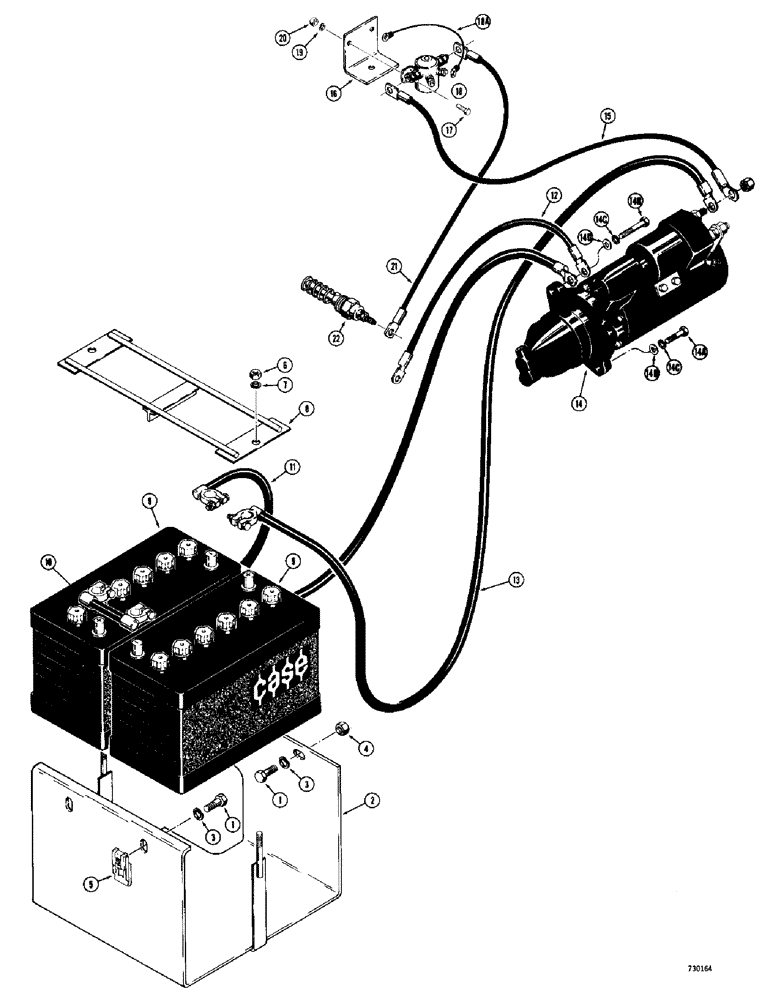

Запчасти Case 780 (106) - ELECTRICAL SYSTEM, BATTERIES, CABLES AND MANIFOLD HEATER (04) - ELECTRICAL SYSTEMS

1

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

2

L40679

TRAY - battery

1шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.

5

131-625

NUT,Ret, 3/8"-16

- Tinnerman, 3/8" - 16 NC

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

L17722

FRAME - battery holddown

1шт.

9

A38411

DRY BATTERY

- 12 volt, service replacement, must be used with A60553 nonspill caps

2шт.

When replacing battery, conventional caps must be removed from new battery and replaced by (6) A60553 nonspill caps. Nonspill caps can be removed from existing battery and reused or new nonspill caps can be ordered.

1шт.

9

A60553

CAP

- battery, nonspill

12шт.

10

L44262

PLASTIC BAG

CABLE - jumper, battery

1шт.

11

L44263

CABLE - ground, Serial Range: battery-engine

1шт.

12

L44298

CABLE - ground, Serial Range: engine-frame

1шт.

13

L44270

CABLE

- battery to starter solenoid

1шт.

14

REF

INSTRUCTION

STARTER - engine, 24 volt, parts list Figures 125A -136

1шт.

14a

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

14b

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2" - 13 NC x 3"

1шт.

14c

92-8

LOCK WASHER,1/2"

3шт.

14d

R24323

WASHER

- special

3шт.

15

A21483

CABLE

- starter solenoid to heater solenoid, if used

1шт.

16

L43847

BRACKET - mounting, solenoid, if used

1шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

D31479

SOLENOID SWITCH

SOLENOID - heater, if used

1шт.

18a

D53874

WIRE - ground, solenoid, if used

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

A21483

CABLE

- solenoid to manifold heater, if used

1шт.

22

A66333

HEATER

- manifold, 24 volt, used on early production tractors only

1шт.
