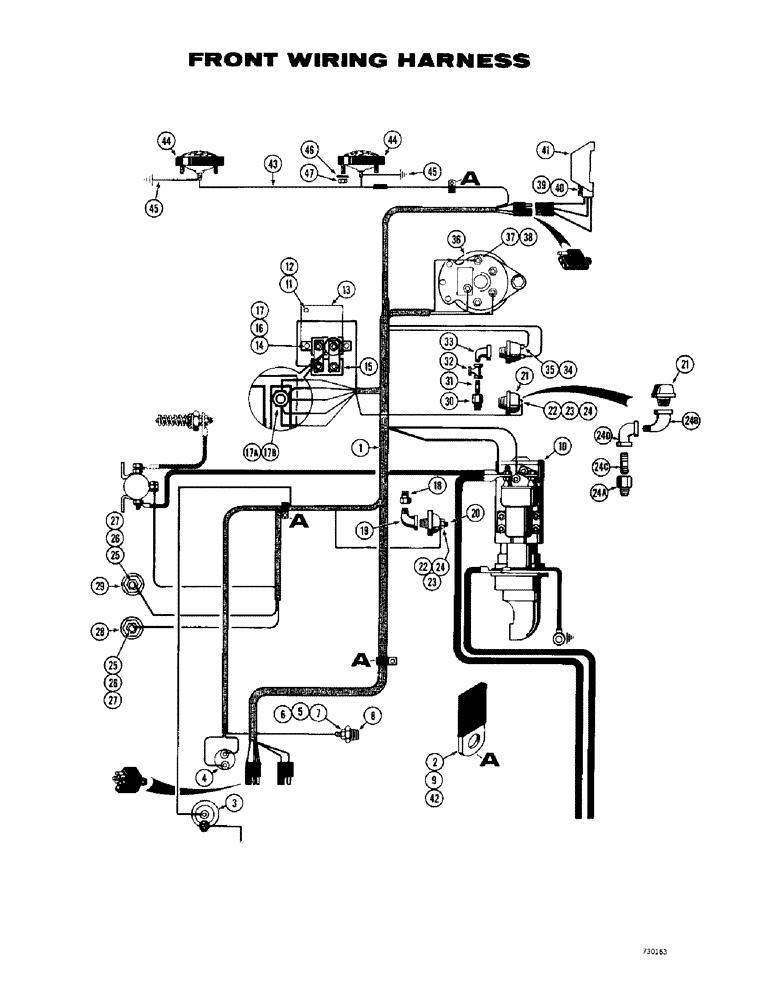

Запчасти Case 780 (102) - ELECTRICAL SYSTEM, FRONT WIRING HARNESS (04) - ELECTRICAL SYSTEMS

1

L45152

WIRE HARNESS

Front electrical, service with D54528 harness and D44005 converter temperature gauge

1шт.

1

D54528

HARNESS

Front electrical

1шт.

2

A22880

CLIP

CLAMP - harness to steering tube bracket

1шт.

3

L21345

SWITCH

SENDING UNIT - stop light

1шт.

4

D78316

SWITCH

Neutral start

1шт.

5

129-37

NUT,#10-32

If used

1шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

If used

1шт.

7

195-512

WASHER,#10

If used

1шт.

8

A13795

SENDER UNIT

SENDER Converter temperature gauge, service with D44005 gauge which does not require sending unit

1шт.

9

A22880

CLIP

CLAMP - harness

1шт.

10

REF

INSTRUCTION

STARTER - engine, 24 volt, parts list Figures 125A-136

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

L42802

BRACKET

Mounting, circuit breaker

1шт.

14

177-97

SCREW,Sl Fil Hd, #10 - 32 x 1/2"

Machine, slotted head, no. 10 - 32 NF x 1/2"

2шт.

15

L11343

BREAKER

CIRCUIT - electrical, 60 amp

1шт.

16

92-3

LOCK WASHER,#10

2шт.

17

129-37

NUT,#10-32

2шт.

17a

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

17b

129-37

NUT,#10-32

2шт.

18

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

FITTING - Reducing

1шт.

19

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

20

A13794

TRANSMITTER

SENDING UNIT - oil pressure indicator light

1шт.

21

A35031

SENDER UNIT

SENDER Engine oil pressure gauge

1шт.

22

129-37

NUT,#10-32

2шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

24

195-512

WASHER,#10

2шт.

24a

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

Reducer

1шт.

24b

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

24c

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

1шт.

24d

221-374

ELBOW,90 Degree, 1/8" NPT

1шт.

25

129-16

NUT,#8-32

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

1шт.

27

195-509

WASHER,3/16"

WASHER - flat, no. 8

1шт.

28

L50238

SWITCH

SENDING UNIT - water temperature indicator light

1шт.

29

A21462

SENDER UNIT

SENDER Water temperature gauge

1шт.

30

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

FITTING - reducing

1шт.

31

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

1шт.

32

221-421

TEE,1/8" NPT

1шт.

33

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street

1шт.

34

D28798

SWITCH

Pressure

1шт.

35

L13821

BOOT

GUARD - rubber, switch

1шт.

36

REF

INSTRUCTION

ALTERNATOR - electrical, 24 volt, parts list Figure 140

1шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

3шт.

38

129-17

NUT,Hex, #10 - 24

3шт.

39

165-20

HEX SOC SCREW,#10 - 24 x 3/8"

3шт.

40

92-3

LOCK WASHER,#10

3шт.

41

R36789

REGULATOR

Voltage, 24 volt

1шт.

42

A22880

CLIP

CLAMP, Harness

1шт.

43

L70179

ELECTRICAL WIRE

WIRE Headlight connecting

1шт.

44

L43743

LIGHT

HEAD - 24 volt, parts list Figure 114

2шт.

45

A15941

ELECTRICAL WIRE

WIRE Ground, Headlight

2шт.

46

193-6

LOCK WASHER,Ext Tooth, #10

6шт.

47

129-17

NUT,Hex, #10 - 24

6шт.
