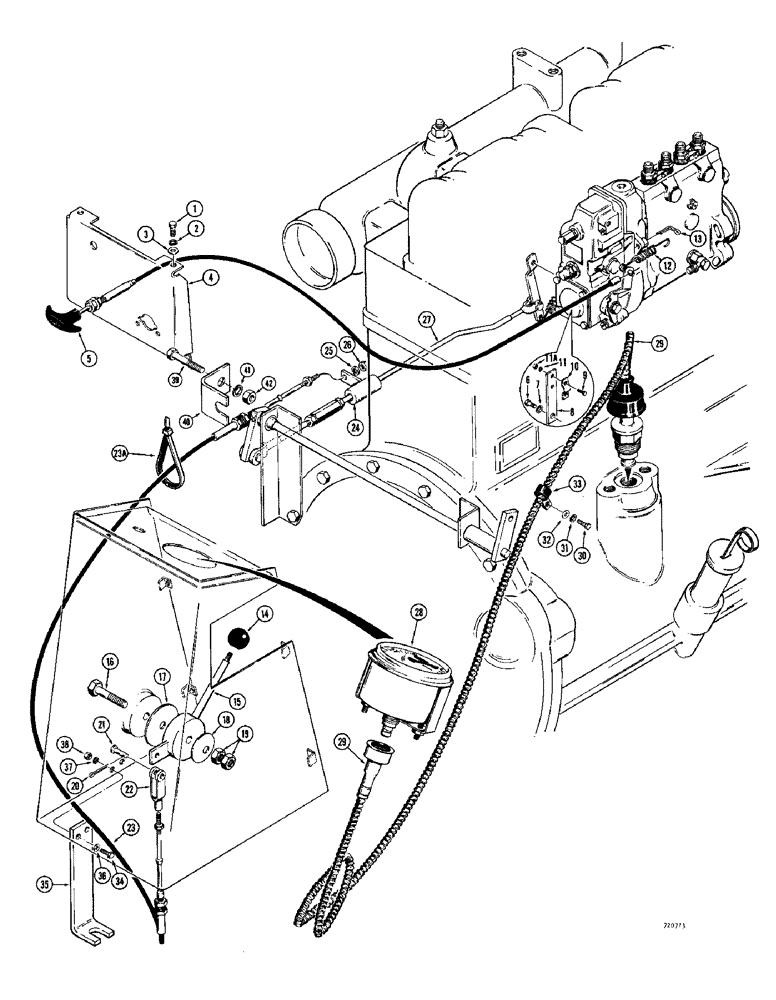

Запчасти Case 780 (098) - HAND THROTTLE, FUEL SHUTOFF AND TACHOMETER (03) - FUEL SYSTEM

1

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

2

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

4

L47233

PANEL - instrument, auxiliary

1шт.

5

D88563

CABLE

- fuel shutoff

1шт.

uses D89677 handle (NSS). Old cable L19266 used L32679 handle which is a service Ref.

1шт.

D88563 fuel shutoff cable - This cable

1шт.

6

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8" - 16 NC x 1/2"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

L40891

SUPPORT

BRACKET - clamp mounting

1шт.

Illustration is not correct. This bracket is not flat.

1шт.

L40891 clamp mtg bracket - Artwork in

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

L60357

CLAMP

- cable

1шт.

nbr 49859 clamp (subs to 515-2379).

1шт.

L60357 cable clamp - Should be part

1шт.

11

92-6

LOCK WASHER,3/8"

2шт.

11a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

L46364

SPRING

- return, fuel shutoff

1шт.

13

L46009

PIN

- return spring

1шт.

14

A19416

BALL

KNOB - backhoe throttle control

1шт.

15

L48753

LEVER - control, backhoe throttle used on models without dipper extension - with twin backhoe control towers, when stock is exhausted, order D56557 lever for service

1шт.

15

D56557

LEVER

- control, backhoe throttle, used on models with or without dipper extension - with twin backhoe control towers

1шт.

15

D58337

LEVER - control, backhoe throttle, used on models with or without dipper extension - with single backhoe control tower

1шт.

16

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2" - 13 NC x 2-1/2", used with L48753 and D58337 levers only

1шт.

16

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Used with D56557 lever only Hex, 1/2"-13 x 2", G5

1шт.

17

R15071

DISC

- friction

1шт.

18

R14771

WASHER

- special

1шт.

19

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

21

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

22

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - cable end, 1/4"

1шт.

23

L42992

CABLE

- throttle control, backhoe

1шт.

23a

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP, CABLE, Throttle cable

1шт.

24

D54699

CONTROL

COLLAR - throttle control, at accelerator rod, before tractor SN. 5500891

1шт.

24

D60194

COLLAR - throttle control, at accelerator rod, tractor SN. 5500891 and after

1шт.

26

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

1шт.

27

L19542

ROD

- throttle control, front

1шт.

rod is connected to in illustration is part of injection pump.

1шт.

Throttle control rod - Bracket which this

1шт.

28

A11190

TACHOMETER

GAUGE - tachometer

1шт.

29

A12430

HOUSING

CABLE - flexible, tachometer drive

1шт.

30

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

31

92-5

LOCK WASHER,5/16"

1шт.

32

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

33

L60357

CLAMP

- cable to engine block

1шт.

34

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

35

L48754

BRACKET - throttle cable support, used on models with twin backhoe control towers

1шт.

36

95-4

WASHER,1/4"

- flat, , if used 1/4"

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

38

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

2шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4", if used

1шт.

40

D55307

BRACKET - throttle cable support, before tractor SN. 5500550

1шт.

40

D57183

BRACKET - throttle cable support, tractor SN. 5500550 thru 5500891

1шт.

41

92-8

LOCK WASHER,1/2"

if used 1/2"

1шт.

42

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

1шт.
