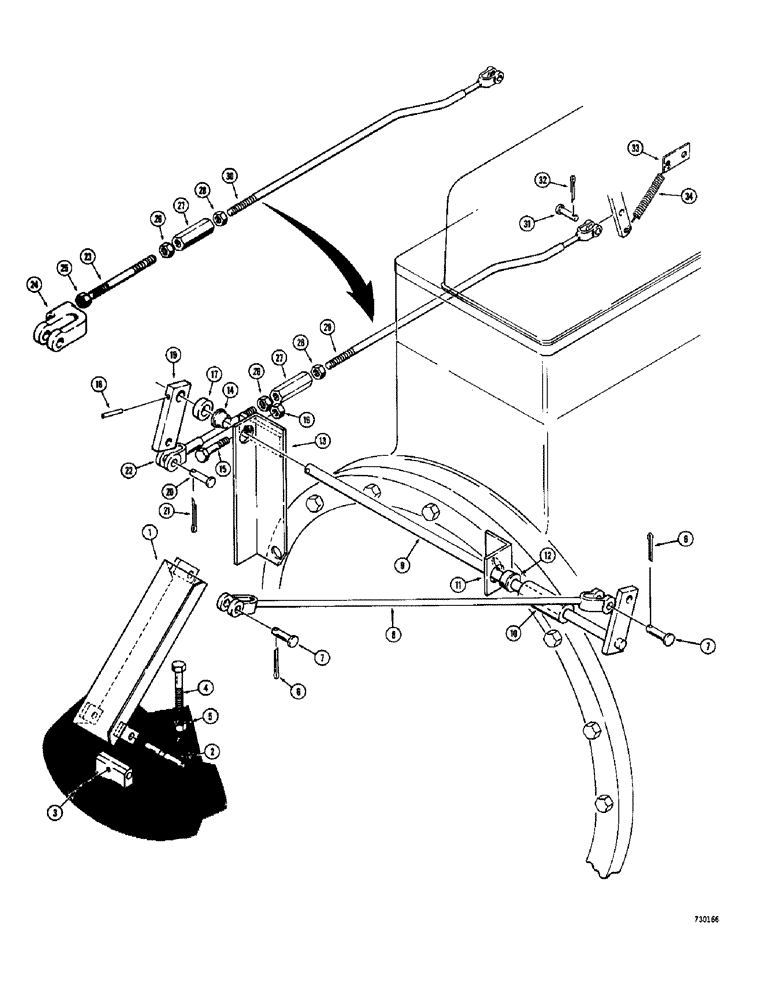

Запчасти Case 780 (096) - FOOT THROTTLE (03) - FUEL SYSTEM

1

L19237

PEDAL - foot accelerator

1шт.

2

L12427

PIN

- accelerator pivot

1шт.

3

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

4

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

STOP BOLT - accelerator pedal, 1/2" - 13 NC x 4"

1шт.

5

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

2шт.

7

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

8

L19241

LINK - accelerator pedal to cross shaft

1шт.

9

L19246

CROSS SHAFT - accelerator, before tractor SN. 5500891

1шт.

9

D60018

CROSS SHAFT - accelerator, tractor SN. 5500891 and after

1шт.

10

L19244

SPACER - cross shaft, R.H., before tractor SN. 5500891 2-9/16" (65 mm) long

1шт.

10

D40463

SPACER

- cross shaft, R.H., tractor SN. 5500891 and after 2-1/2" (64 mm) long

1шт.

11

L23825

BRACKET - shaft mounting, R.H., Includes: Ref. 12

1шт.

12

L23765

BEARING

- shaft

1шт.

13

L19529

BRACKET - shaft mounting, L.H., before tractor SN. 5500891, Includes: Ref. 14

1шт.

13

D60190

BRACKET - shaft mounting, L.H., tractor SN. 5500891 and after, Includes: Ref. 14

1шт.

14

L23765

BEARING

- shaft, used with L19529 and D60190 brackets

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2", engine low idle adjustment

1шт.

16

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

17

L19983

SPACER

- cross shaft, L.H., before tractor SN. 5500891 3/8" (10 mm) long

1шт.

17

D95022

SPACER

- cross shaft, L.H., tractor SN. 5500891 and after, 1-3/4" (45 mm) long

1шт.

18

135-334

PULLEY

PIN - roll, 5/32" x 1"

1шт.

19

L19245

LEVER

- throttle control

1шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

21

132-32

COTTER PIN,3/32" x 1 1/2"

PIN - cotter, 3/32" x 7/8"

1шт.

22

L19541

ROD

- throttle control, rear, before tractor SN. 5500550, order (1) L46253 rod and (1) F22267 turnbuckle

1шт.

23

D57219

ROD - throttle control, rear, tractor SN. 5500550 and after

1шт.

24

L11182

YOKE,3/8" - 24

- offset, throttle rod, 3/8" used with D57219 rod only

1шт.

25

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock, 3/8" - 24 NF used with D57219 rod only

1шт.

26

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, lock, 3/8" - 16 NC, R.H. thread

1шт.

27

F22267

TURNBUCKLE

- throttle adjustment

1шт.

28

129-343

NUT,Jam, 3/8"-16, G5, LH

- hex, lock, 3/8" - 16 NC, L.H. thread

1шт.

29

L19542

ROD

- throttle control, front, before tractor SN. 5500550

1шт.

30

D57156

ROD - throttle control, front, tractor SN. 5500550 - 5500891

1шт.

30

D60212

ROD - throttle control, front, tractor SN. 5500891 and after

1шт.

31

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4"

1шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

33

D70162

BRACKET - return spring

1шт.

34

A37005

SPRING

- accelerator return

1шт.
