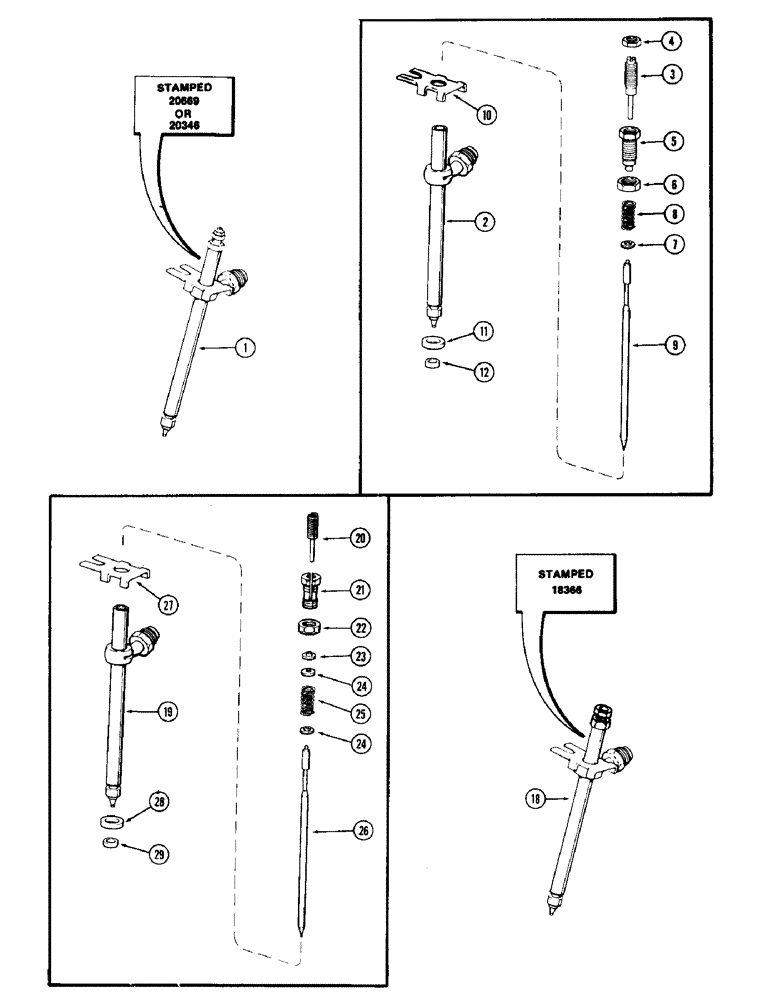

Запчасти Case 780 (090) - INJECTION NOZZLES, (336BD) NATURALLY ASPIRATED ENGINES, ENG SN 2577647 & AFT, PRIOR ENG SN 2504029 (03) - FUEL SYSTEM

1

A140830

INJECTOR ASSY.

NOZZLE ASSEMBLY - injector (3200 P.S.I.) (Stamped 20669 or 20346 on body) (Blue and yellow color code) (Replaces A64439), Includes: Ref. 2 - 12

4шт.

Whenever a nozzle is removed from the head, A41402 seal and A41403 washer must be replaced before the nozzle is installed back into the head.

1шт.

A140830R

REMAN-INJECT NOZZLE

780 - ENG SN 2577647 & AFT, PRIOR ENG SN 2504029

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A44369

SEAT

- pressure spring

1шт.

8

A43733

SPRING

- pressure adjusting (Red color code)

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A41768

PLATE

- nozzle locating

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

18

A59092

NOZZLE INJECTION

NOZZLE ASSEMBLY - injector (2800 P.S.I.) (Stamped 18366 on body) (White color code) (Order A140830), Includes: Ref. 19 - 29

4шт.

Whenever a nozzle is removed from the head, A41402 seal and A41403 washer must be replaced before the nozzle is installed back into the head.

1шт.

A140830R

REMAN-INJECT NOZZLE

780 (ENG SN 2577647 & AFT, PRIOR ENG SN 2504029), Reman for new PN A59092

4шт.

A140830C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

20

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting

1шт.

21

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting

1шт.

22

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

23

A41407

WASHER

- ball

1шт.

24

A44369

SEAT

- pressure spring (Replaces A41401)

2шт.

25

A41444

VALVE SPRING

SPRING - pressure adjusting (Without color code)

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

27

A41768

PLATE

- nozzle locating

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
