Запчасти Case 780 (088) - INJECTION NOZZLES, (336BDT) TURBOCHARGED ENGINES, ENGINE SN 2577647 & AFT, PRIOR ENG SN 2577647 (03) - FUEL SYSTEM

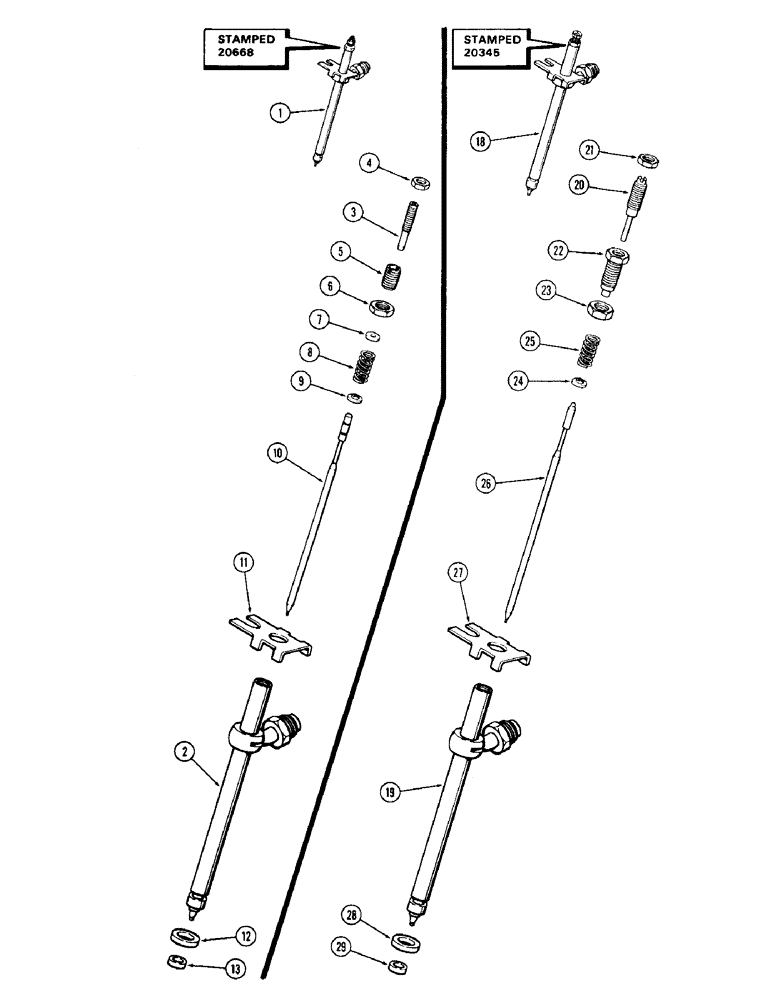

Схема запчастей Case 780 - (088) - INJECTION NOZZLES, (336BDT) TURBOCHARGED ENGINES, ENGINE SN 2577647 & AFT, PRIOR ENG SN 2577647 (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20668 on body) (Red color code), Includes: Ref. 2 - 13

4шт.

Whenever a nozzle is removed from the head, A41402 and A41403 washer must be replaced before the nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

780 ENGINE SN 2577647 & AFT, PRIOR ENG SN 2577647

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

NLS

NO LONGER SERVICED

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- pressure adjusting (Green color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

18

A62809

NOZZLE CAP

NOZZLE ASSEMBLY - injection (Stamped 20345 on body) (Red color code) (Order A138322), Includes: Ref. 19 - 29

4шт.

Whenever a nozzle is removed from the head, A41402 and A41403 washer must be replaced before the nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

780 ENGINE SN 2577647 & AFT, PRIOR ENG SN 2577647 REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

20

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

21

A43602

NUT

- lock, lift adjusting screw

1шт.

22

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

23

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

24

A44369

SEAT

- pressure spring, lower

1шт.

25

A43601

SPRING

- pressure adjusting (Brown color code)

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

27

A41768

PLATE

- nozzle locating

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

Выбрано товаров: 31
