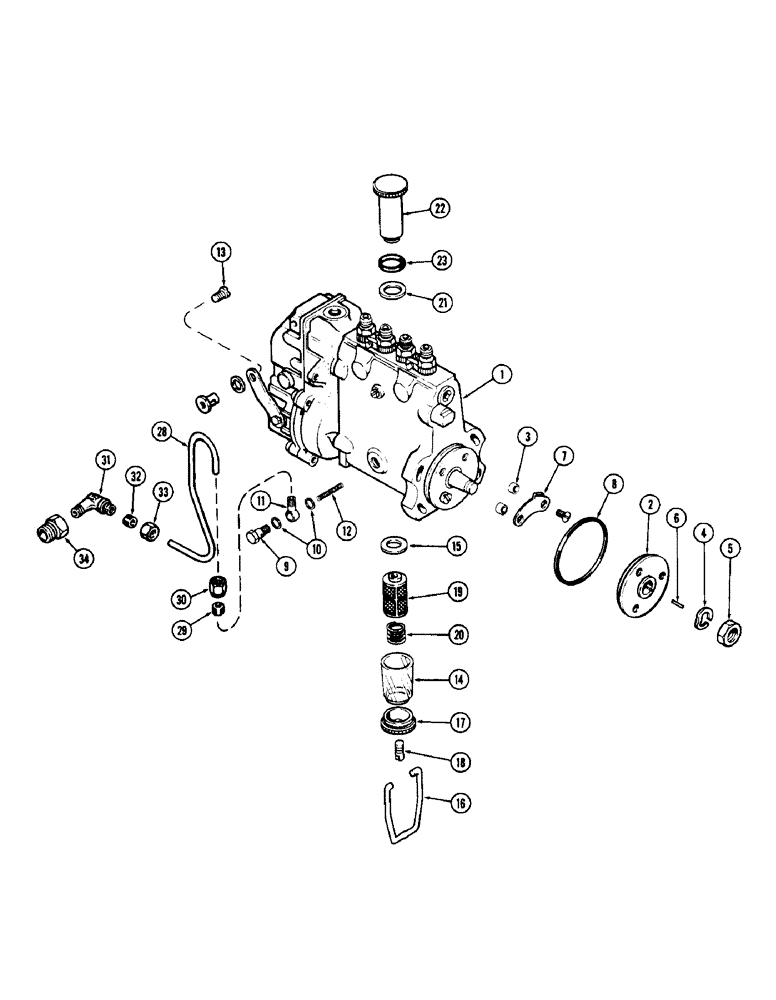

Запчасти Case 780 (086) - FUEL INJECTION PUMP, 336BD NATURALLY ASPIRATED ENGINES (03) - FUEL SYSTEM

1

A64243

PUMP ASSEMBLY - fuel injection (2200 RPM) (Bosch #PES4A85C4201LS2263) (Governor #EP/RSV375-1100A28) (Engine serial no. 2332394 and after), Includes: Ref. 2 - 23

1шт.

1

A62325

PUMP

ASSEMBLY - fuel injection (2200 RPM) (Bosch #PES4A85C420LS2263) (Governor #EP/RSV300-100A) (Prior to engine serial no. 2332394) (Order 1-A136901, 1-A138003 and 1-222-42), Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive (With 1/8" keyway)

1шт.

3

A41855

BUSHING

SPACER - hub

2шт.

4

A42312

LOCK WASHER

- lock, hub nut (1/2" ID)

1шт.

5

A42313

NUT

- hub (12 mm threads)

1шт.

6

A20933

KEY

- hub to shaft (1/8" wide)

1шт.

7

A41854

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- pump mounting, 3 x 3-3/16 x 1/8" (76.2 x 80.96 x 3.17 mm)

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- copper, tube fitting

2шт.

11

A25191

FITTING

- banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - pump stop control cable lock

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - retaining

1шт.

18

A43349

STUD

- bailnut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- hand pump (Replaces A44761)

1шт.

28

A59226

TUBE

- oil gallery to injection pump

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - oil tube (In block), Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

34

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8" PT to 1/4" PT

1шт.
