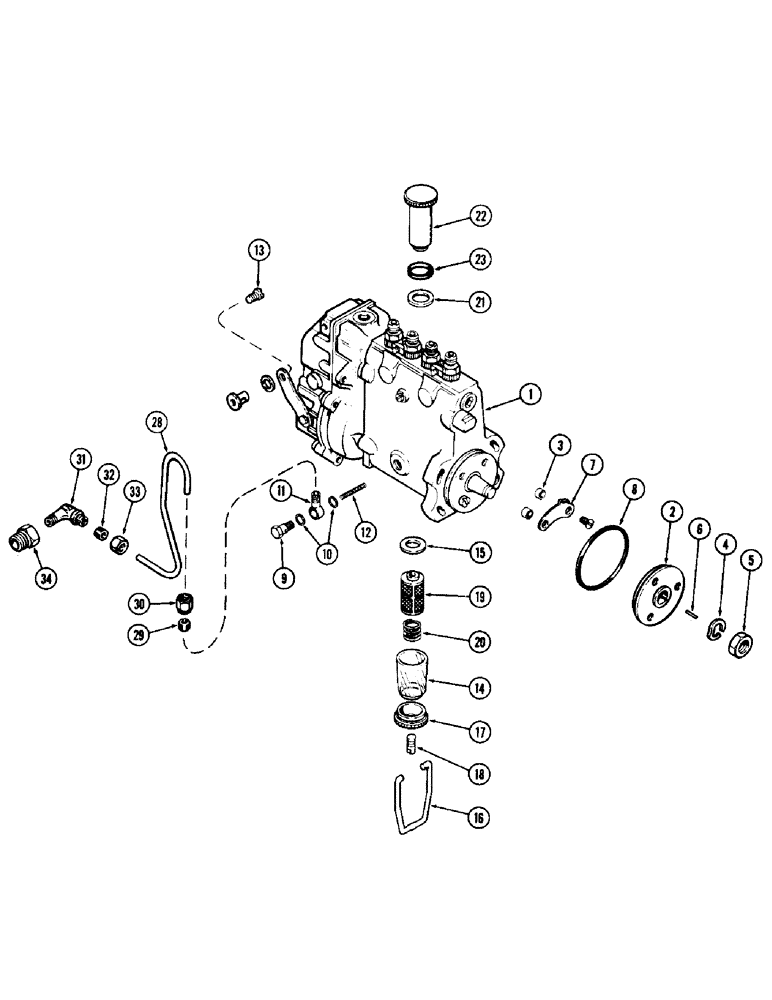

Запчасти Case 780 (084) - INJECTION PUMP, 336BDT TURBOCHARGED ENGINES, WITH LUBE TUBE ON ENG SIDE OF PUMP (03) - FUEL SYSTEM

1

A62326

PUMP

ASSEMBLY - fuel injection (2200 RPM) (Bosch #PES4A0401274004) (Order 1-A138015 pump, 1-A136901 lube tube and 1-222-42 elbow), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive (With 3/16" keyway)

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub (9/16" ID)

1шт.

5

A41852

LOCK NUT

- hub retaining (14 mm threads)

1шт.

6

A41850

KEY

- hub to shaft (3/16" wide)

1шт.

7

A41858

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub, 3 x 3-3/16 x 1/8" (76.2 x 80.96 x 3.17 mm)

1шт.

9

A25192

BANJO BOLT

BOLT - oil line, Serial Range: fitting-pump

1шт.

10

A22381

WASHER

- banjo fitting

2шт.

11

A25191

FITTING

- banjo, oil line

1шт.

12

A25190

SPRING

- fitting

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - lock, pump stop control cable

1шт.

14

A43347

BOWL

- filter (Glass)

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl hanger

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut lock and adjustment

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element tension

1шт.

21

A43351

SEAL

- hand primer (Copper)

2шт.

22

A43343

CARTRIDGE

PRIMER ASSEMBLY - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- hand pump (Replaces A44761)

1шт.

28

A59226

TUBE

- oil gallery to injection pump

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - oil tube (In block), Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

34

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - 3/8" PT to 1/4" PT

1шт.
