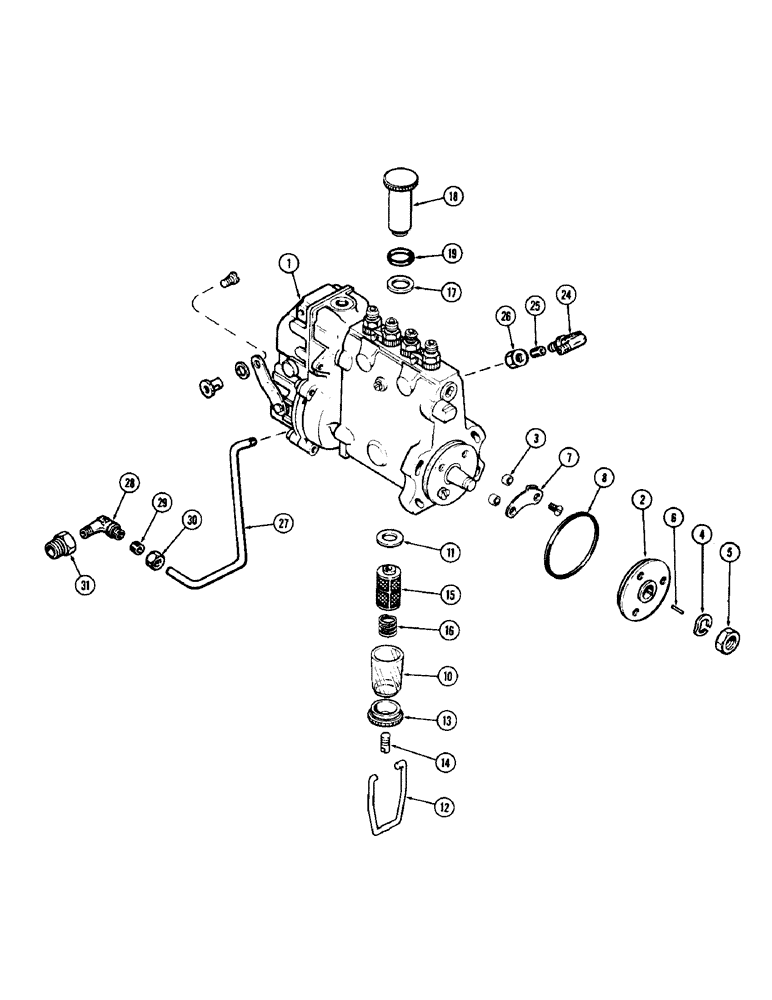

Запчасти Case 780 (082) - INJECTION PUMP, 336BDT TURBOCHARGED ENGINES, WITH LUBE TUBE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

1

A154779

PUMP ASSEMBLY - fuel injection, 2200 RPM (Engine serial no. 10186226 and after), Includes: Ref. 2 - 19

1шт.

1

A138015

PUMP

ASSEMBLY - fuel injection, 2200 RPM (Prior to engine serial no. 10186226)

1шт.

2

A41857

HUB

- pump drive (With 3/16" keyway)

1шт.

3

A41859

BUSHING

SPACER - hub

2шт.

4

A41851

LOCK WASHER

- lock, hub nut (9/16" ID)

1шт.

5

A41852

LOCK NUT

- hub retaining (14 mm threads)

1шт.

6

A41850

KEY

- hub to shaft (3/16" wide)

1шт.

7

A41858

INDICATOR

POINTER - hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- hub, 3 x 3-3/16 x 1/8" (76.2 x 80.96 x 3.17 mm)

1шт.

10

A43347

BOWL

- filter (Glass)

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl hanger

1шт.

13

A43348

NUT

BAILNUT - bowl seal

1шт.

14

A43349

STUD

- bailnut lock and adjustment

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element tension

1шт.

17

A43351

SEAL

- hand pump

1шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 19

1шт.

19

A45342

GASKET

- hand pump (Replaces A44761)

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 1/8" PT for 1/4" tube, Includes: Ref. 25 and 26

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

27

A136901

TUBE

- oil gallery to injection pump

1шт.

28

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 1/4" PT, for 1/4" tube, Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

31

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer, 3/8" PT to 1/4" PT

1шт.
