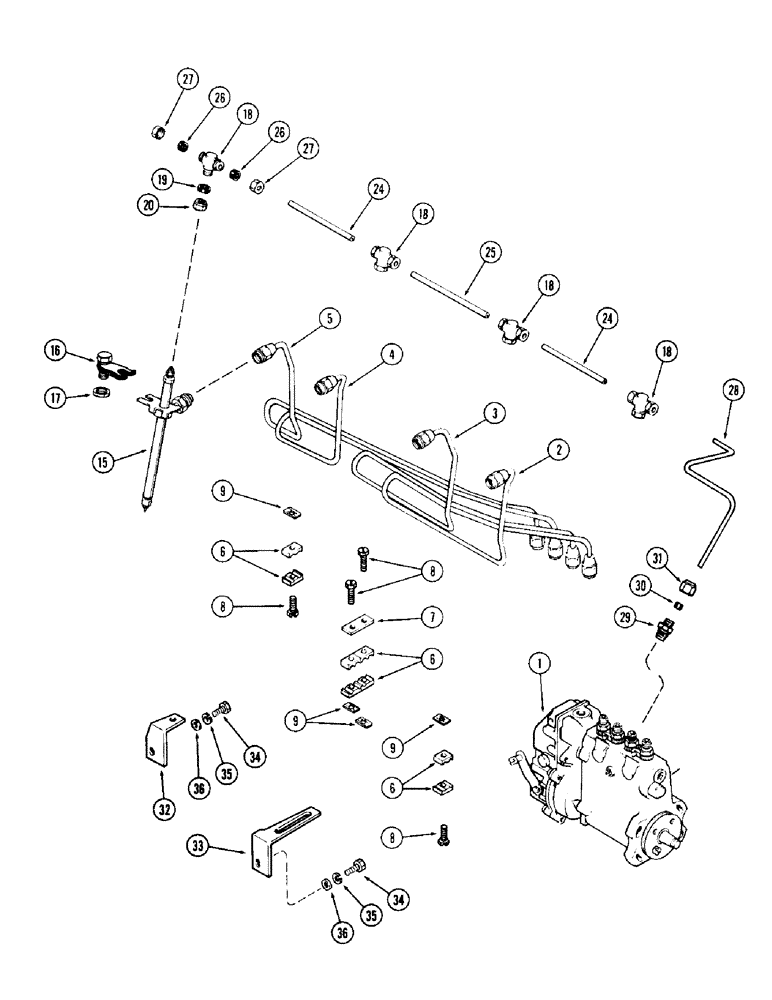

Запчасти Case 780 (076) - FUEL INJECTION SYSTEM, 336BD AND 336BDT DIESEL ENGINES (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figures 82, 84 and 86)

1шт.

2

A58702

TUBE

ASSEMBLY - fuel injection, no. 1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection, no. 2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, no. 3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, no. 4 cylinder

1шт.

6

A58709

BRACKET

CLAMP - injection tubes

8шт.

7

A58710

PLATE

- clamp support

1шт.

8

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- (#10 x 1" NC slotted hex head)

4шт.

9

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

4шт.

15

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection (See Figures 88 and 90)

4шт.

16

A58695

CLAMP

ASSEMBLY - nozzle

4шт.

17

A58696

SPACER

- nozzle clamp

4шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - injector nozzles and leak-off lines

4шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- tee

4шт.

20

A58961

NUT

- tee

4шт.

24

A58965

TUBE

- leak-off, 4-5/8" (117.47 mm) long

2шт.

25

A58964

TUBE

- leak-off, 5-5/8" (142.87 mm) long

1шт.

26

222-102

SLEEVE,1/4" Tube

8шт.

27

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

8шт.

28

A58963

TUBE

- leak-off, no. 1, Serial Range: nozzle-valve

1шт.

29

A28098

VALVE

ASSEMBLY - check, leak-off, Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

32

A155452

BRACKET

- injection tubes, rear

1шт.

33

A155451

BRACKET

- injection tubes, front

1шт.

34

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16" (9.52 x 20.64 x 1.59 mm)

2шт.
