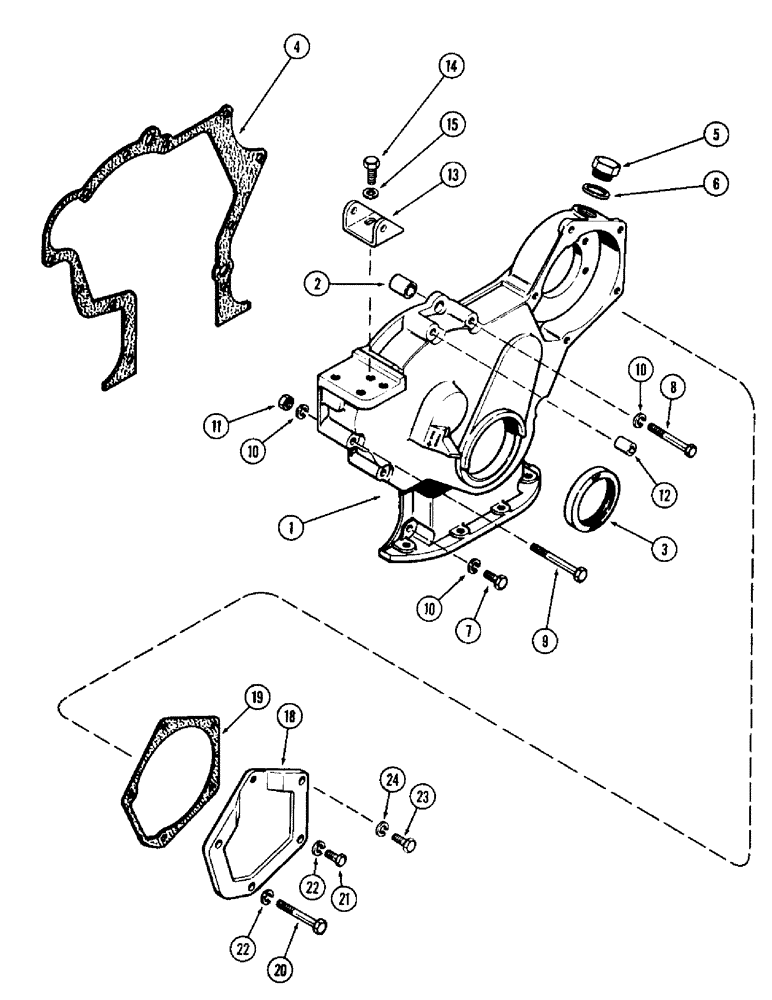

Запчасти Case 780 (074) - TIMING GEAR COVER, (336BD) AND (336BDT) DIESEL ENGINES (03) - FUEL SYSTEM

1

A58609

COVER

ASSEMBLY - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

SLEEVE - cover locating (3/8 x 5/8 x 1")

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2")

1шт.

4

A58612

GASKET

-, Serial Range: cover-block

1шт.

5

A21140

PLUG

- timing window

1шт.

6

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" NC hex)

2шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" NC hex)

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" NC hex)

1шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

12

A19774

BUSHING

SPACER - alternator pry point (3/8" pipe x 1")

1шт.

13

A160391

BRACKET

- alternator mounting (Replaces A38492)

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

18

A61053

COVER

- fuel pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" NC hex)

2шт.

21

A151921

BOLT

- cover (3/8 x 1-1/4" NC hex) (Head drilled for anti-tamper wire) (Replaces A150118)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.
