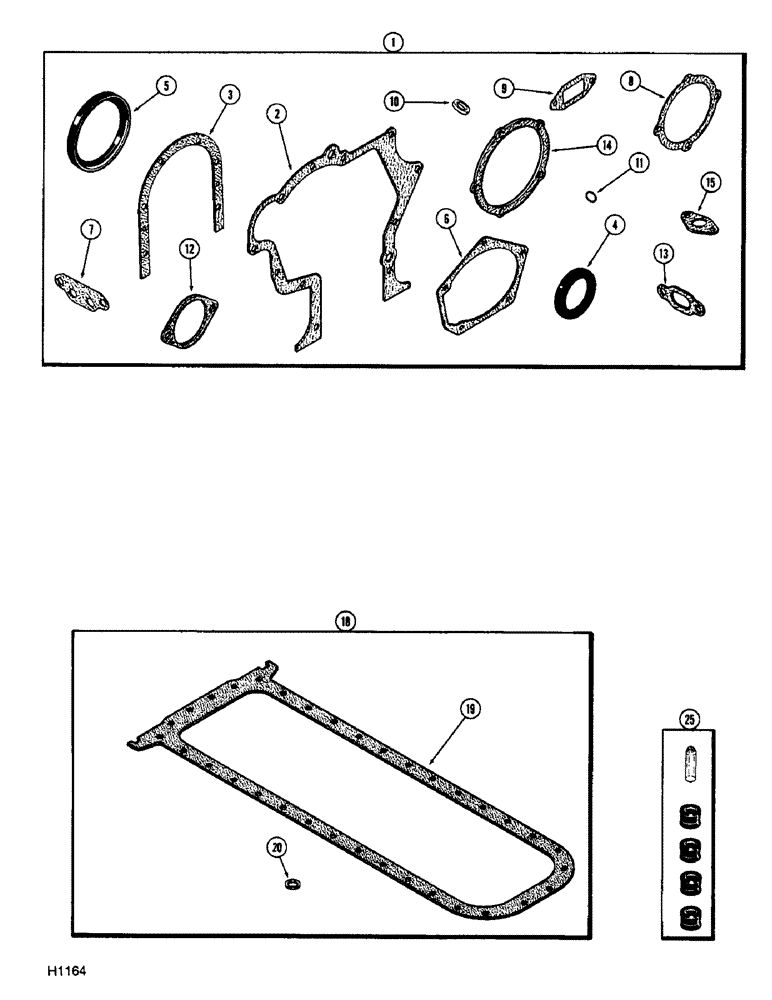

Запчасти Case 780 (073A) - ENGINE GASKET KITS, 336BD AND 336BDT DIESEL ENGINES, CYLINDER BLOCK KIT (02) - ENGINE

1

A44075

GASKET KIT

cylinder block (See note), Includes: Ref. 2 - 15

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order 1-A46367, 1-A44075 and 1-A42221. For complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order 1-A44086, 1-A44075 and 1-A42221.

1шт.

2

A58612

GASKET

timing gear cover

1шт.

3

A32830

GASKET

rear seal retainer

1шт.

4

A62049

OIL SEAL

oil, crankshaft, front

1шт.

5

A62050

OIL SEAL

oil, crankshaft, rear

1шт.

6

A58615

GASKET

fuel pump cover

1шт.

7

A58756

OIL PAN GASKET SET

oil filter base

1шт.

8

A58646

GASKET

water, Serial Range: pump-body

1шт.

9

A58649

GASKET

water pump, Serial Range: body-block

1шт.

10

A58613

SEALING WASHER

timing window plug

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil filter base

3шт.

12

A58617

GASKET

auxiliary drive cover

1шт.

13

A58670

GASKET

oil, Serial Range: cooler-block

1шт.

14

A76656

GASKET

water pump body (Not used)

1шт.

15

A58680

OIL PAN GASKET SET

oil cooler tube to water pump

1шт.

18

A42221

GASKET KIT

GASKET - oil pan (See note), Includes: Ref. 19 and 20

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order 1-A46367, 1-A44075 and 1-A42221. For complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order 1-A44086, 1-A44075 and 1-A42221.

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

20

A27968

RING

drain plug (Copper), oil pan

1шт.

25

M20614

SEAL KIT

SEAL - valves (Includes 4 seals and installation sleeve), oil pan

1шт.
